Installation

© Danfoss | DCS (ms) | 2019.06
The Danfoss IPS 8 should be installed in
accordance with locations recommended in the
Connection locations and Connection points
sections.
The unit is IP55 and can be installed outside,
where it will operate from -10 °C to 43 °C
14 °F to 109 °F) ambient temperature.
Avoid installation in direct sunlight as this
might cause too high ambient temperature.
For ambient temperatures below -10 °C (14 °F)
the air purger shall be installed in a heated and
ventilated area. The unit shall be installed in a
non-ATEX atmosphere as the purger unit is not
explosion proof
The purger unit should be kept in an upright
position all the way from receipt to final
installation.

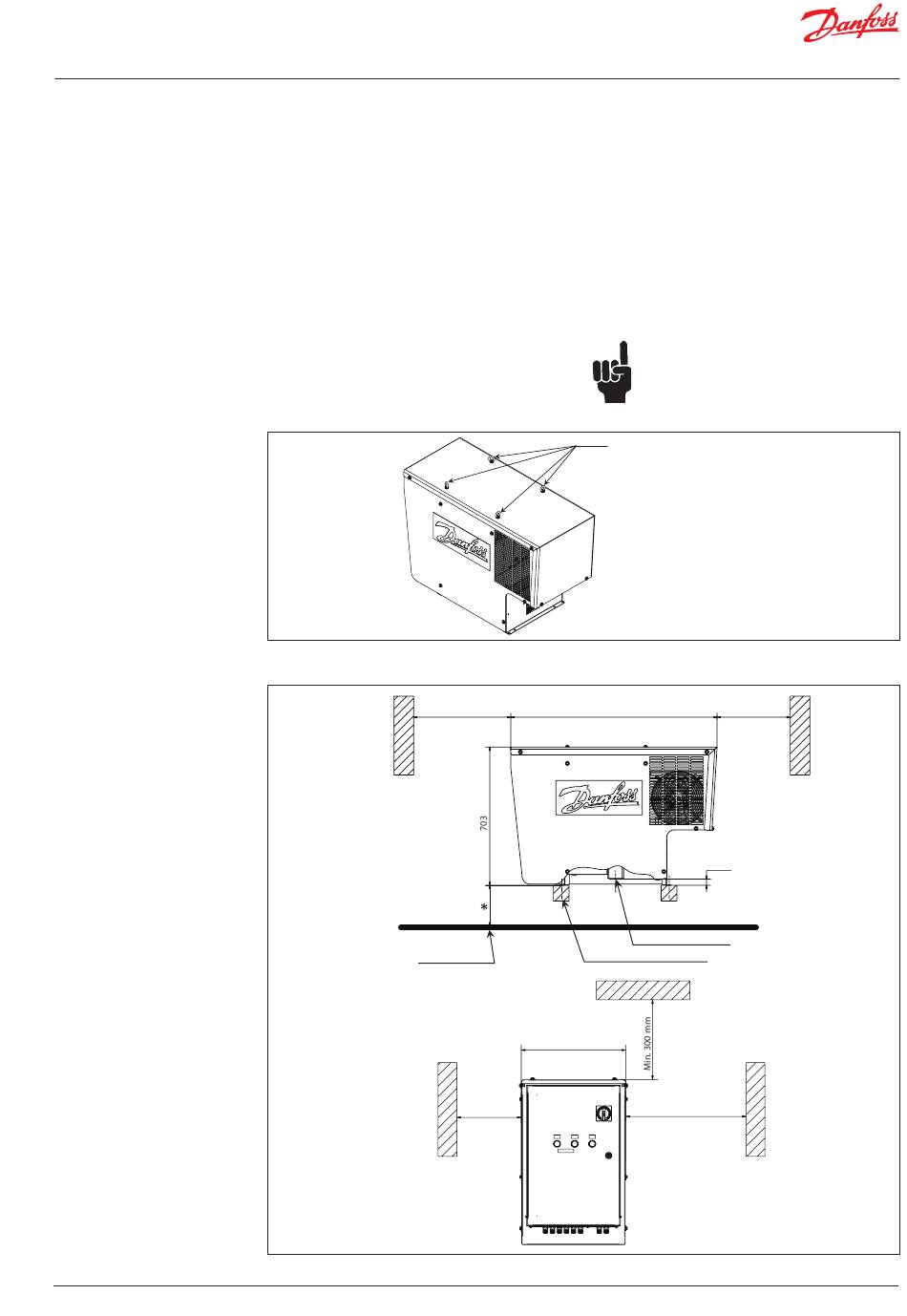

Fig. 11
Min. 900 mm
* For easy access to the main switch
and servicing, the Purger unit shall be
installed between 0,05 to 1,1 m (2 to 43 in)
above service platform level.
Service platform
Fig. 12 Installation dimensions
Use all 4 lifting eyes and appropriate lifting gear
during installation (unit weight 100 kg/220 lbs).
Install the unit on a horizontal construction 0.05
to 1.1 meter (2 to 43 in) above a service
platform with sufficient support and allowing the
purger subframe to be bolted to the support
(see example in fig. 12). Maintain recommended
distances in all directions (fig. 12) to allow fan
cooling and service.
Allways leave the unit 12 hours from finished
installation before first time switching on
Use all 4 lifting eyes and appropriate
lifting gear for lifting the purger unit
1051 mm
Flange for R717 access
Support for 100 kg/ 220 lbs
Service platform
Support for 100 kg/ 220 lbs
446 mm
Min. 300 mm
It is important that the support
construction is level to ensure the
internal liquid trap is properly filled.
Angle to horizontal < 2 degrees
Min. 500 mm
32 mm
Flange for R717 access
Min. 900 mm
