Fourier MultiLogPRO User Manual page 6

1. Sensor
inputs
2.
USB
connection
socket
3. S
erial
connection
socket
4.
Power input
(DC 9–12V)
1. Sensor Inputs
Sensor input/output (I/O) sockets are marked on the MultiLogPRO casing as I/O-1,
I/O-2, I/O-3 and I/O-4. These sockets are used to connect the sensors. Normally, all
four sockets can be used simultaneously.
To connect a sensor to the MultiLogPRO use one of the mini-din cables. Plug one
end of the cable into the data logger - arrow facing up, and the other end into the
sensor - arrow facing down.
If you are using one sensor only connect it to input 1. If you are using two sensors
connect them to inputs 1 and 2, and so on.
In order to connect more than 4 sensors at a time, use Fourier splitter cables (Part
Number DT011), which will enable the connection of up to 8 sensors simultaneously.
When a splitter cable is connected, it must be connected to the socket in the correct
numerical order (e.g. for 5 sensors, connect the splitter cable to I/O-1). One of the
Fourier Systems Ltd.
16 Hamelacha St., POB 11681, Rosh Ha'ayin 48091,
Tel: +972-3-901-4849, Fax: +972-3-901-4999
www.FourierEdu.com
3
th
4
input
input

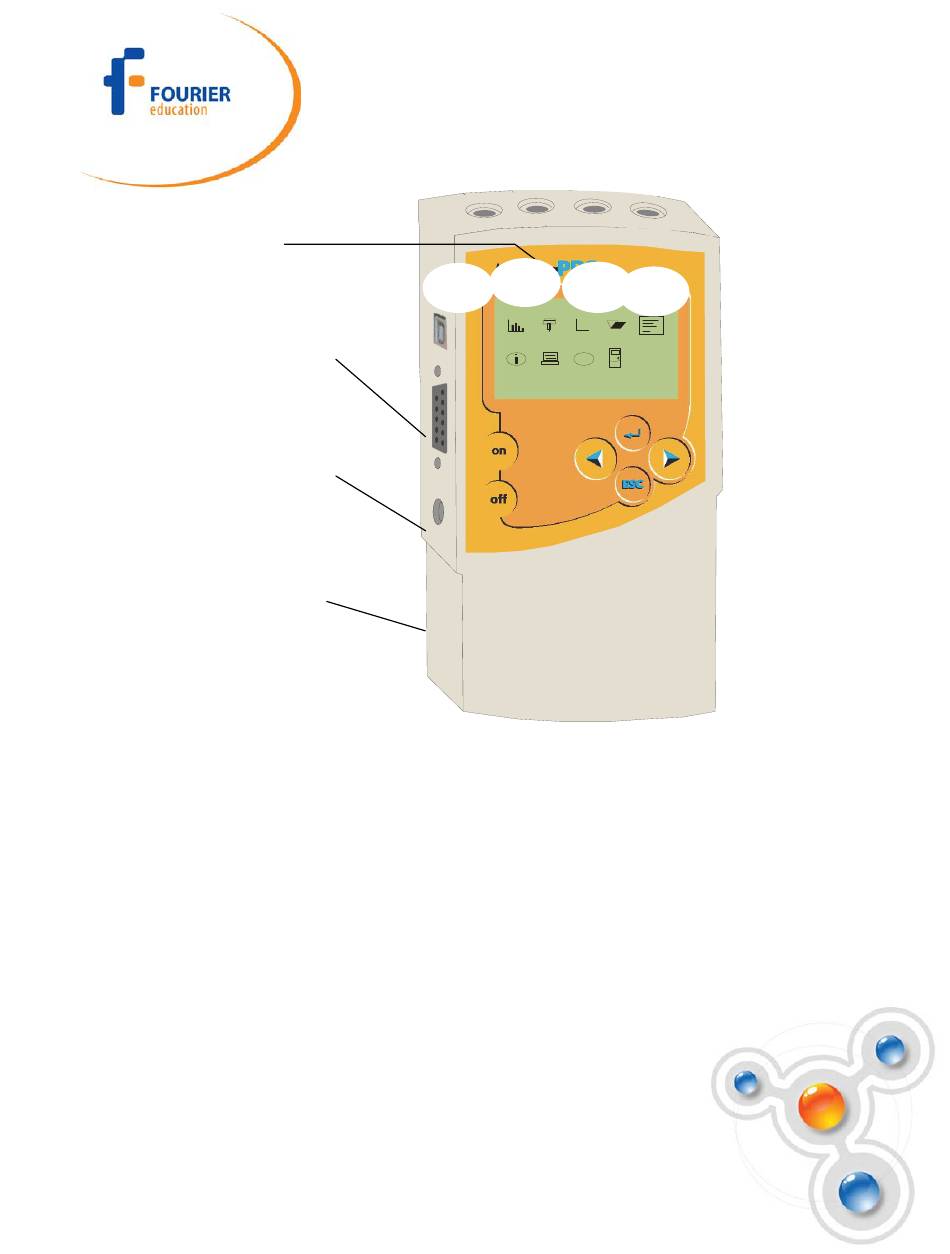

Figure 1: MultiLogPRO external connections
