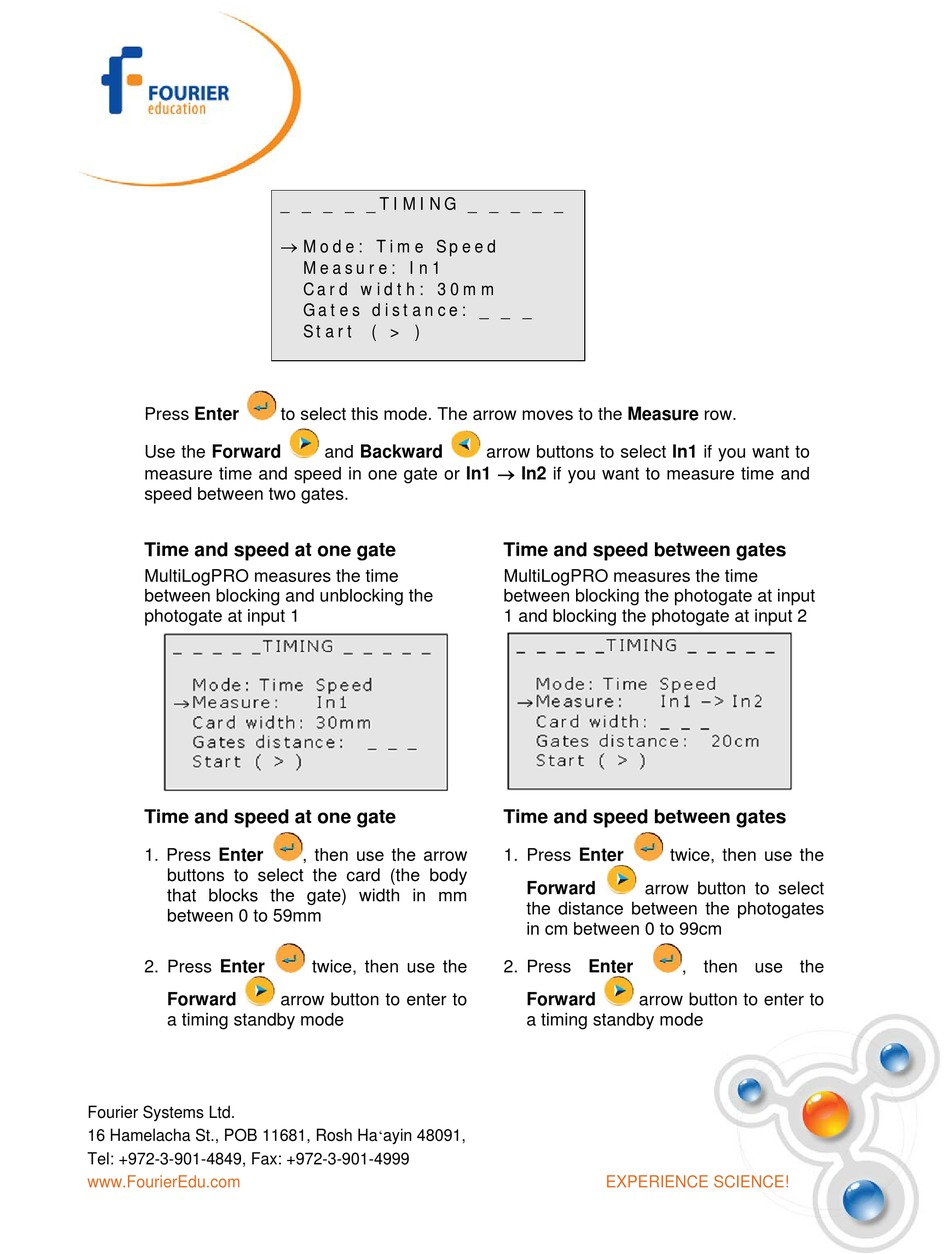

Fourier MultiLogPRO User Manual page 20

Press Enter
Use the Forward
measure time and speed in one gate or In1  In2 if you want to measure time and
speed between two gates.
Time and speed at one gate
MultiLogPRO measures the time
between blocking and unblocking the
photogate at input 1
Time and speed at one gate
1. Press Enter
buttons to select the card (the body
that blocks the gate) width in mm
between 0 to 59mm
2. Press Enter
Forward
a timing standby mode
Fourier Systems Ltd.
16 Hamelacha St., POB 11681, Rosh Ha'ayin 48091,
Tel: +972-3-901-4849, Fax: +972-3-901-4999
www.FourierEdu.com
_ _ _ _ _ T I M I N G _ _ _ _ _
 M o d e : T i m e S p e e d
M e a s u r e : I n 1
C a r d w i d t h : 3 0 m m
G a t e s d i s t a n c e : _ _ _
S t a r t ( > )
to select this mode. The arrow moves to the Measure row.
and Backward
, then use the arrow
twice, then use the
arrow button to enter to
arrow buttons to select In1 if you want to
Time and speed between gates
MultiLogPRO measures the time
between blocking the photogate at input
1 and blocking the photogate at input 2
Time and speed between gates
1. Press Enter
Forward arrow button to select
the distance between the photogates
in cm between 0 to 99cm
2. Press Enter
Forward arrow button to enter to
a timing standby mode
EXPERIENCE SCIENCE!
twice, then use the
, then use the
