M-system M3LU2 Operating Manual page 34

4

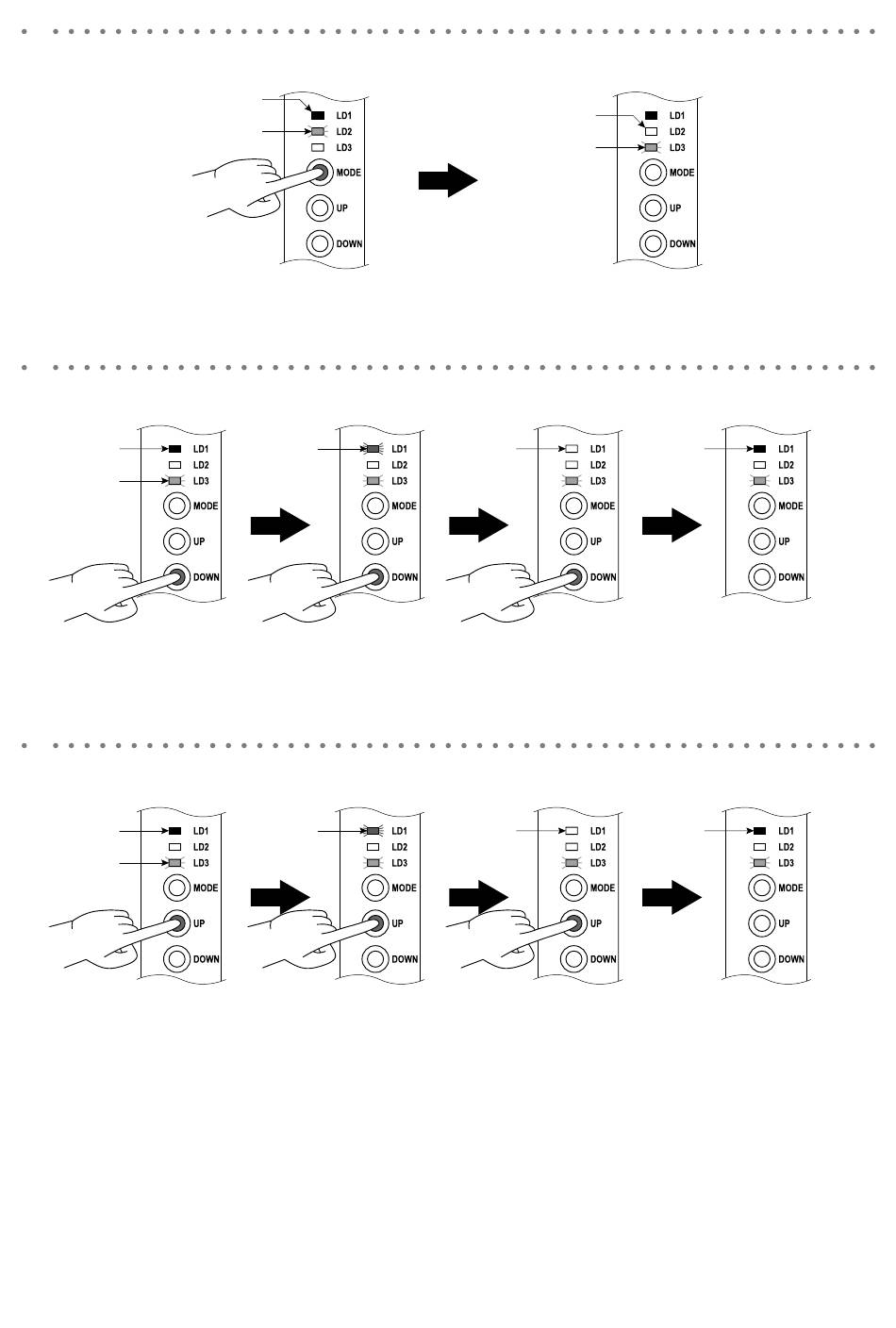

Press MODE button to go on to the Output Ranging Mode.
Red blinking
• Press MODE button once to go on to the Output Ranging Mode.
• The LD2 turns OFF and the LD3 red LED starts blinking indicating the Output Ranging Mode.
5
Increase or decrease the simulated input until the meter shows the desired minimum output level. Hold
down DOWN button until the LD1 turns OFF.
Red ON
Red blinking
• Hold down DOWN button, and the LD1 red LED blinks in approx. 2 sec. and then turns OFF in approx. 2 sec.
• The LD1 turning OFF means completion of 0% output ranging. Hold down DOWN button until the LD1 turns OFF.
• Skip to the next procedure when 0% output ranging is not necessary.
6
Increase or decrease the simulated input until the meter shows the desired maximum output level. Hold
down UP button until the LD1 turns OFF.
Red ON
Red blinking
• Hold down UP button, and the LD1 red LED blinks in approx. 2 sec. and then turns OFF in approx. 2 sec.
• The LD1 turning OFF means completion of 100% output ranging. Hold down UP button until the LD1 turns OFF.
• Skip to the next procedure when 100% output ranging is not necessary.
Red ON
Rapid
red blinking
Approx. 2 sec.
Rapid
red blinking
Approx. 2 sec.
OFF
Red blinking
Press once
OFF
Approx. 2 sec.
0% ouput ranging completed
OFF
Approx. 2 sec.
100% ouput ranging completed
M3LU2 OPERATING MANUAL EM-2653-B Rev.0
Red ON
Release button
Red ON
Release button
34
