10.2 INPUT & OUTPUT RANGING
After the DIP switch setting is complete, set up the precise input and output range using the front control buttons. Be sure
that the front control button function is enabled with the DIP switch setting (SW2-6 OFF).

10.2.1 OUTLINE OF I/O RANGING

■ PREPARATION
Mount the DIP-SW-configured M3LU2 on to a DIN rail.
Connect the M3LU2 to a simulator and a multimeter and to a power source according to the terminal connections.
■ INPUT RANGING
• In the Input Ranging Mode, apply the desired minimum input level from the simulator and hold down DOWN button
until the LD1 blinks and then turns OFF.
• Then apply the desired maximum input level and hold down UP button until the LD1 blinks and then turns OFF.

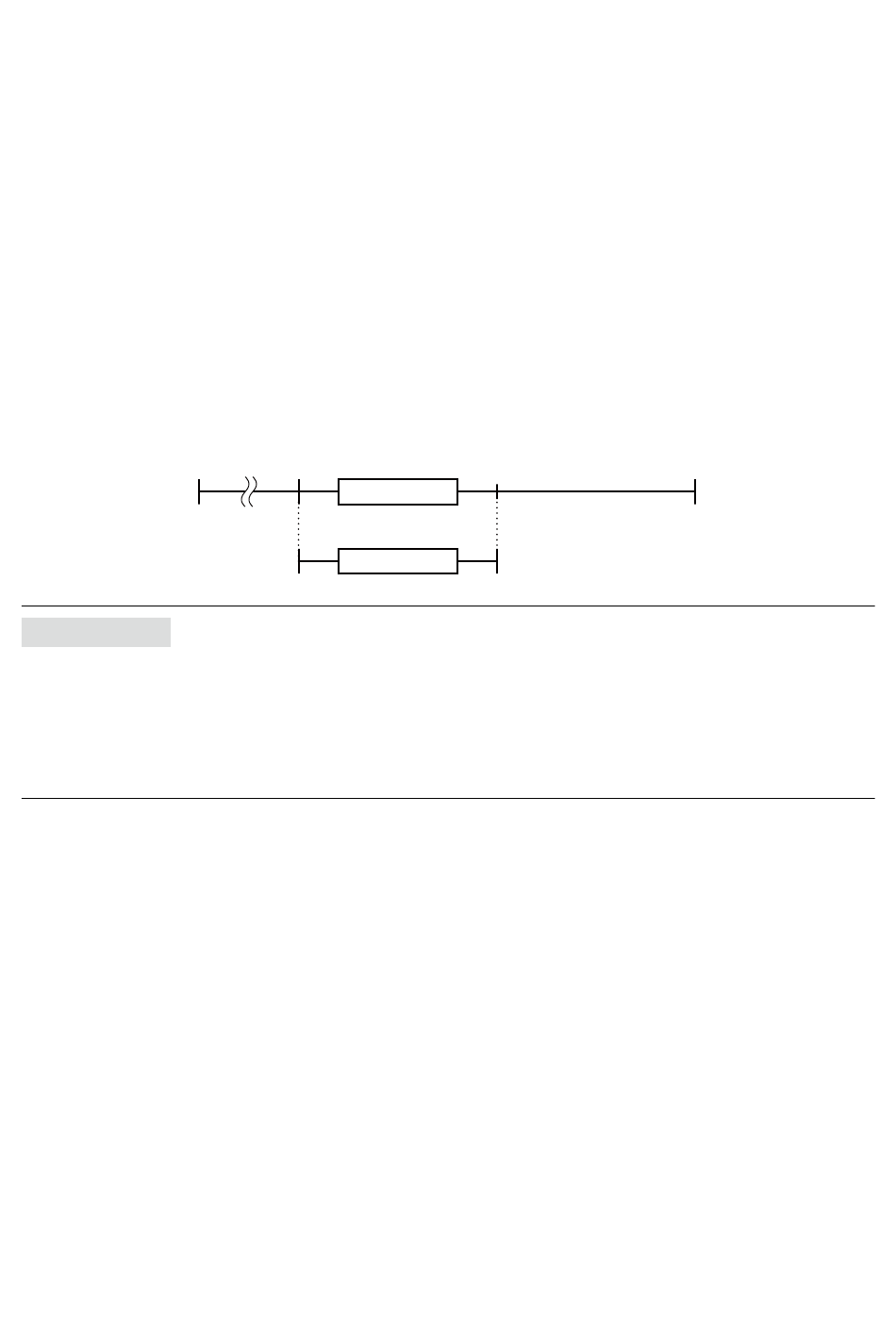

[Example 1] Setting input to 0 – 5 V DC
Maximum input range: -10 to +10 V DC
0% input ranging: apply 0 V DC and hold down DOWN button
100% input ranging: apply 5 V DC and hold down UP button
-10 V
0% input ranging
NOTE
• Input ranging is not needed in using the default value.
• 100% input ranging value must be greater than 0% value.
• Set the input within the maximum range with the minimum span or more. With inappropriate input level, the input rang-
ing is not carried out even in holding down UP or DOWN button. (The LD1 does not change.)
• There is no stated order of setting 0% and 100% levels or no limitations of entering values for multiple times within one
step of Ranging Mode.
• Signal level is not stored when UP or DOWN button is released before the LD1 turns OFF.
0 V
Max. input range
Input ranging
0 V
+5 V
100% input ranging
5 V
