10. CALIBRATION

'Calibration' means I/O ranging or output fine adjustments using the front control buttons. M-System's 'One-Step-Cal' cali-
bration technique realizes automatic I/O ranging and adjustment.
This chapter describes flow and operation procedure of the calibration.
You can also carry out the calibration using the PC Configurator Software (model: M3LUCFG). For detailed information,
refer to the M3LUCFG users manual.

10.1 CALIBRATION FLOW

The calibration includes I/O Ranging Mode and Fine Adjustment Mode. Hold down the MODE button to shift each mode
from the RUN Mode. The mode to shift depends on the time to hold down the button.

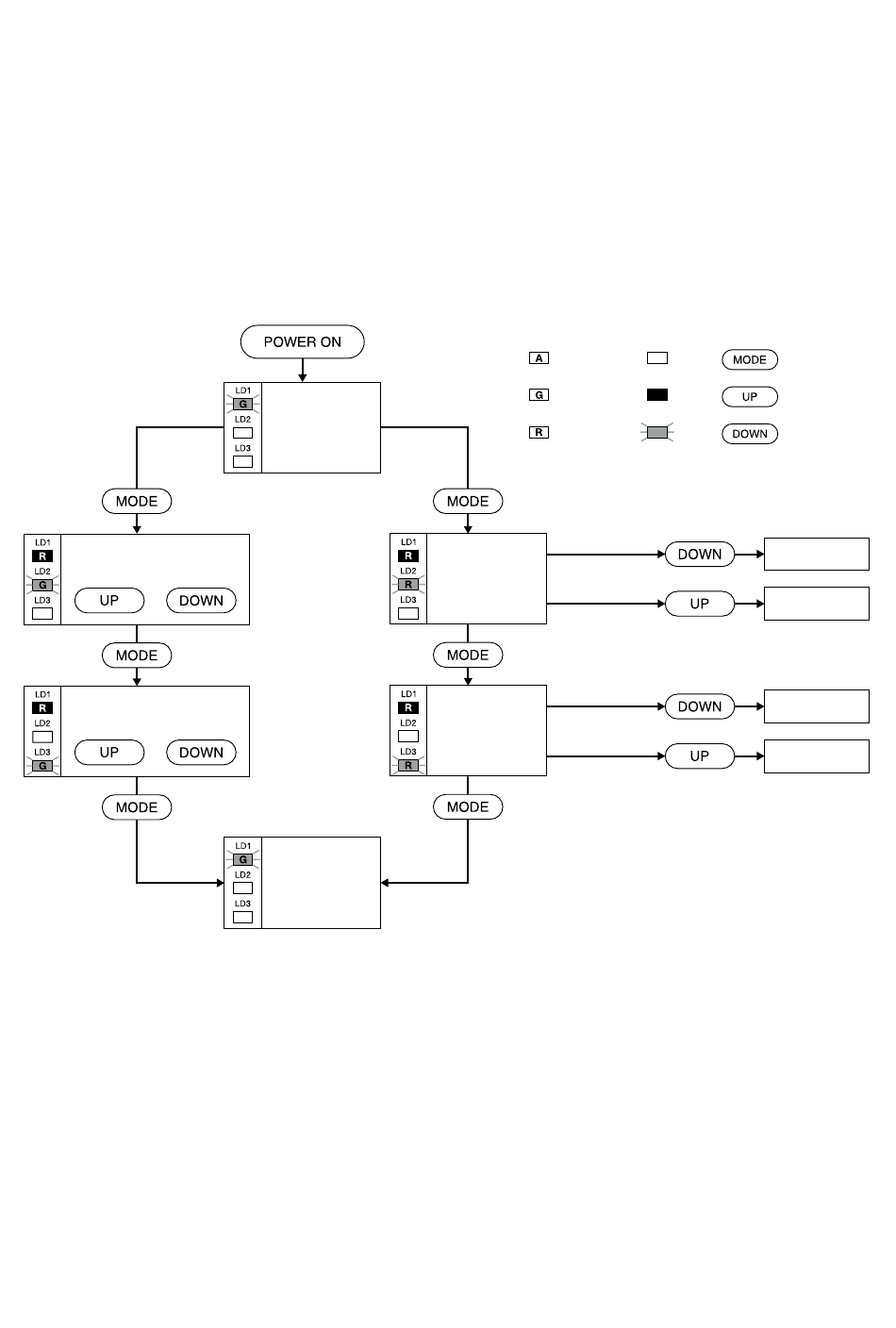

The following chart shows the calibration flow.
Fine Adjustment ?
Hold down 1 – 2 s
FINE ZERO
ADJUSTMENT MODE
or
Press
FINE SPAN
ADJUSTMENT MODE
or
Press
*1 In the RUN Mode, the green LD1 blinks (PC configuration), or turns on (DIP SW configuration).
*2 When you set 0% or 100% input/output ranges, keep pressing UP or DOWN button until the LD1 blinks for approx. 2 seconds and
turns off, which indicates the setup is complete. When you release the button, the LD1 is returned to ON. Therefore hold down the
button until the LD1 turns OFF.
I/O Ranging ?
RUN MODE *1
Hold down
Press
Press
RUN MODE *1
Amber LED
Green LED
Red LED
≥ 5s
Apply simulated
0% input signal.
INPUT
Apply simulated
RANGING
100% input signal.
MODE
Adjust simulated
input until the output
meter shows
desired 0% output.
OUTPUT
RANGING
MODE
Adjust simulated
input until the output
meter shows
desired 100% output.
M3LU2 OPERATING MANUAL EM-2653-B Rev.0
OFF
MODE button
ON
UP button
Blink
DOWN button
Hold down
*2
0% INPUT
CONFIGURED
Hold down *2
100% INPUT
CONFIGURED
Hold down *2
0% OUTPUT
CONFIGURED
Hold down
*2
100% OUTPUT
CONFIGURED
28
