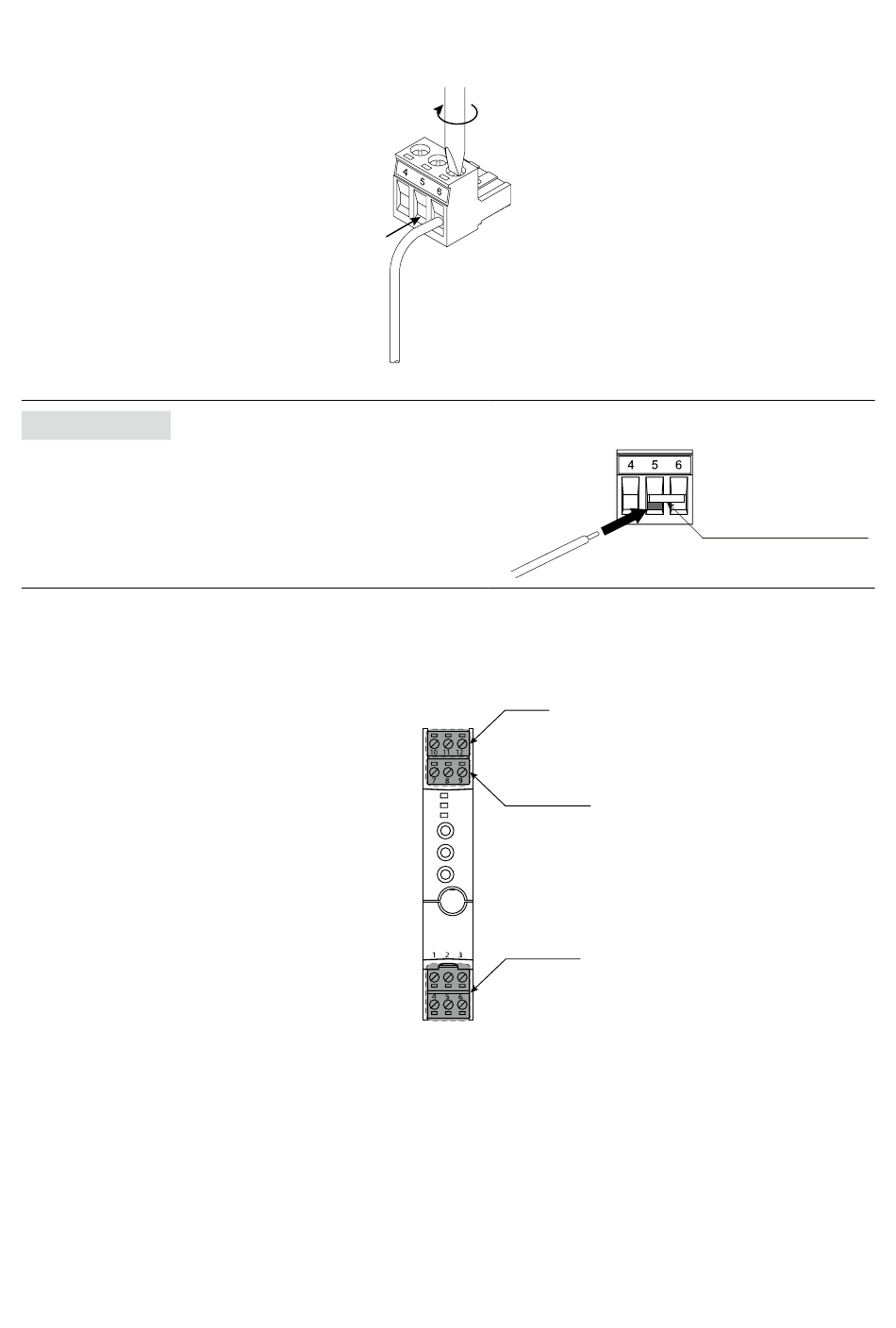

■ WIRING TO TERMINAL BLOCK
Insert a wire into the dead end of a terminal block and fix it with a minus screwdriver with the blade edge 0.6 mm (0.02")
and the blade width 3.5 mm (0.14") (torque: 0.5 – 0.6 N∙m).
NOTE
• For a thermocouple input, replace the terminal block (4 – 5 – 6)
with the one connected with the CJC sensor included in the
package. Fasten the input wire and the CJC sensor together
on the terminal 5.
• Do not use a ferrule with insulating sleeve.
• Insert a wire under the CJC sensor (figure on the right).

8.3 TERMINAL AssIGNMENT

Power
Output signal
Input signal
M3LU2 OPERATING MANUAL EM-2653-B Rev.0
CJC sensor (model: CJM)
