7. DIP sWITCH CONFIGURATION

This chapter describes the configuration of the I/O specifications and functions using the DIP switches and the JP2.
For the PC configuration, some DIP switch settings are necessary.

7.1 DIFFERENCE BETWEEN DIP sW CONFIGURATION AND PC CONFIGURATION

The following table shows the difference between the DIP SW configuration and PC configuration.
CONFIGURATION ITEM
Configuration mode
JP2 for input type
DIP SW for input
Output type
Front control button lock

7.2 DIP sWITCH sELECTION PER I/O sPECIFICATION AND FUNCTION

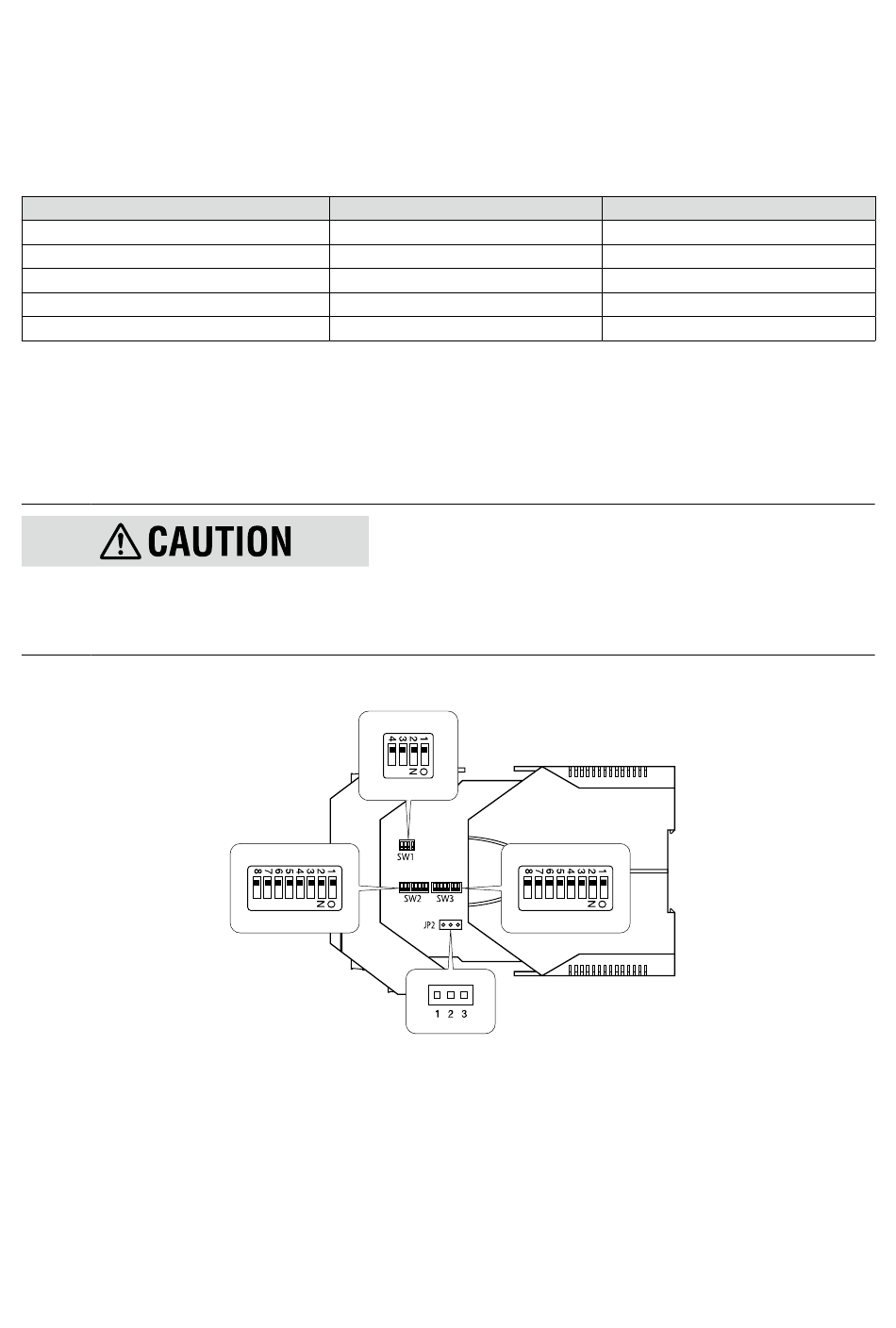

Configure the DIP switches and JP2 according to your I/O specifications and functions.
The unit reads the DIP-switch-calibrated configuration only once after the power supply is turned on. Set the switches with
the power supply removed. Some tools are needed to set the DIP switches and JP2.
• Set the switches and JP2 with the power supply removed.
• Use tweezers or longnose pliers to switch the JP2.
• Use a minus screwdriver with the blade edge 0.8 mm (0.03") to set the DIP switches.
• Do not touch other electronic components except for the JP2 and DIP switches.
DIP SW CONFIGURATION
SW3-8 OFF
Required
Required
Required
As necessary
SW1
SW2 SW3
JP2
M3LU2 OPERATING MANUAL EM-2653-B Rev.0
PC CONFIGURATION
SW3-8 ON
Required
----
Required for SW1-1 through 1-4
As necessary
