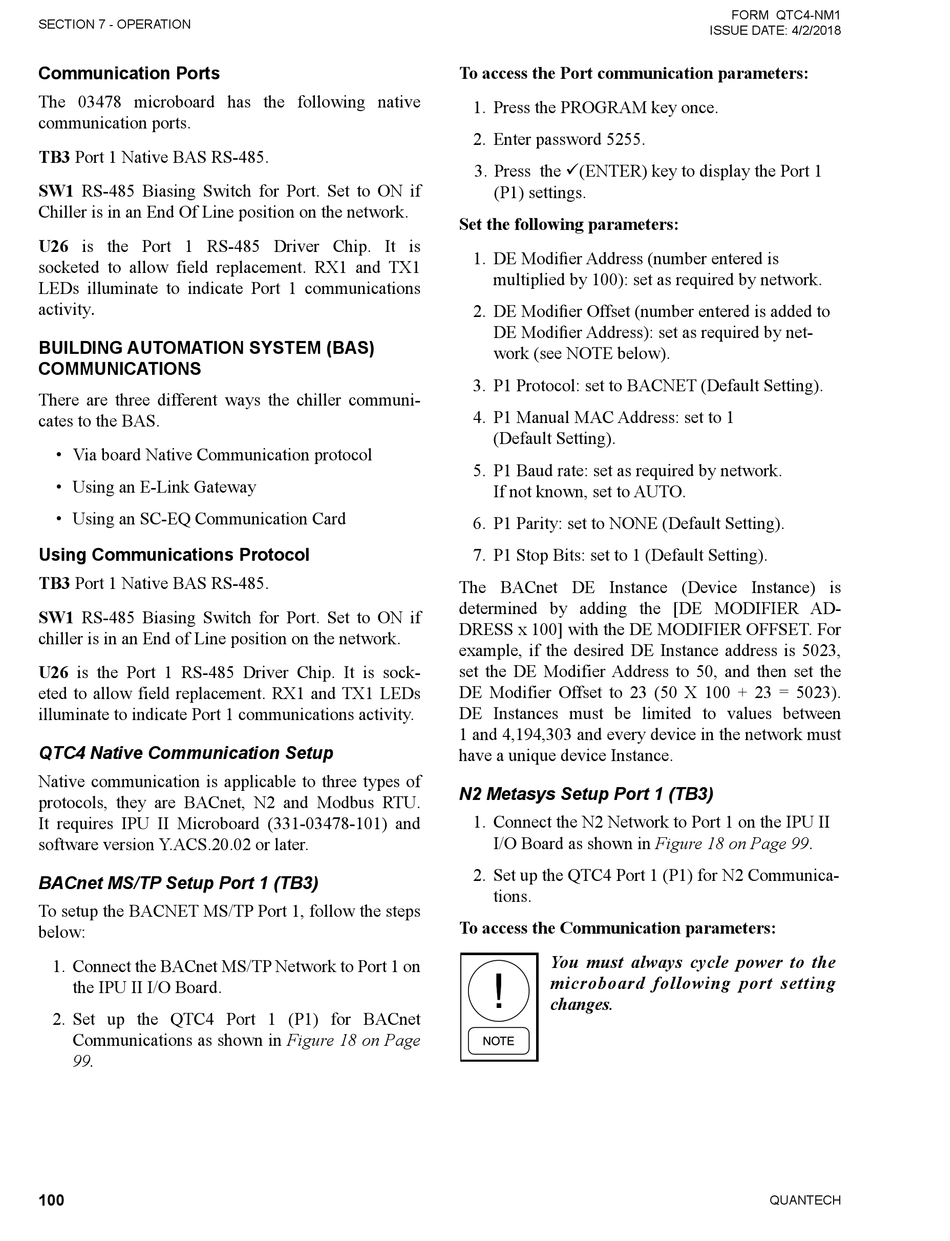

SECTION 7 - OPERATION

Communication Ports

The 03478 microboard has the following native

communication ports.

TB3 Port 1 Native BAS RS-485.

SW1 RS-485 Biasing Switch for Port. Set to ON if

Chiller is in an End Of Line position on the network.

U26 is the Port 1 RS-485 Driver Chip. It is

socketed to allow field replacement. RX1 and TX1

LEDs illuminate to indicate Port 1 communications

activity.

BUILDING AUTOMATION SYSTEM (BAS)

COMMUNICATIONS

There are three different ways the chiller communi-

cates to the BAS.

• Via board Native Communication protocol

• Using an E-Link Gateway

• Using an SC-EQ Communication Card

Using Communications Protocol

TB3 Port 1 Native BAS RS-485.

SW1 RS-485 Biasing Switch for Port. Set to ON if

chiller is in an End of Line position on the network.

U26 is the Port 1 RS-485 Driver Chip. It is sock-

eted to allow field replacement. RX1 and TX1 LEDs

illuminate to indicate Port 1 communications activity.

QTC4 Native Communication Setup

Native communication is applicable to three types of

protocols, they are BACnet, N2 and Modbus RTU.

It requires IPU II Microboard (331-03478-101) and

software version Y.ACS.20.02 or later.

BACnet MS/TP Setup Port 1 (TB3)

To setup the BACNET MS/TP Port 1, follow the steps

below:

1. Connect the BACnet MS/TP Network to Port 1 on

the IPU II I/O Board.

2. Set up the QTC4 Port 1 (P1) for BACnet

Communications as shown in Figure 18 on Page

99.

100

To access the Port communication parameters:

1. Press the PROGRAM key once.

2. Enter password 5255.

3. Press the (ENTER) key to display the Port 1

(P1) settings.

Set the following parameters:

1. DE Modifier Address (number entered is

multiplied by 100): set as required by network.

2. DE Modifier Offset (number entered is added to

DE Modifier Address): set as required by net-

work (see NOTE below).

3. P1 Protocol: set to BACNET (Default Setting).

4. P1 Manual MAC Address: set to 1

(Default Setting).

5. P1 Baud rate: set as required by network.

If not known, set to AUTO.

6. P1 Parity: set to NONE (Default Setting).

7. P1 Stop Bits: set to 1 (Default Setting).

The BACnet DE Instance (Device Instance) is

determined by adding the [DE MODIFIER AD-

DRESS x 100] with the DE MODIFIER OFFSET. For

example, if the desired DE Instance address is 5023,

set the DE Modifier Address to 50, and then set the

DE Modifier Offset to 23 (50 X 100 + 23 = 5023).

DE Instances must be limited to values between

1 and 4,194,303 and every device in the network must

have a unique device Instance.

N2 Metasys Setup Port 1 (TB3)

1. Connect the N2 Network to Port 1 on the IPU II

I/O Board as shown in Figure 18 on Page 99.

2. Set up the QTC4 Port 1 (P1) for N2 Communica-

tions.

To access the Communication parameters:

You must always cycle power to the

microboard following port setting

changes.

FORM QTC4-NM1

ISSUE DATE: 4/2/2018

QUANTECH
