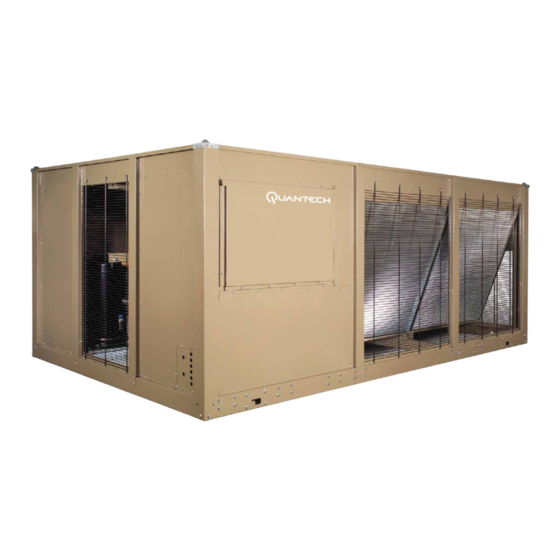

Quantech QTC2015T Manual

Air-cooled scroll chillers 15 – 46 ton, 53-162 kw, 60 hz, r-410a
Hide thumbs
Table of Contents

Advertisement

Quick Links

form QTC2-EG1 (515)
modEl QTC2
Air-CoolEd SCroll ChillErS
15 – 46 ToN
53-162 kW
60 hz
r-410A
LD18973a

Advertisement

Table of Contents
loading

Related Manuals for Quantech QTC2015T

Summary of Contents for Quantech QTC2015T

  • Page 1 form QTC2-EG1 (515) modEl QTC2 Air-CoolEd SCroll ChillErS 15 – 46 ToN 53-162 kW 60 hz r-410A LD18973a...
  • Page 2 28 = 230-3-60 40 = 380-3-60 46 = 460-3-60 58 = 575-3-60 QUANTECH CHILLER MODEL NUMBER Approvals • ASmE Boiler and Pressure Vessel Code – Section Vlll division 1. • Ahri Standard 550/590. • Ul 1995 – heating and Cooling Equipment • AShrAE 15 –...

  • Page 3: Table Of Contents

    ELECTRICAL NOTES ............................54 CIRCUIT BREAkER CALCULATIONS ......................... 56 POWER WIRING ..............................57 CONTROL WIRING ............................... 60 APPLICATION DATA ............................. 61 GUIDE SPECIFICATIONS ............................. 64 Performance data provided in this document was created in accordance with Quantech software: yW version 13.02. QUANTECH...
  • Page 4 FORM QTC2-eg1 (515) This Page inTenTionally lefT Blank. QUANTECH...

  • Page 5: Introduction

    FORM QTC2-eg1 (515) Introduction Quantech™ is proud to present the model QTC2 Air-Cooled Scroll Chiller. The QTC2 Air-Cooled Scroll Chillers provide chilled water for all air conditioning applica- tions using central station air handling or terminal units. They are completely self-con- tained and are designed for outdoor (roof or ground level) installation.
  • Page 6 They are directly driven, and positioned for vertical air discharge. The fan guards are constructed of heavy-gauge, rust-resistant, PVC (polyvinyl chloride)-coated steel wire. Motors – The fan motors are Totally Enclosed Air-over, squirrel-cage type, current pro- tected. They feature ball bearings that are double-sealed and permanently lubricated. QUANTECH...

  • Page 7: Microcomputer Control Center

    • remote reset temperature range. • Set daily schedule/holiday for start/stop. • manual override for servicing. • low and high ambient cutouts. • Number of compressors. • low liquid temperature cutout. • low suction pressure cutout. • high discharge pressure cutout. QUANTECH...
  • Page 8 • Suction pressure cutout setting. • Each system suction pressure. • discharge pressure (optional). • liquid Temperature reset via a Quantech iSN ddC or building automation system (by others) via: • A pulse width modulated (PWm) input as standard. • A 4-20 milliamp or 0 -10 VdC input, or contact closure with the optional B.A.S.
  • Page 9 MicroComputer Control Center (Cont'd) • Status of hot gas valves, evaporator heater and fan operation. • run permissive status. • Number of compressors running. • liquid solenoid valve status. • load & unload timer status. • Water pump status. QUANTECH...

  • Page 10: Accessories And Options

    COMPRESSOR, PIPING, EVAPORATOR OPTIONS Low Temperature Glycol – required for glycol chilling below 30°f (-1°C) leaving glycol temperature. option includes resized thermal expansion valve. Chicago Code Relief Valves – Unit will be provided with relief valves to meet Chicago code requirements. QUANTECH...
  • Page 11 Condenser coil protection against corrosive environments is available by choosing any of the following options. for additional application recommendations, contact your local Quantech office. Pre-Coated Fin Condenser Coils – The unit's coils are constructed with epoxy coated aluminum fins. This can provide corrosion resistance comparable to copper-fin coils in typical seashore locations.
  • Page 12 FORM QTC2-eg1 (515) This Page inTenTionally lefT Blank. QUANTECH...

  • Page 13: Design Parameters

    12.8 18.9 -17.7 51.7 NoTES: 1. For leaving brine temperature below 40°F (4.4°C), contact your nearest Quantech Sales Office for ap- plication requirements. 2. For leaving water temperature higher than 55°F (12.8°C), contact the nearest Quantech Sales Office for application guidelines. 3. The evaporator is protected against freezing to -20°f (-28.8°C) with an electric heater as standard. 4. for operation at temperatures below 25°f (-3.9°C), the optional low Ambient Kit will need to be installed on the system (for QTC2040T-045T models only).

  • Page 14: Water Pressure Drop

    FORM QTC2-eg1 (515) Water Pressure Drop QTC2 ENGLISH EVAPORATOR PRESSURE DROP CURVE WATER FLOW RATE (GPM) ld18667 EVAPORATOR CURVE CHILLER MODEL QTC2015T QTC2020T QTC2025T QTC2030T QTC2035T QTC2040T QTC2045T QUANTECH...
  • Page 15 FORM QTC2-eg1 (515) Water Pressure Drop (Cont'd) QTC2 SI EVAPORATOR PRESSURE DROP CURVE WATER FLOW RATE (l/s) ld18668 EVAPORATOR CURVE CHILLER MODEL QTC2015T QTC2020T QTC2025T QTC2030T QTC2035T QTC2040T QTC2045T QUANTECH...

  • Page 16: Physical Data And Nominal Ratings

    Total Chiller Cfm 10833 10833 20000 20000 39500 39500 43333 EVAPORATOR Water Volume Gallons maximum Water Side Pressure PSiG maximum refrig Side Pressure PSiG minimum Chiller Water flow GPm maximum Chiller Water flow GPm Water Connection Size inches QUANTECH...
  • Page 17 11.4 14.5 12.3 15.9 15.9 maximum Water Side Pressure Barg 20.7 20.7 20.7 20.7 20.7 20.7 20.7 maximum refrig Side Pressure Barg minimum Chiller Water flow l/s maximum Chiller Water flow l/s 12.6 12.6 18.9 Water Connections Size inches QUANTECH...

  • Page 18: Part Load Ratings

    FORM QTC2-eg1 (515) Part Load Ratings ENGLISH QTC2015T QTC2035T AMBENT UNIT AMBIENT UNIT % DISPL. TONS % DISPL. TONS (°F) (°F) 15.4 17.6 95.0 10.0 37.2 38.8 95.0 10.1 70.2 16.0 30.0 24.4 83.3 12.0 IPLV=14.6 21.1 14.2 69.0 14.9 11.5...
  • Page 19 FORM QTC2-eg1 (515) Part Load Ratings (Cont'd) QTC2015T QTC2035T AMBIENT AMBIENT UNIT UNIT % DISPL. TONS % DISPL. TONS (°F) (°F) 13.0 14.2 95.0 10.6 31.2 31.7 95.0 10.7 70.2 17.0 25.1 19.5 83.3 13.2 IPLV=15.5 17.6 10.7 68.8 17.1 55.0...

  • Page 20: Unit Dimensions - English

    FORM QTC2-eg1 (515) Unit Dimensions - English QTC2015T 3 1/4" 6 3/4" 7/8" TYP. 3 15/16" VIEW B-B BOTTOM OF PANEL 2" DIA (2) 3.0 X 1.50 46 1/16" RIGGING HOLES 45 1/4" BOTH ENDS 2 1/4" 11 5/8" TO ACCESS PANEL 16 1/4"...
  • Page 21 FORM QTC2-eg1 (515) Unit Dimensions - English (Cont'd) QTC2015T 9/16" DIA MOUNTING HOLES(typ) 1 1/16" CONTROL COMPR PANEL 44 3/8" END CAP WIDTH 32 1/8" 6 1/8" 1 1/16" ORIGIN 2 1/4" 5" TOP VIEW 17" 1" 9 1/16" CONTROL PANEL 38 3/16"...
  • Page 22 Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airflow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0''; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. QUANTECH...
  • Page 23 CONTROL PANEL 38 3/16" 3 3/8" 2 1/4" 13 3/4" (2) 7.0 X 2.25 FORKLIFT HOLES BOTH SIDES (2) 3.0 X 1.50 15 5/8" RIGGING HOLES BOTH SIDES 44 1/2" 74 1/2" 97 1/8" 109 3/16" FRONT VIEW LD18672 QUANTECH...
  • Page 24 Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airflow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0''; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. QUANTECH...
  • Page 25 FORM QTC2-eg1 (515) Unit Dimensions - English (Cont'd) QTC2025T LD18674 QUANTECH...
  • Page 26 Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airflow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0''; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. QUANTECH...
  • Page 27 CONTROL PANEL 42 1/8" 3 3/8" 2 1/4" 17 3/4" (2) 7.0 X 2.25 FORKLIFT HOLES BOTH SIDES (2) 3.0 X 1.50 15 5/8" RIGGING HOLES 50 1/2" BOTH SIDES 80 1/2" 105 1/16" 118 5/16" FRONT VIEW LD18676 QUANTECH...
  • Page 28 Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airflow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0''; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. QUANTECH...
  • Page 29 END CAP WIDTH 45 1/8" 1 1/16" 9 13/16" 9 13/16" ORIGIN 16 3/4" TOP VIEW 5 5/16" 38" CONTROL PANEL 25 3/8" 13 5/8" TWO LIFTING HOLES BOTH SIDES 13 15/16" 15 1/16" 144 13/16" FRONT VIEW LD18678 QUANTECH...
  • Page 30 Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airflow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0''; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. QUANTECH...
  • Page 31 END CAP WIDTH 45 1/8" 1 1/16" 9 13/16" 9 13/16" ORIGIN 16 3/4" TOP VIEW 5 5/16" 38" CONTROL PANEL 25 3/8" 13 5/8" TWO LIFTING HOLES BOTH SIDES 13 15/16" 15 1/16" 144 13/16" FRONT VIEW LD18680 QUANTECH...
  • Page 32 Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airflow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0''; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. QUANTECH...
  • Page 33 FORM QTC2-eg1 (515) Unit Dimensions - English (Cont'd) QTC2045T 45 1/8” 18 1/2” LD18682 QUANTECH...

  • Page 34: Unit Dimensions - Metric

    FORM QTC2-eg1 (515) Unit Dimensions - Metric QTC2015T 22 TYP. VIEW B-B BOTTOM OF PANEL 51 DIA (2) 76 X 38 1170 RIGGING HOLES 1149 BOTH ENDS TO ACCESS PANEL 412 51 ANSI/AWWA C-606 CONN (typ) 1126 BASE WIDTH LEFT END...
  • Page 35 FORM QTC2-eg1 (515) Unit Dimensions - Metric (Cont'd) QTC2015T 14 DIA MOUNTING HOLES(typ) CONTROL COMPR PANEL 1128 END CAP WIDTH ORIGIN TOP VIEW CONTROL PANEL (2) 178 X 57 FORKLIFT HOLES BOTH SIDES (2) 76 X 38 RIGGING HOLES BOTH SIDES...
  • Page 36 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deflection isolators (not shown) will increase overall unit height by 152mm. QUANTECH...
  • Page 37 14 DIA MOUNTING HOLES(typ) CONTROL COMPR PANEL 1128 END CAP WIDTH ORIGIN TOP VIEW CONTROL PANEL (2) 178 X 57 FORKLIFT HOLES BOTH SIDES (2) 76 X 38 RIGGING HOLES BOTH SIDES 1130 1892 2466 2774 FRONT VIEW LD18692 QUANTECH...
  • Page 38 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deflection isolators (not shown) will increase overall unit height by 152mm. QUANTECH...
  • Page 39 16 DIA MOUNTING HOLES(TYP) CONTROL COMPR PANEL 1128 END CAP WIDTH ORIGIN TOP VIEW CONTROL PANEL 1070 (2) 178 X 57 FORKLIFT HOLES (2) 76 X 38 BOTH SIDES RIGGING HOLES 1282 BOTH SIDES 2044 2669 3005 LD18694 FRONT VIEW QUANTECH...
  • Page 40 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deflection isolators (not shown) will increase overall unit height by 152mm. QUANTECH...
  • Page 41 14 DIA MOUNTING HOLES(typ) CONTROL COMPR PANEL 1128 END CAP WIDTH ORIGIN TOP VIEW CONTROL PANEL 1070 (2) 178 X 57 FORKLIFT HOLES BOTH SIDES (2) 76 X 38 RIGGING HOLES 1282 BOTH SIDES 2044 2669 3005 FRONT VIEW LD18696 QUANTECH...
  • Page 42 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deflection isolators (not shown) will increase overall unit height by 152mm. QUANTECH...
  • Page 43 FORM QTC2-eg1 (515) Unit Dimensions - Metric (Cont'd) QTC2035T 14 DIA MOUNTING HOLES(typ) COIL COOLER 2301 END CAP WIDTH 1146 ORIGIN TOP VIEW CONTROL PANEL TWO LIFTING HOLES BOTH SIDES 3678 LD18698 FRONT VIEW QUANTECH...
  • Page 44 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deflection isolators (not shown) will increase overall unit height by 152mm. QUANTECH...
  • Page 45 FORM QTC2-eg1 (515) Unit Dimensions - Metric (Cont'd) QTC2040T 14 DIA MOUNTING HOLES(typ) COIL COOLER 2301 END CAP WIDTH 1146 ORIGIN TOP VIEW CONTROL PANEL TWO LIFTING HOLES BOTH SIDES 3678 LD18700 FRONT VIEW QUANTECH...
  • Page 46 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deflection isolators (not shown) will increase overall unit height by 152mm. QUANTECH...
  • Page 47 FORM QTC2-eg1 (515) Unit Dimensions - Metric (Cont'd) QTC2045T LD18702 QUANTECH...

  • Page 48: Isolator Details

    1.7 (43) 1318 (149) 3342 (1516) PiNK/BlACK y2RSI-2D-2640N 2640 (1197) 1.5 (38) 1854 (209) 4283 (1943) PiNK/GrAY PiNK/GrAY/ y2RSI-2D-2870N 3080 (1397) 1.5 (38) 2004 (226) 4629 (2100) orANGE PiNK/GrAY/dK y2RSI-2D-3280N 3740 (1696) 1.8 (46) 2134 (241) 4930 (2236) BroWN QUANTECH...
  • Page 49 1020 (463) 1.020 (46) BlACK CP2-1D-1350 1350 (612) 1.32 (34) dK. PUrPlE CP2-1D-1800 1800 (816) 1.02 (26) dK. GrEEN CP2-1D-2400 2400 (1089) 0.9 (23) GrAY CP2-1D-2720 2720 (1234) 0.77 (20) WhiTE CP2-1D-3570N 3570 (1619) 0.88 (22) GrAY / rEd QUANTECH...
  • Page 50 MOUNT DIMENSION DATA (INCHES) TyPE 3.38 2.88 4.13 0.56 0.25 RD3-WR 1/2-13 UNC X 1 (139.7) (85.85) (73.15) (104.90) (14.22) (6.35) (63.5) 6.25 4.63 2.75 0.56 0.38 RD4-WR 1/2-13 UNC X 1 (158.7) (117.60) (69.85) (127) (14.22) (9.65) (76.2) QUANTECH...
  • Page 51 RD3-CHARCOAL-WR 1100 (499) 0.5 (12) RATED CAPACITy RATED DEFLECTION MODEL NUMBER DURO (± 5) LBS (kG) IN (MM) RD4-BROWN-WR 1500 (680) 0.5 (12) RD4-BRICk RED-WR 2250 (1021) 0.5 (12) RD4-LIME-WR 3000 (1361) 0.5 (12) RD4-CHARCOAL-WR 4000 (1814) 0.5 (12) QUANTECH...

  • Page 52: Electrical Data - 60Hz

    FORM QTC2-eg1 (515) Electrical Data - 60Hz QTC2015T - QTC2045T WIRING WITHOUT PUMP SySTEM # 1 SySTEM # 2 DUAL COMPR 1 COMPR 2 COMPR 1 COMPR 2 DUAL CkT. QTC2 VOLT Hz DISC ELEM ELEM AMPS FUSE RLA LRA RLA LRA QTy FLA LRA RLA LRA RLA LRA QTy FLA LRA...
  • Page 53 FORM QTC2-eg1 (515) Electrical Data - 60Hz (Cont'd) QTC2015T - QTC2045T WIRING WITHOUT PUMP SySTEM # 1 SySTEM # 2 DUAL COMPR 1 COMPR 2 COMPR 1 COMPR 2 DUAL CkT. QTC2 VOLT Hz DISC ELEM ELEM AMPS FUSE RLA LRA RLA LRA QTy FLA LRA RLA LRA RLA LRA QTy FLA LRA...

  • Page 54: Electrical Notes

    FACT MOUNT CB FACTORY MOUNTED CIRCUIT BREAKER FULL LOAD AMPS HERTZ MAXIMUM MINIMUM CIRCUIT AMPACITY MINIMUM NF MINIMUM NON FUSED RATED LOAD AMPS S.P. WIRE SINGLE POINT WIRING UNIT MTD SERV SW UNIT MOUNTED SERVICE (NON-FUSED DISCONNECT SWITCH) LOCKED ROTOR AMPS QUANTECH...
  • Page 55 This disconnect is not intended to be a load Break device. 9. field Wiring by others which complies to the National Electrical Code & local Codes. QUANTECH...

  • Page 56: Circuit Breaker Calculations

    Column A: 70 < 76.79 < 80, therefore the USEd moP found in Column C is 70. ACTUAL MINIMUM MAXIMUM COLUMN COLUMN COLUMN *Note: Column B is used if one were calculating the minimum dual Elem fuse which is not relevant to this exercise. QUANTECH...

  • Page 57: Power Wiring

    FORM QTC2-eg1 (515) Power Wiring LD18707 QUANTECH...
  • Page 58 FORM QTC2-eg1 (515) Power Wiring (Cont'd) LD18744 QUANTECH...
  • Page 59 FORM QTC2-eg1 (515) Power Wiring (Cont'd) LD18746 QUANTECH...

  • Page 60: Control Wiring

    FORM QTC2-eg1 (515) Control Wiring FLOW SW REMOTE START/STOP PWM INPUT LOAD LIMIT INPUT CTB1 LD18747 * Factory wired with optional transformer. LD03611 QUANTECH...

  • Page 61: Application Data

    A one-piece concrete slab with footers extending below the frost line is highly rec- ommended. Additionally, the slab should not be tied to the main building foundation, as noises will telegraph. QUANTECH...
  • Page 62 A flow switch is available as an accessory on all units. The flow switch (or its equivalent) must be installed in the leaving water piping of the cooler and must not be used to start and stop the unit. QUANTECH...
  • Page 63 3. All wiring and piping must comply with applicable local and national codes. 4. All wiring and piping must follow standard piping techniques as discussed in the AShrAE handbook. 5. A strainer with a mesh size between .5 and 1.5 mm is recommended upstream of the heat exchanger to prevent clogging. QUANTECH...

  • Page 64: Guide Specifications

    50 mile radius of the site. d. manufacturer shall Warrant all equipment and material of its manufacture against de- fects in workmanship and material for a period of one year from date of initial start-up or eighteen (18) months from date of shipment, whichever occurs first. QUANTECH...
  • Page 65 5. Annular discharge check valve and reverse vent assembly to provide low pressure drop, silent shutdown and reverse rotation protection. 6. initial oil charge. 7. oil level sight glass. 8. Vibration isolator mounts for compressors. 9. Brazed-type connections for fully hermetic refrigerant circuits. QUANTECH...
  • Page 66 2.05 CONTROLS A. General: Automatic start, stop, operating, and protection sequences across the range of scheduled conditions and transients. B. microprocessor Enclosure: rain and dust tight NEmA 3r/12 powder painted steel cab- inet with a gasket sealed protective cover. QUANTECH...
  • Page 67 English or metric data, suction pressure cutout setting, each system suction pressure, discharge pressure, liquid temperature reset via a Quantech iSN ddC or building automation system (by others) via PWm input as standard or a 4-20 mil-...
  • Page 68 2.07 ACCESSORIES AND OPTIONS Some accessories and options supercede standard product features. Your Quantech rep- resentative will be pleased to provide assistance. A. microprocessor controlled, factory installed Across-the-line type compressor motor starters as standard.
  • Page 69 (solenoid valves, filter driers, sight glasses, and TXVs), as discrete elements of a complete factory system. Contrac- tor shall be field erect system and provide interconnecting refrigerant piping and wiring in accordance with manufacturer recommendations, and project plans and schedules. Where not otherwise specified, Contractor provided system piping shall be in accor- dance with applicable sections of AShrAE handbook. QUANTECH...
  • Page 70 1. Neoprene Pad isolators. 2. 1-Inch Deflection Spring Isolators: Level adjustable, spring and cage type isolators for mounting under the unit base rails. 3. 2-Inch Deflection Isolators: Level adjustable, restrained mounts in rugged welded steel housing with vertical and horizontal limit stops. housings shall be designed to withstand a minimum 1.0g accelerated force in all directions to 2 inches. QUANTECH...
  • Page 71 C. Components: installing Contractor shall provide and install all auxiliary devices and accessories for fully operational chiller. d. Electrical: Coordinate electrical requirements and connections for all power feeds with Electrical Contractor (division 16). E. Controls: Coordinate all control requirements and connections with Controls Contrac- tor. f. Finish: Installing Contractor shall paint damaged and abraded factory finish with touch- up paint matching factory finish. QUANTECH...
  • Page 72 Printed on recycled paper Form QTC2-EG1 (515) New Release © 2015 P.O. Box 423, Milwaukee, WI 53201 Printed in USA Issued on 5/20/2015...
