Wattuneed Inverter Setup SOP - Pylon Battery
To take advantage of your Pylontech battery warranty please pay attention to
the settings below on WKS inverters for off-grid solutions (Off-Grid) or Multisolar
inverters for grid-based solutions (On-Grid).
Be sure to follow the safety precautions. You will find them at the end of the
document.
1. Multisolar - On-grid Solution
(1) General Compatible Condition:
Battery Type
Multisolar 2kW
Inverter Type
Recommend
According to load requirement and inverter rated power.
battery Amount
Communication
Not required, but need finish the setting on Inverter software
DOD
80%
Working Temp.
0 - 50℃(Indoor operation)
Charge/Dischar
N*25, N = Battery amount
ge Current
Warranty
5yrs
(3) Inverter set up:

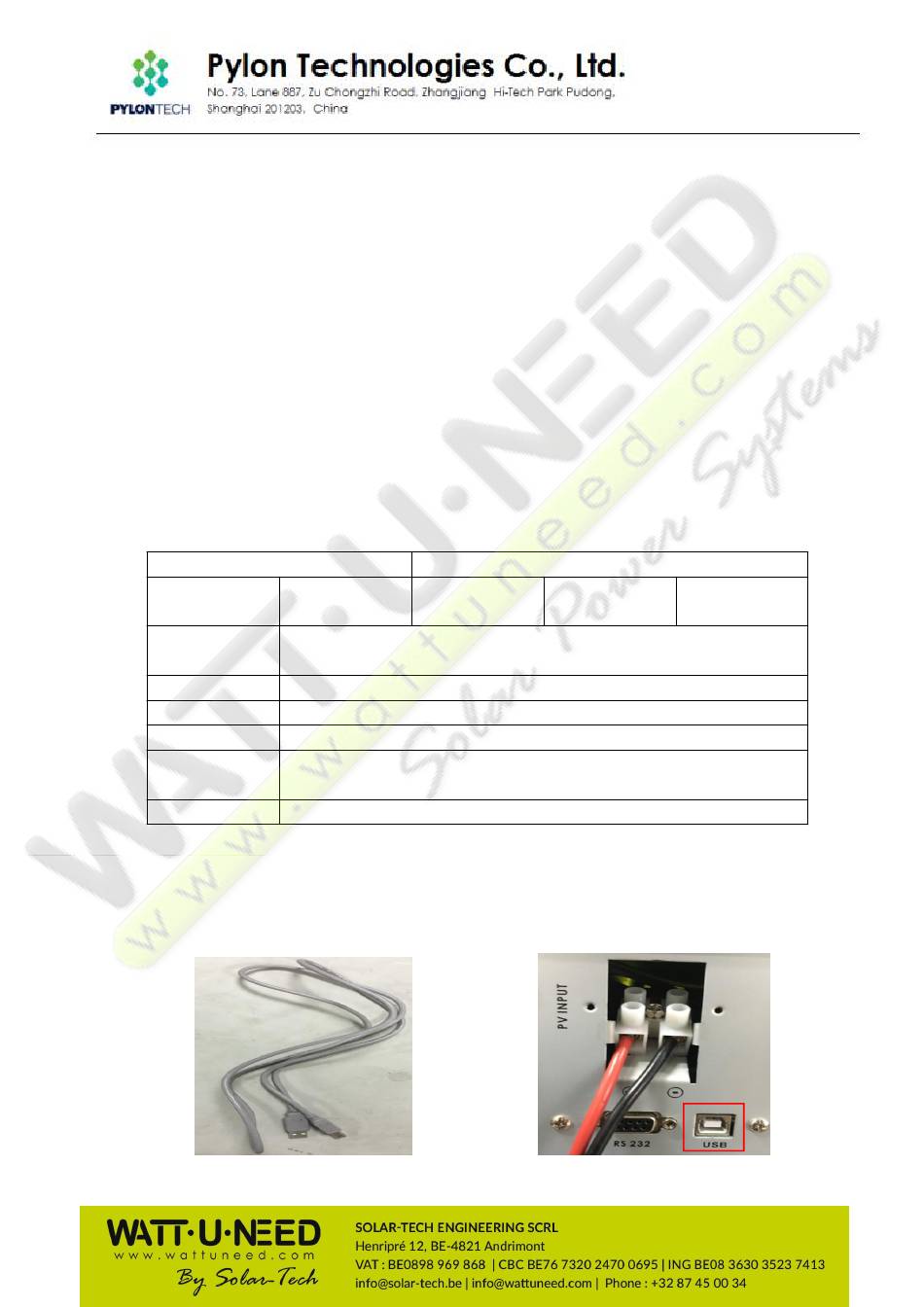

(a) Connect PV or Grid power to wake up inverter; Connect the communication cable from
Inverter to computer.
US2000B/Phantom-S
Multisolar
Plus 3kW
Battery Amount N = Load power/1200W
1
Multisolar Plus
Multisolar
5kW
3P 10kW
