Danfoss ADAP-KOOL AK-PC 783 Design Manual page 49

Mounting and wiring - continued

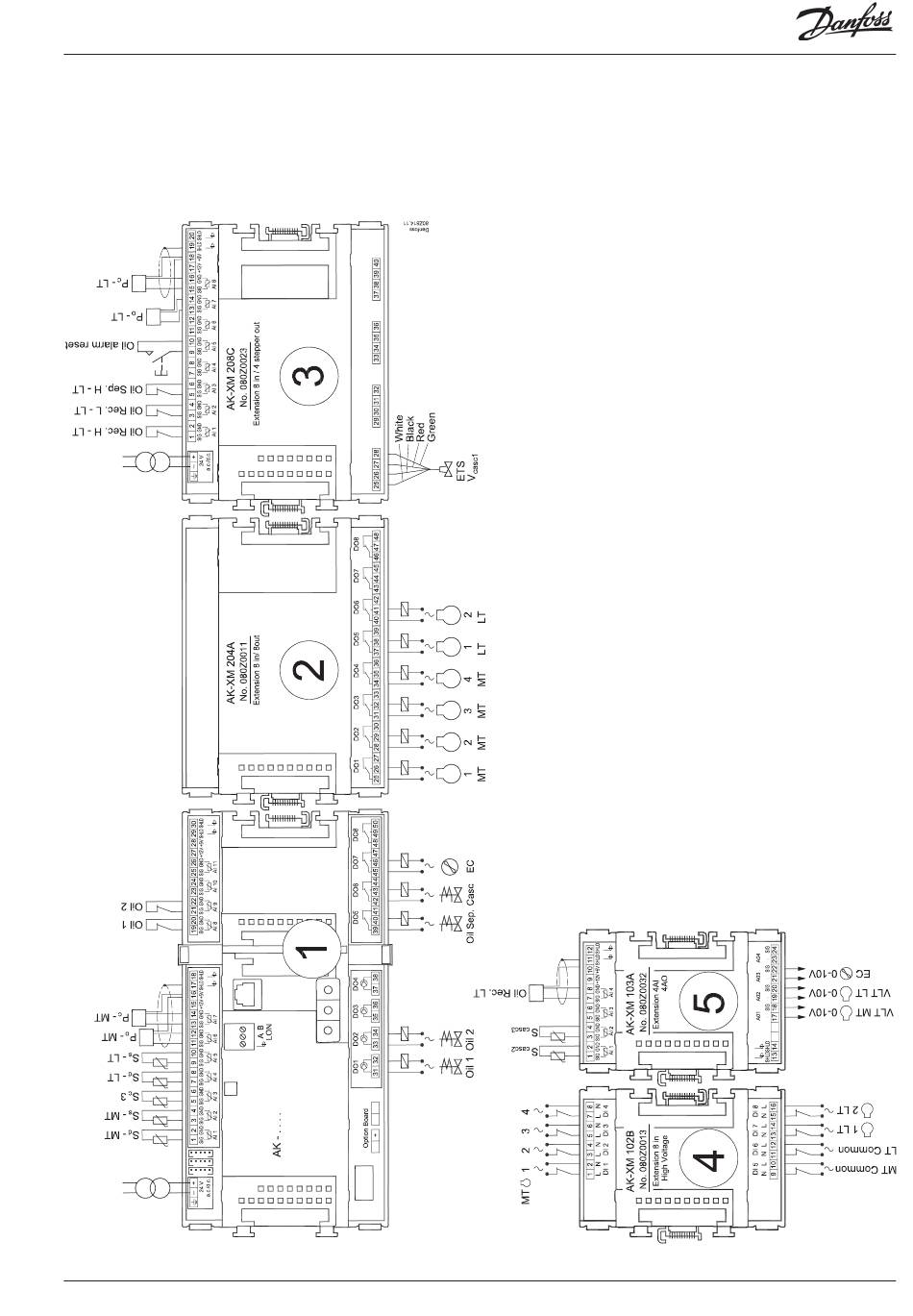

The connections for the example can be seen here.
AK-PC 783 Capacity controller RS8GN202 © Danfoss 11-2013
Warning
Keep signal cables separate from
cables with high voltage.
The screen on the pressure
transmitter cables must only
be connected at the end of the
controller.
The supply voltage for the pressure
transmitter should be taken from
the same module that receives the
pressure signal.
49
