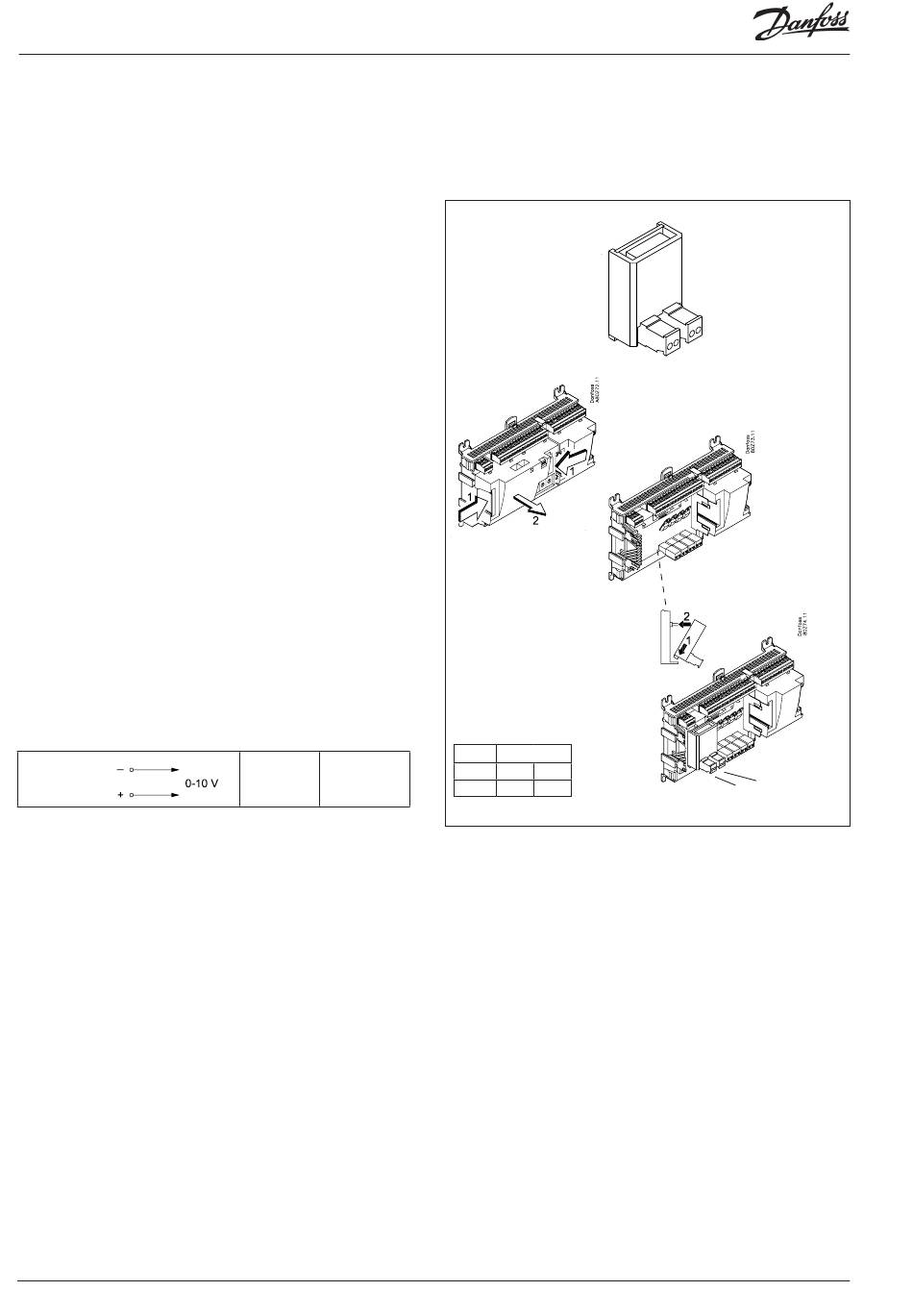

Extension module AK-OB 110

Function
The module contains two analog voltage outputs of 0 – 10 V.
Supply voltage
The supply voltage to the module comes from the controller
module.
Placing
The module is placed on the PC board in the controller module.
Point
The two outputs have points 24 and 25. They are shown on the
earlier page where the controller is also mentioned.
Max. load
I < 2.5 mA
R > 4 kohm
AO
26
AO 0 - 10 V
Capacity controller RS8GN202 © Danfoss 11-2013
1
Module
Point 24 25
Type AO1 AO2
AO2
AO1
AK-PC 783
