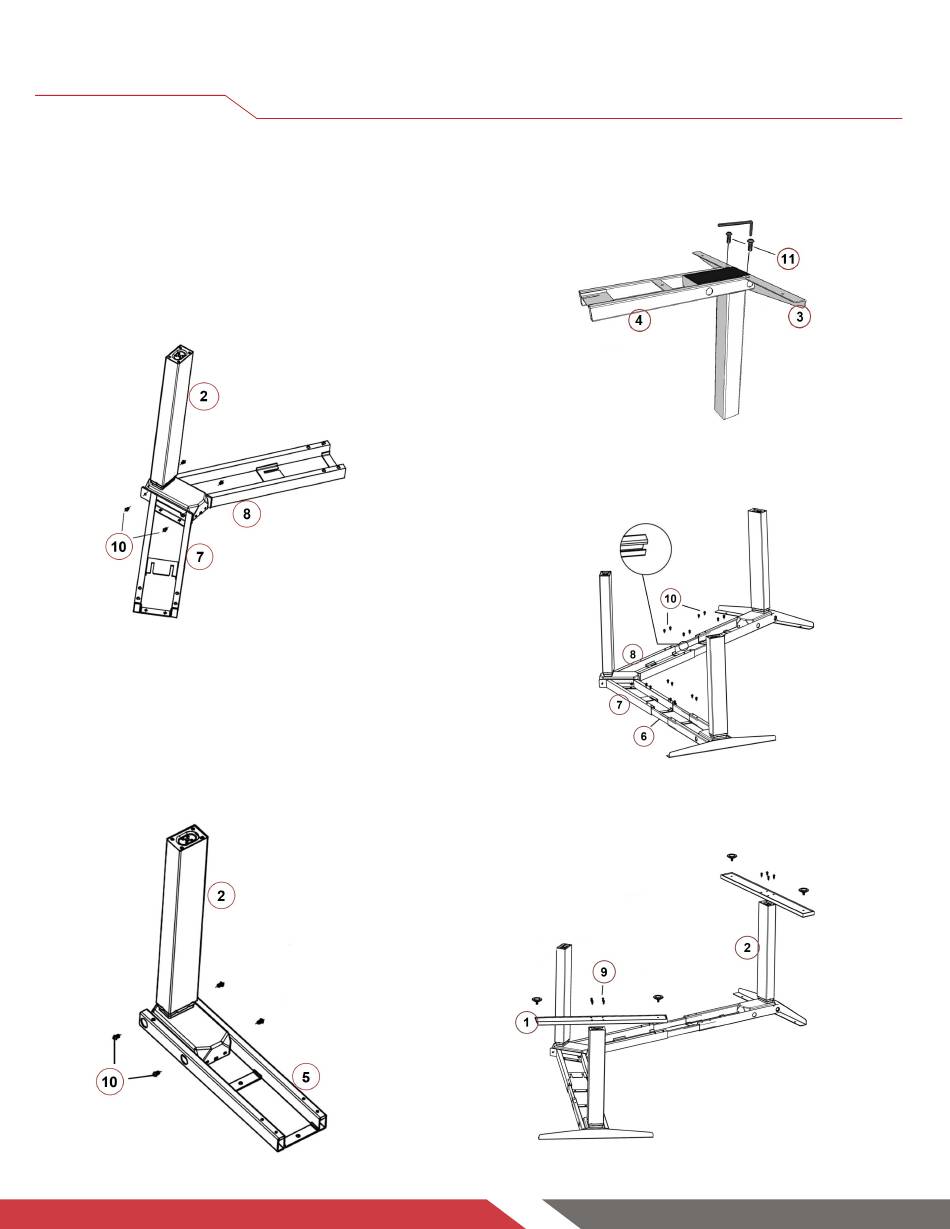

STEP 1
Attach the 120° Frames (7,8) to one of the Legs (3) as shown
in the picture below. Line up the holes on the Leg with the
holes on the Frames.
Use the supplied Allen Wrench to insert four M6x10
Machine Screws (10) through the holes on the Frame
(7,8) going into the Leg (1). Rotate each screw just a few
turns until all four are inserted, then tighten them.
STEP 2
Place one of the Legs (3) into one of the Frames (5)
and line up the holes.
Use the supplied Allen Wrench to insert four M6x10
Machine Screws (10) through the holes on the Frame
(5) going into the Leg (3). Rotate each screw just a
few turns until all four are inserted, then tighten them.
Repeat the process for the other Leg and Frame.
STEP 3
Slide the Side Brackets (3) into both Frames (4,5).
Attach the brackets using two M6x35 Machine Screws
(11).
STEP 4
Slide the Center Rails (6) into the 120° Frames (7,8) and
attach them into position using sixteen of the M6x10
Machine Screws (10).
STEP 5
Attach each Foot (1) to each Leg (2) with four M6x14
Machine Screws (9) and tighten them.
