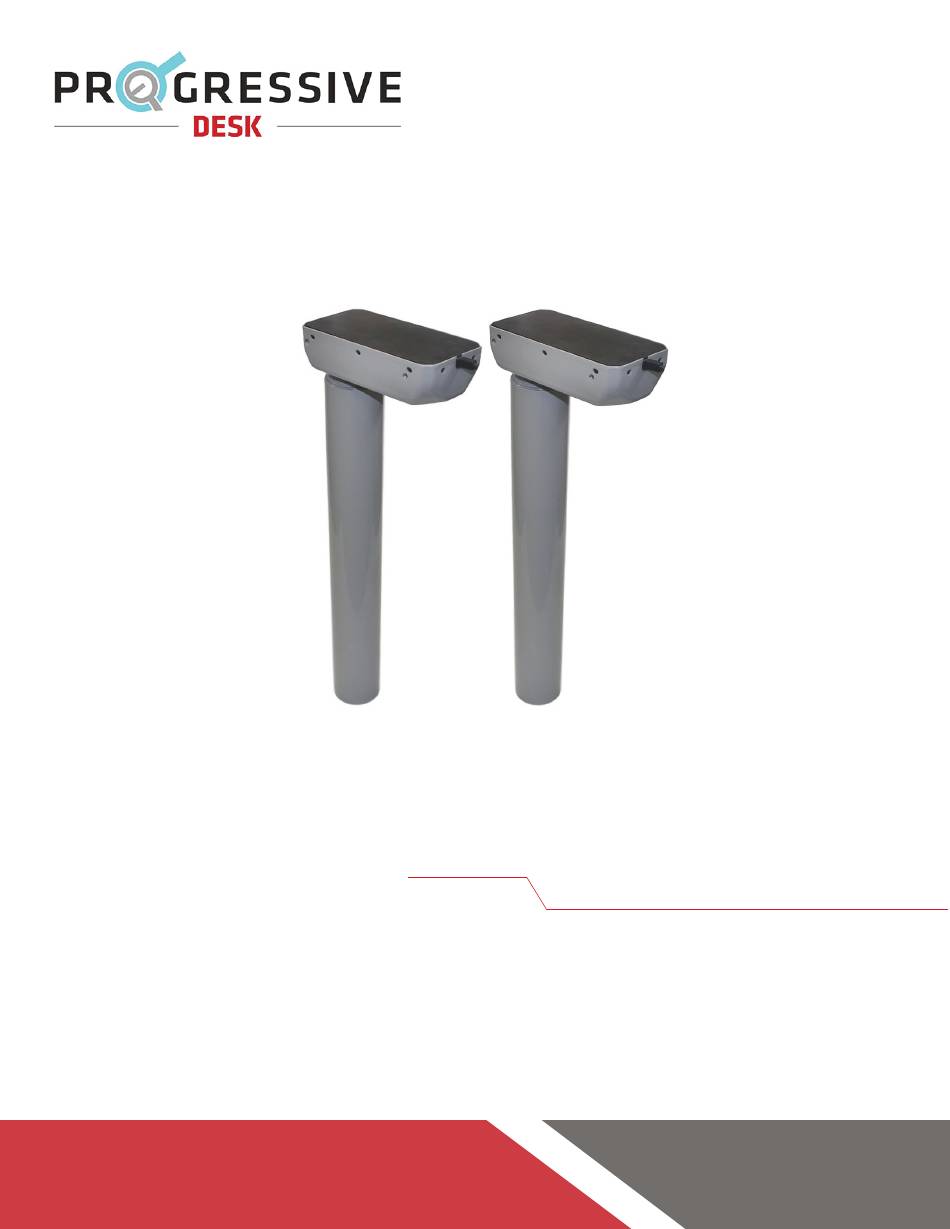

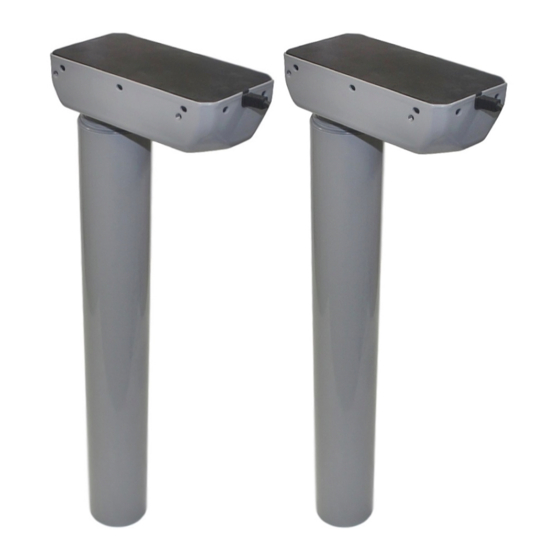

- Page 1 Contents Caution Specifications Dimensional Drawing Components/Setup Operation/Reset Procedure Troubleshooting Model: FLT-10 User Guide...
- Page 2 Caution Warning Ensure no obstacles are in the column's path. Ensure the columns are not touching any walls. Ensure all cords Pinch Point are appropriate length to accommodate the change in Keep hands and fingers clear. height. Keep children away from electric height-adjustable lifting columns, control units, and handsets. There is a risk of injury and electric shock.
- Page 3 Specifications Input Voltage 120 VAC, 60 Hz Output Voltage 24 VDC Stroke 25.5" 350lbs (175 lbs Per Leg) Weight Capacity Speed 1.5"/sec Height Range 22” - 47.5” (without table top) Duty Cycle 10% Max. 2 mins on, 18 mins off Steel Material Certification...
- Page 4 Dimensional Drawing Legs Remote 3.3" 2.8" 2.8" 1.4" 0.2" 22.0" 3.4" 2.0" ˄ ˅ 5.7" 2.2" 2.0" M6X10 5.5" 3.8" 7.6" Ø2.8" 3.8" 7.6" Control Box 1.6" 0.7" 3.5" 3.5" 0.3" 0.1" 10.1"...
- Page 5 Components Control Box & Remote Connector Cables x 2 Lifting Columns x 2 AC Power Cord Setup FLT-10 FLT-10 LIFTING COLUMN [M2] LIFTING COLUMN [M2] 110 VAC FLTCON-2 ˄ ˄ ˄ ˅ ˅ ˅ WIRED REMOTE...
- Page 6 Operation Normal Operation Using the wired remote, press and hold the 'Up' button to raise the table lift. To lower the table lift, press and hold the 'Down' button. The 'Up' and 'Down' buttons are momentary controlled, when they are released, the table lift will stop immediately.
- Page 7 Troubleshooting Troubleshooting Guide Problem Possible Cause Corrective Action Low power mode Press any button on the remote and LED will activate. activated Remote LED is off. Disconnect and reconnect the RJ-45 remote connector. Ensure connection is Connection issue secure and cable is not damaged. Follow "Setting Limit Switches"...
