Contents Caution Specifications Dimensional Drawing Components/Setup Operation/Reset Procedure Troubleshooting Model: FLT-06 User Guide... -
Page 2: Caution
Caution Warning Ensure no obstacles are in the column's path. Ensure the columns are not touching any walls. Ensure all cords Pinch Point are appropriate length to accommodate the change in Keep hands and fingers clear. height. Keep children away from electric height-adjustable lifting columns, control units, and handsets. There is a risk of injury and electric shock. -
Page 3: Specifications
Set the numbered buttons on the Smart Remote for quick and seamless adjustment. *When using the FLT-06 with the included control box, the stroke size will be 24.5" due to the safety feature built into the control box. -
Page 4: Dimensional Drawing
Dimensional Drawing Legs 3.2" 2.8" 0.4" 2.0" M6X10 Remote 3.3" 0.2" 1.4" 3.4" 2.0" 3.2" 2.0" 22.0" ˄ ˅ M8X10 0.6" 5.7" 2.2" 1.6" 2.5" 0.6" 6.6" 2.0" M6X10 3.8" 7.6" Control Box 1.6" 0.7" 3.5" 3.5" 0.3" 0.1" 10.1"... -
Page 5: Components/Setup

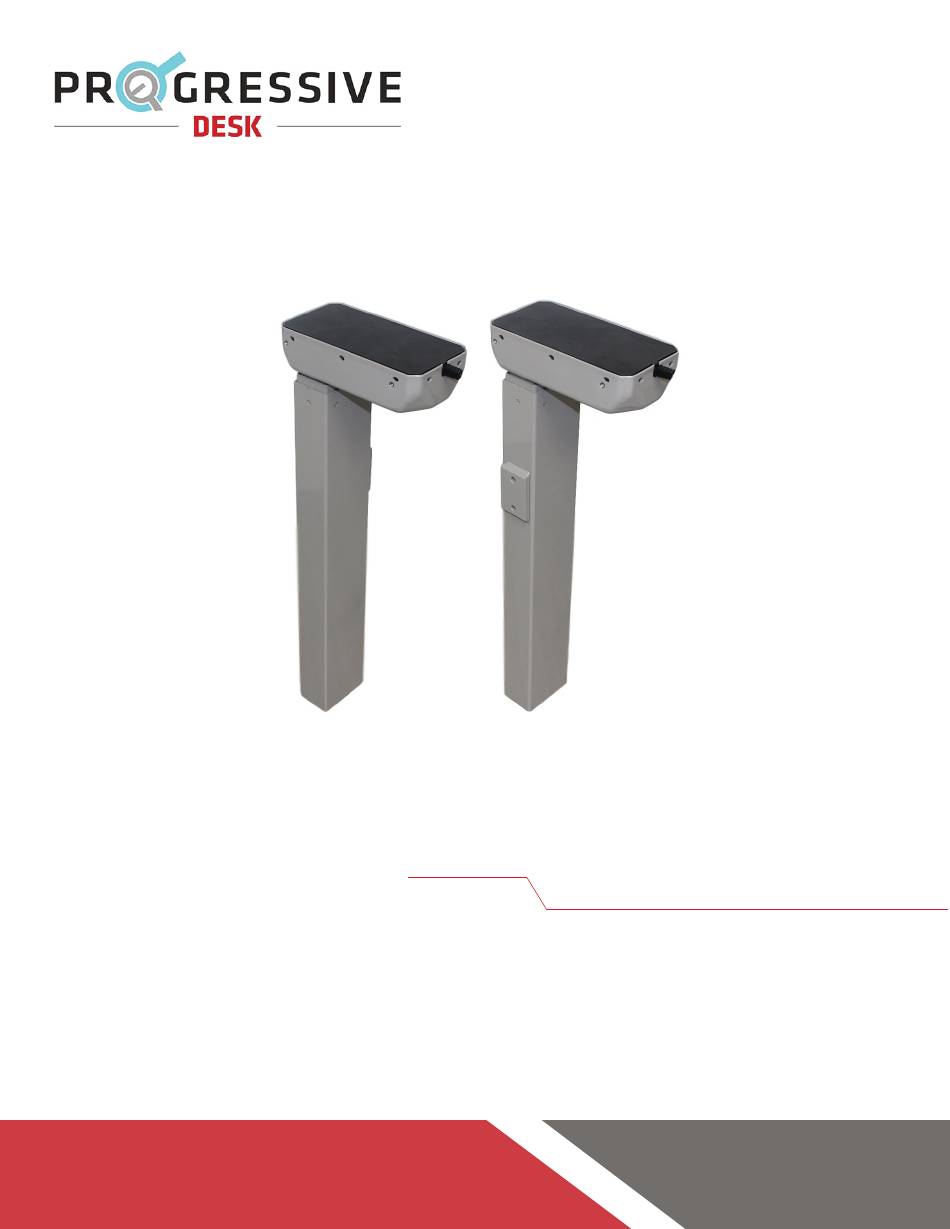

Components Control Box & Remote Connector Cables x 2 Lifting Columns x 2 AC Power Cord Setup FLT-06 FLT-06 LIFTING COLUMN [M1] LIFTING COLUMN [M2] 110/240VAC FLT-06 CONTROL BOX ˄ ˄ ˄ ˅ ˅ ˅ WIRED REMOTE... -
Page 6: Operation/Reset Procedure
Operation Normal Operation Using the wired remote, press and hold the 'Up' button to raise the table lift. To lower the table lift, press and hold the 'Down' button. The 'Up' and 'Down' buttons are momentary controlled, when they are released, the table lift will stop immediately. -
Page 7: Troubleshooting
Troubleshooting Troubleshooting Guide Problem Possible Cause Corrective Action Low power mode Press any button on the remote and LED will activate. activated Remote LED is off. Disconnect and reconnect the RJ-45 remote connector. Ensure connection is Connection issue secure and cable is not damaged. Follow "Setting Limit Switches"...
