Assembly Instructions

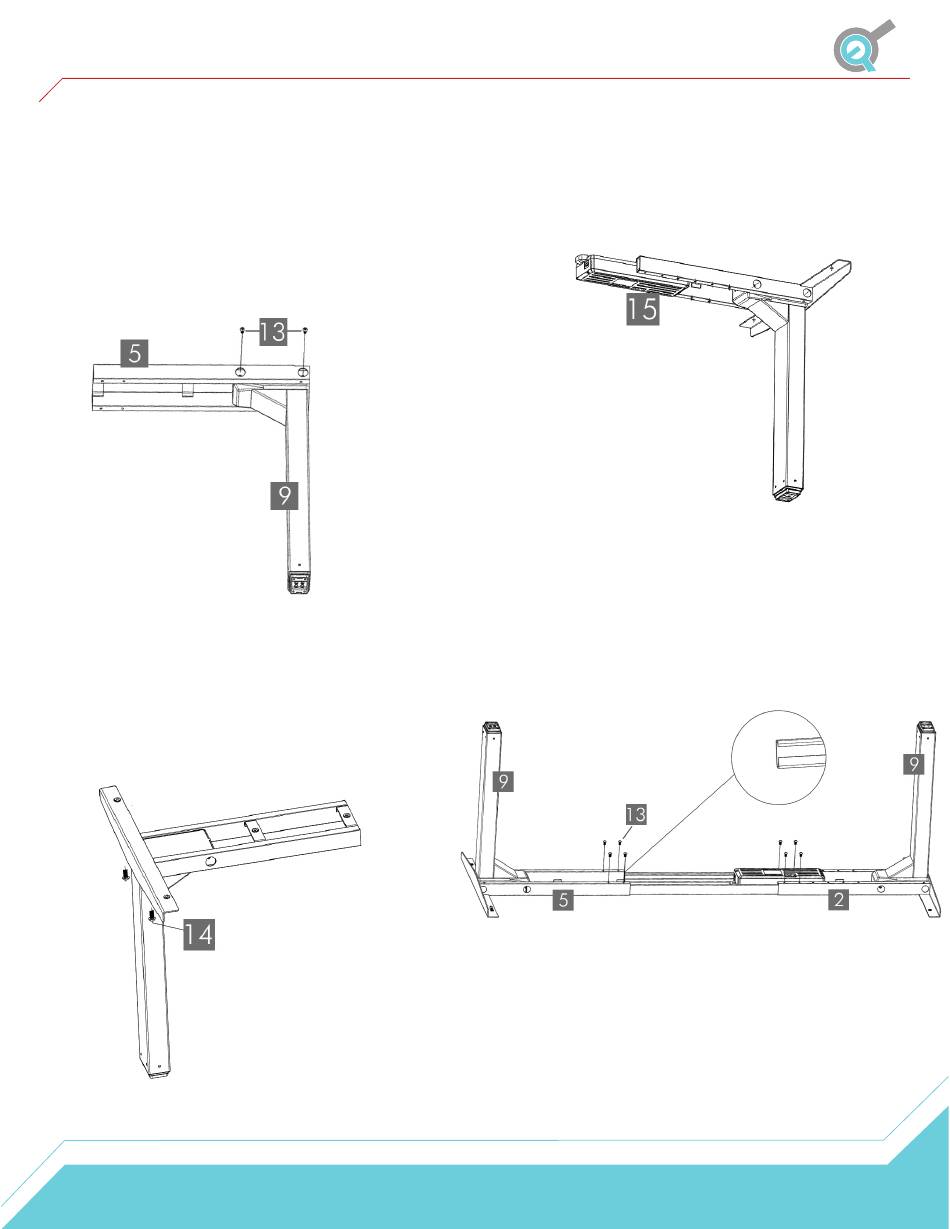

STEP 1
Place one of the Legs (9) into the Frame 3 (5) and
line up the holes. Using the supplied Allen Wrench,
insert four M6x10 Machine Screws (13) through the
holes in the Frame (5), going through into the Leg (9)
and rotate each screw just a few turns. Once all four
screws are inserted, tighten them.
Do the same for the other Legs (9) and the other
Frames (2 & 3).
STEP 2
Take a Side Bracket (4) and slide it into a Frame (5).
Insert two M6x14 Machine Screws (14) through the
two holes in the top of the side bracket going into the
assembled frame end/leg. Using the supplied Allen
Wrench, rotate each screw just a few turns. After both
screws are inserted, tighten them.
Do the same for the other assembled frame end/legs.
STEP 3
Frame 1 (2) should be placed on the side of the desk
where you are planning to mount the Control Box (15).
Slide the Control Box into the Frame (2)
STEP 4
Slide the two Center Rails (7) into the two Frames (2 & 5).
Ensure that the slots in the Center Rails face inward and
that they are closer to the top edge when the assembly is
upside down (see image below).
Lock the position of the Center Rails (7) using eight M6x10
Machine Screws (13).
