progressive automations flt-05 Assembly Instructions Manual

Table lift set – 3 legs – 3 step – stroke size 25.5”
Hide thumbs Also See for flt-05:

Advertisement

Quick Links

Download this manual See also: User Manual
FLT-05

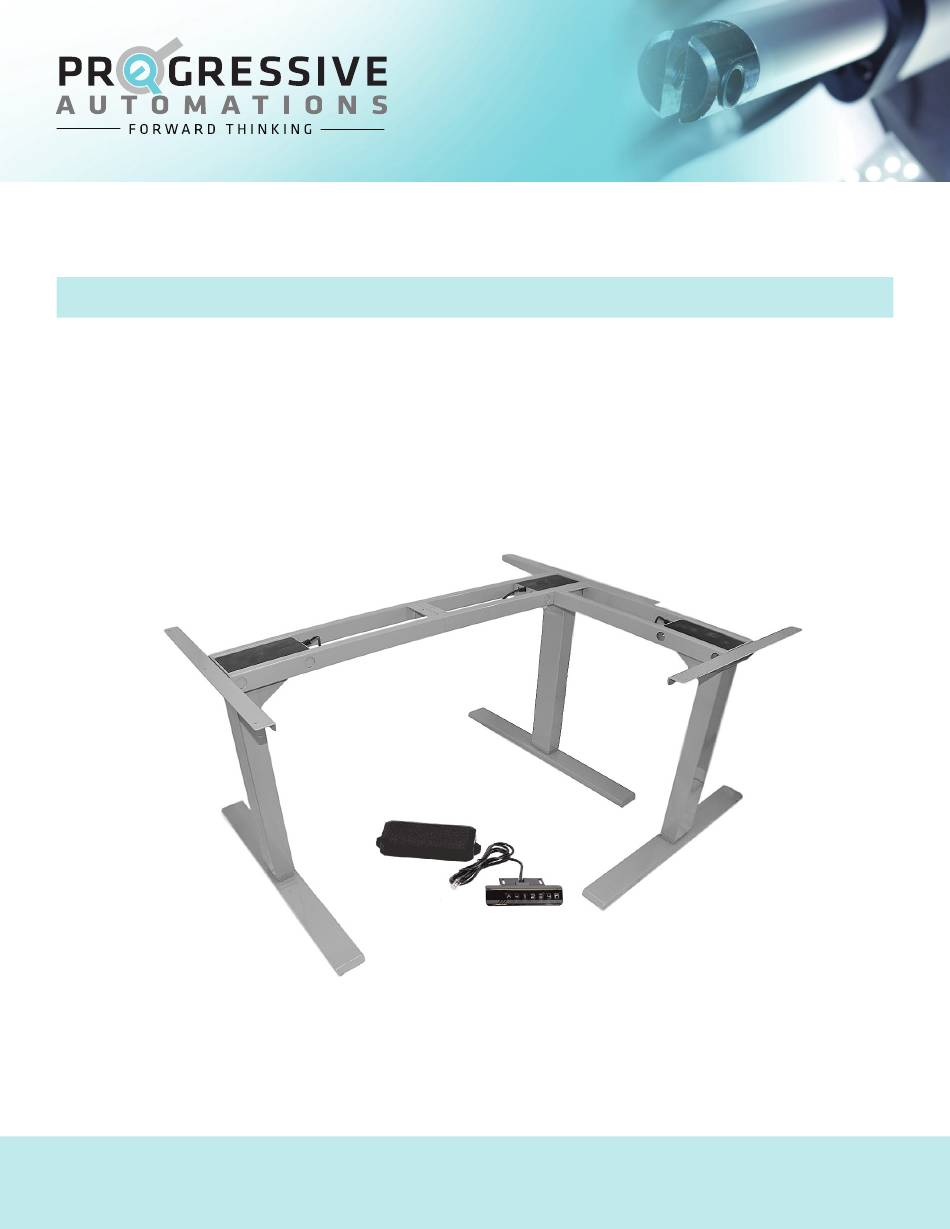

TABLE LIFT SET – 3 LEGS – 3 STEP – STROKE SIZE 25.5"
The FLT-05 is a three-column table lift set with a 25.5" stroke size and 330 lbs of
force. This model comes with a power supply and an interactive remote with four
programmable preset functions. It comes with everything needed for installation.
Table top is not included.
HOW TO ORDER
1.800.676.6123
|
sales@progressiveautomations.com
|
www.progressiveautomations.com
Page 1 of 7

Advertisement

loading
Need help?

Need help?

Do you have a question about the flt-05 and is the answer not in the manual?

Questions and answers

Related Manuals for progressive automations flt-05

Summary of Contents for progressive automations flt-05

  • Page 1 TABLE LIFT SET – 3 LEGS – 3 STEP – STROKE SIZE 25.5” The FLT-05 is a three-column table lift set with a 25.5” stroke size and 330 lbs of force. This model comes with a power supply and an interactive remote with four programmable preset functions.
  • Page 2 CAUTION/INFORMATION USE/LIABILITY Page 2 of 7 HOW TO ORDER 1.800.676.6123 sales@progressiveautomations.com www.progressiveautomations.com...
  • Page 3 PARTS Crossbar end x2 Crossbar end-CB Side Bracket x3 Center Rail x2 Foot x3 Remote Cable (1.3m) x2 Control Box Cable Clip x15 Power Cord Handset Machine Screw Machine Screw Machine Screw Wood Screw Wood Screw M6x35 M6x14 M6x10 ST5x15 ST5x20 Remote Page 3 of 5...
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 1 STEP 4 Before starting lay out all the components and hardware to Take the Side Bracket (P5) and insert four M6x14 ensure you have everything listed on the Parts page. Machine Screws (P10) through the four holes going into Separate the Crossbar Ends (P3) so you can remove the the assembled Crossbar End/Leg.
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 6 STEP 9 Attach a Foot (P2) to the bottom of each Leg (P1) using If your table top is pre-drilled go ahead to Step 10 and four M6x14 Machine Screws and tighten them until fully come back to this after. secure.
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 10 STEP 11 Connect the Cables (P9), Remote (P7) and the Power Cord Caution: Double check that the wood (P8) to the Control Box (P6). Use the adhesive backed screws are not too long for your table top Cable Clips (P14) to secure the Cables and Remote cable and won’t puncture the surface once so they aren’t loose.

  • Page 7: Dimensional Drawing

    DIMENSIONAL DRAWING 22.6" 2" 49" 23.5" 1.2" 27.5" 70.9" 40.1" HOW TO ORDER 1.800.676.6123 sales@progressiveautomations.com www.progressiveautomations.com...

  • Page 8: Troubleshooting

    TROUBLESHOOTING TECHNICAL SPECIFICATIONS Height Range 23.5’ - 49” (without desktop) Base Width 40.1” min. - 70.9” max. Travel Speed 1.5” per second (no load) Weight Capacity 330 lbs (110 lbs per leg) Duty Cycle 10% Max. 2 mins on, 18 mins off Features Soft start/stop Adjustable leveling studs...
  • Page 9 SETTING UPPER & LOWER LIMITS Upper Limit To set the upper limit, use the UP/DOWN buttons to move the table lift to your desired max height position. Once it is at the desired position, press and hold the "M" until the LED display flashes "S-"...
  • Page 10 MODIFIYING LED DISPLAY Press the DOWN button on the Hand Remote until the base reaches its lowest position. Measure the height of the base from the floor and if the number on the LED display does not match your measurements, follow the steps below: Press and hold the DOWN button again until the LED display reads "RST".
