Page 1: Table Of Contents

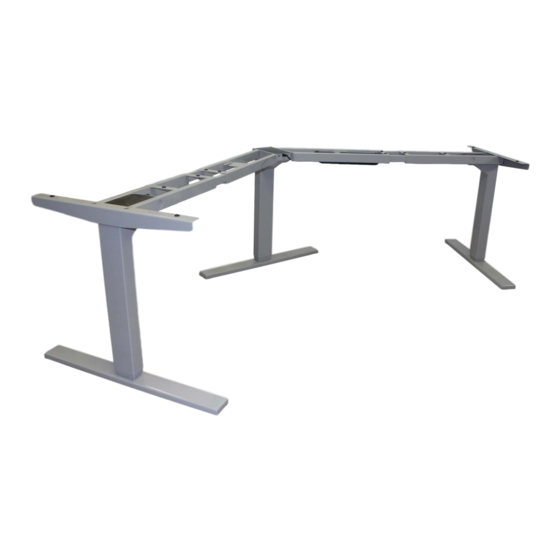

Contents Caution Specifications Dimensional Drawing Components Assembly Operation Reset Procedure Troubleshooting Model: FLT-09 User Guide... -
Page 2: Caution
Caution Warning Ensure no obstacles are in the desk's path. Ensure the Pinch Point tabletop is not touching any walls. Ensure all cords are Keep hands and appropriate length to accommodate the change in height. fingers clear. Keep children away from electric height-adjustable desks, control units, and handsets. There is a risk of injury and electric shock. -
Page 3: Specifications
Specifications Input Voltage 120VAC, 60 Hz Output Voltage 24VDC Stroke (movement) 25.5" 23.5” - 49” Height Range (without tabletop) Weight Capacity (load) 330 lbs (110 lbs per leg) No Load Speed 1.57"/s Full Load Speed 1.18"/s Duty Cycle 10% (2 minutes on, 18 minutes off) Operating Noise <... -
Page 4: Dimensional Drawing
Dimensional Drawing 22.6" 2" 1.2" 27.5" *Feet and column style may vary slightly... -
Page 5: Components
Components Tools 4mm Allen Wrench (included) Phillips Head Screwdriver Tape Measure and/or Power Drill Parts Parts Diagram Description Feet Side Bracket Frame 1 Frame 2 Center Rail 120° Frame 1 120° Frame 2 M6x14 Machine Screw M6x10 Machine Screw M6x35 Machine Screw M6x20 Wood Screw M6x16 Wood Screw... -
Page 6: Assembly
Assembly STEP 1 STEP 3 Attach the 120° Frames (7,8) to one of the Legs (3) as shown Slide the Side Brackets (3) into both Frames (4,5). in the picture below. Line up the holes on the Leg with the Attach the brackets using two M6x35 Machine Screws holes on the Frames. - Page 7 Assembly STEP 6 STEP 9 Place the assembled three-leg frame onto the Connect the cable from each Leg (1) directly into the underside of your tabletop. Adjust the width of the frame control box. Use cable extenders when necessary. to fit your tabletop by sliding the two halves apart. Then connect the hand remote cable to the control box.
-
Page 8: Operation
Operation Normal Operation Using the wired remote, press and hold the 'Up' button to raise the table lift. To lower the table lift, press and hold the 'Down' button. The 'Up' and 'Down' buttons are momentary controlled, when they are released, the table lift will stop immediately. -
Page 9: Troubleshooting
Troubleshooting Troubleshooting Guide Problem Possible Cause Corrective Action Low power mode Press any button on the remote and LED will activate. activated Remote LED is off. Disconnect and reconnect the RJ-45 remote connector. Ensure connection is Connection issue secure and cable is not damaged. Follow "Setting Limit Switches"...
