2.1

Transport and Unpacking

When accepting a delivery, please check the packaging for visible transportation
damage and check the delivery for completeness by comparing it with your order
form. If you notice any shipping damage or inconsistencies between the contents and
your order, please inform the responsible delivery service immediately. During trans-
portation, the TPC system should be protected from excessive mechanical stress. If
the TPC system is transported or stored without packaging, shocks, vibrations, pres-
sure, and moisture may impact the unprotected unit. Additionally, damaged packag-
ing indicates that ambient conditions have already had a massive impact on the
device. Therefore, please use the original packaging during transportation and stor-
age. If the TPC system is transported in cold weather or is exposed to extreme varia-
tions in temperature ensure that moisture (condensation) does not build up on or
inside the HMI device. Moisture can result in short circuits and damage to the device.
To avoid this, store the TPC system in a dry environment and bring the system to
room temperature before powering it up. If condensation occurs, a delay time of
approximately 12 hours must be allowed to ensure that the system is completely dry
before being switched on.
2.2

System configuration

TPC-71W is a compact touch panel with IIoT functions for industrial applications. The
system setup will be completed by the dealer or system integrator prior to delivery.
However, users may still need to access the system to adjust configuration, such as
the interface or boot modes. Before powering on, please open the rear bracket and

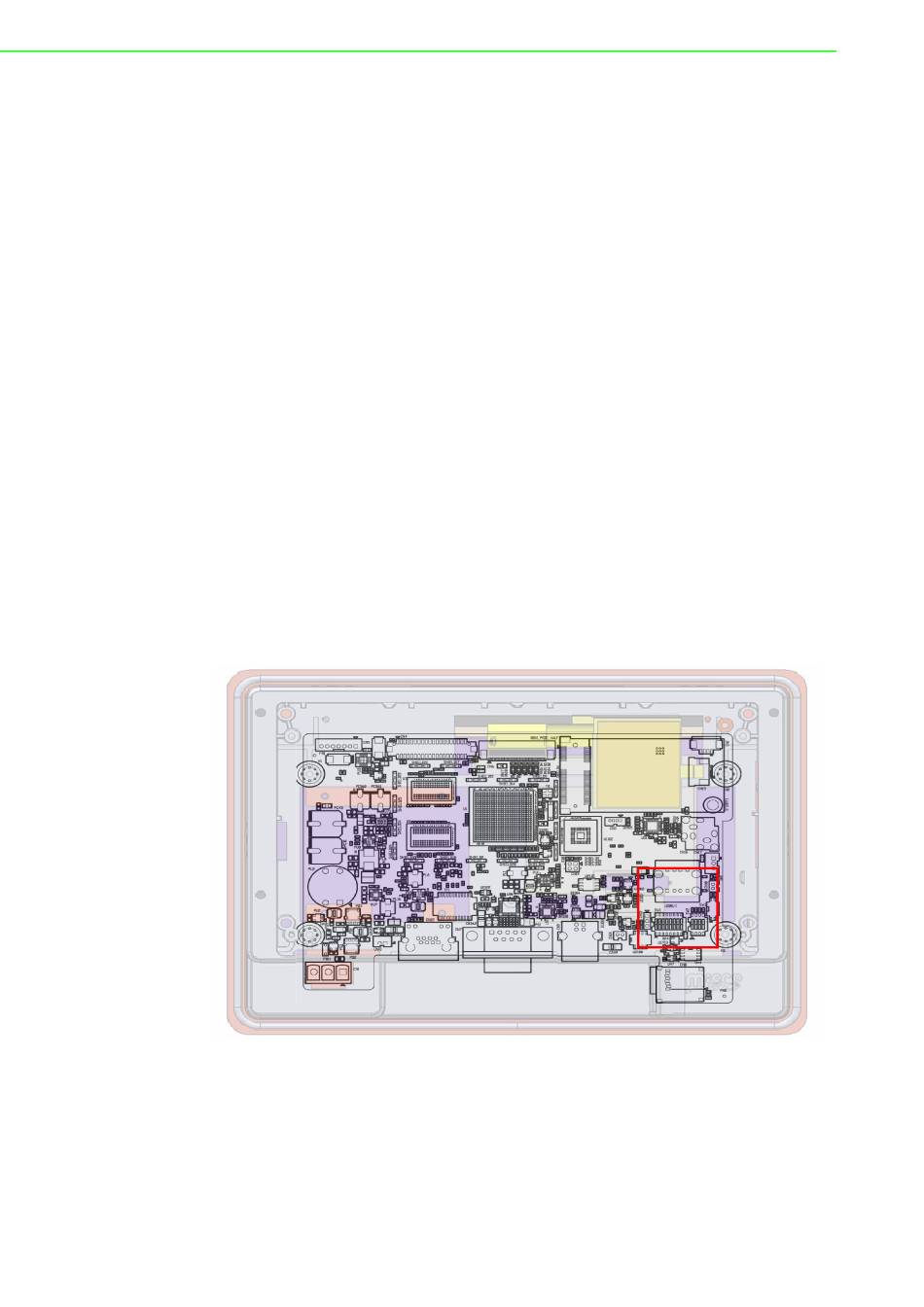

select the correct mode. Configuration can be set via the switch on the TPC-71W
rear board as shown below.
The default setting is RS232 mode and eMMC Boot. Kindly refer to the following pin
definition table for mode switch.
