Installation
4.
4.1
The colorCONTROL MFA-5 can be mounted both on the top side as well as on the bottom side of your test
set-up.
i

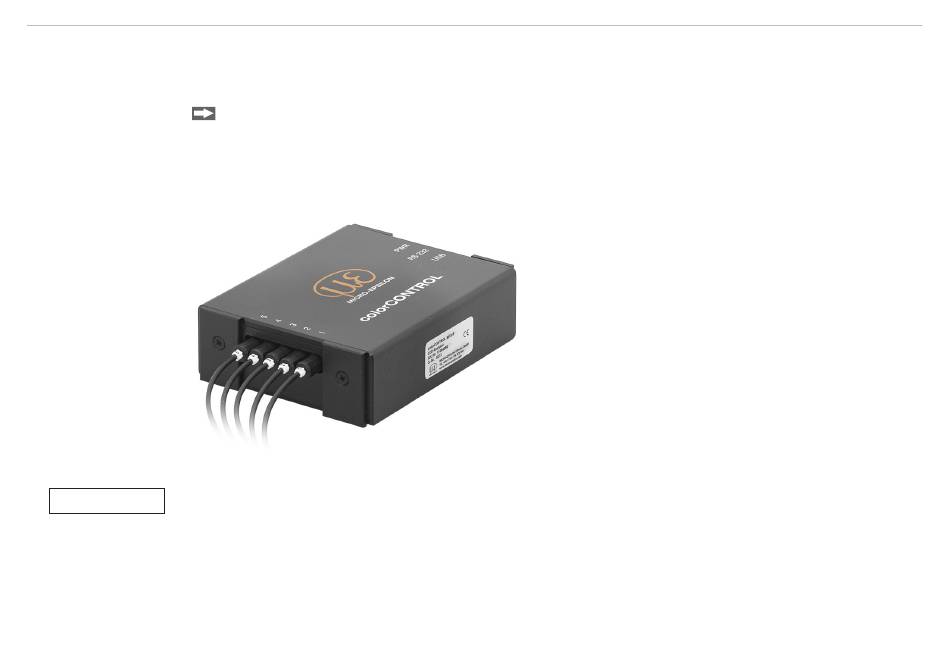

Fig. 1 colorCONTROL MFA-5
Ensure during the installation of the colorCONTROL MFA-5 that the optical fibers can move freely and are not
NOTICE
exposed to any sharp bending and sharp corners.
> Damage to or destruction of the optical fiber; partial failure of the sensor
> Influence of the test result
The smallest radius of the optical fiber is 25 mm.
i
colorCONTROL MFA-5
Installation
Installation of the colorCONTROL MFA-5
Mount the sensor in your test set-up using four M3 screws.
Ensure careful handling during installation and operation.
Ensure that all the light of the LEDs is routed to the color chip in the colorCONTROL MFA-5 by the opti-
cal fiber.
Page 12
