Operation
5.1.2
In order to enable a test over a wide range of illuminance, the sensitivity of the color chip can be adjusted in
two levels:
- High Sensitivity Mode
- Low Sensitivity Mode.
The active photo-diode area receives the light. It is dependent on the selected sensitivity in the center of the
color chip:
- High Sensitivity Mode with 9x9 elements or
- Low Sensitivity Mode with 3x3 elements
Pin no. 1 side
Pin no. 6 side

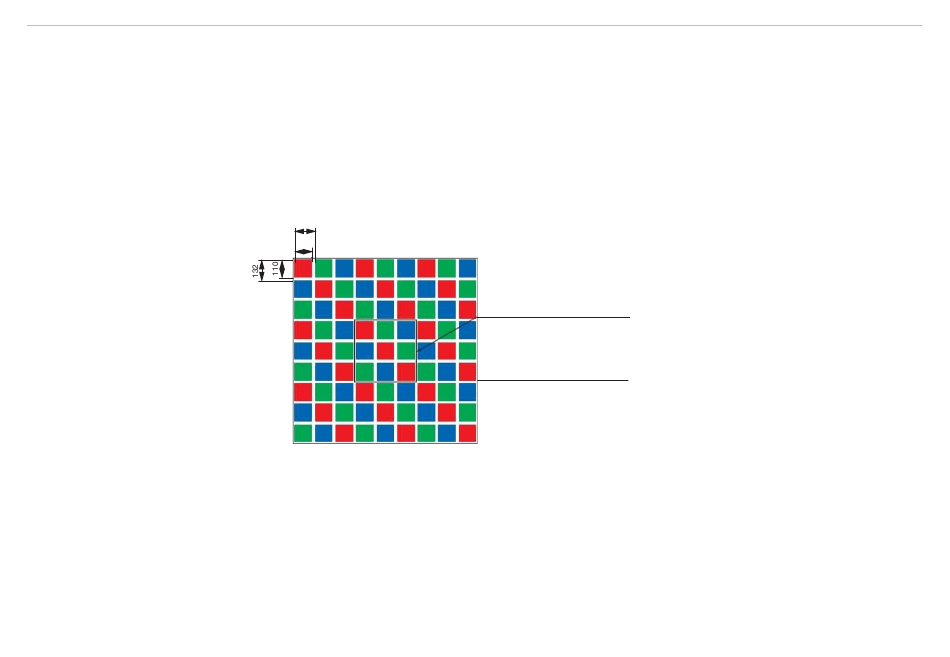

Fig. 17 Color chip of the colorCONTROL MFA-5 with High and Low Sensitivity Mode
In addition to both the High Sensitivity Mode and Low Sensitivity Mode, the light intensity can also be influ-
enced via the measuring time of 1 ms to 10000 ms. The most important settings are shown under "Manual
Capture" test modes. Very dark or very bright LEDs can thus be tested without having to operate additional
mechanical filters.
The color chip tests the colors and the intensity of the LED to be tested in RGB format.
The presentation can be shown in RGBI, HSI and xy or CIE Chromaticity diagram.
colorCONTROL MFA-5

Color Chip of the colorCONTROL MFA-5

132 (5.20)
110 (4.33)
Pin no. 6 side
3 x 3 elements in Low
sensitivity mode
9 x 9 elements in
High sensitivity mode
Pin no. 6 side
