Installation
Lichtleiter

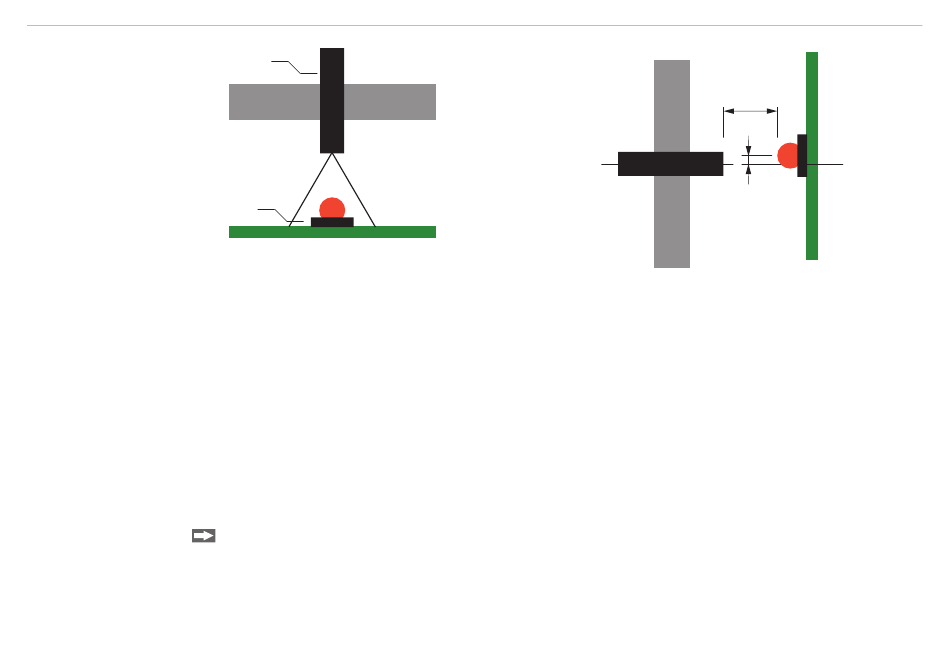

Fig. 4 Positioning of the optical fiber
The intensity of any test depends on the "gap" distance and offset of the LED from the optical fiber.
There are various possibilities for positioning the optical fiber over the LED to be tested:
- Mounting with
- Mounting with a guide sleeve 1 mm in combination with a POF 1 mm optical fiber and a reducer adapter
- Mounting with a clamping collet for thin optical fibers
4.2.2
colorCONTROL MFA-5
LED
ƒ threaded ferrule M4 or
ƒ threaded ferrule M4 + 6 mm attachment lens or
ƒ threaded ferrule M4 + 3 mm converging lens
2.2 to 1 mm
Installation with Threaded Ferrules
Mount the optical fiber using a threaded ferrule M4, threaded ferrule M4 + 6 mm attachment lens or a
threaded ferrule M4 + 3 mm converging lens.
Gap
Lichtleiter
Offset
Fig. 5 Offset und gap
Page 14
