Installation and Assembly

Installation and Assembly
No sharp or heavy objects should be allowed to affect
the cable sheath.
i
A damaged cable cannot be repaired. Tension on
the cable is not permitted!

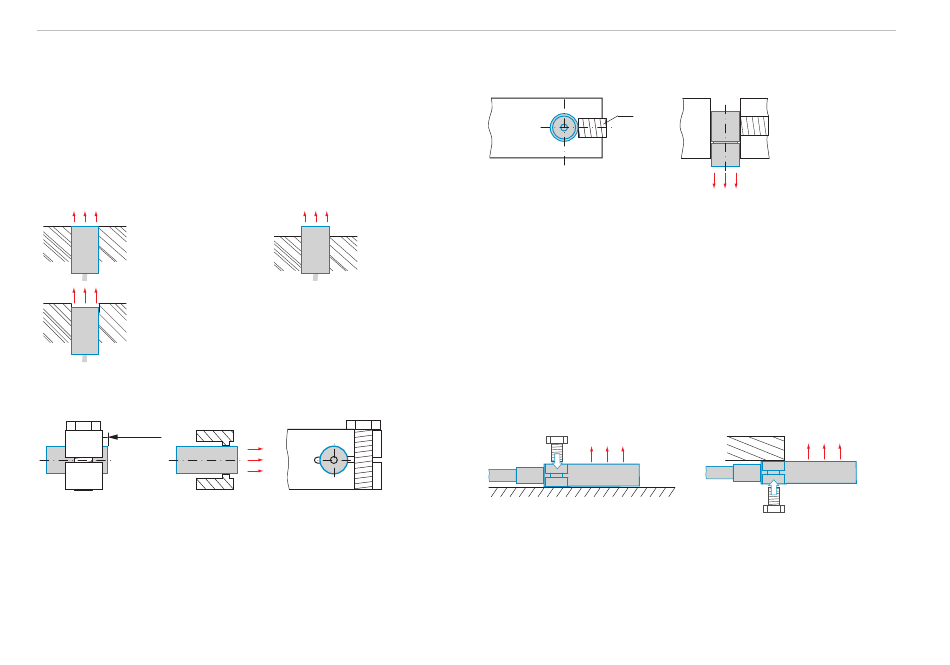

Sensor
Flush
installation
Recessed
installation, not
for sensors in
the CSE series
Clamping Around Circumference, Cylindrical Sensors
3 mm
free
Clamping around circumference, assembly with clamp-
ing collet
- High reliability
- Flat clamping across cylindrical housing
- Recommended assembly for e.g., machines, produc-
tion facilities, etc.
capaNCDT 6110 / 6112 / 6120
Protruding
installation
During installation,
take care that the
sensor front face is not
scratched.
Radial Spot Clamping with Grub Screw, Cylindrical
Sensors
1
Radial spot clamping with grub screw (1)
- Simple mounting option
- Recommended assembly only for installation loca-
tions
that are free of impact or vibration
- The grub screw must be made of plastic
Do not use metal grub screws!
> Risk of damage to the sensor
Flat Sensors
Screwed connection from
top
Screwed connection from
bottom
