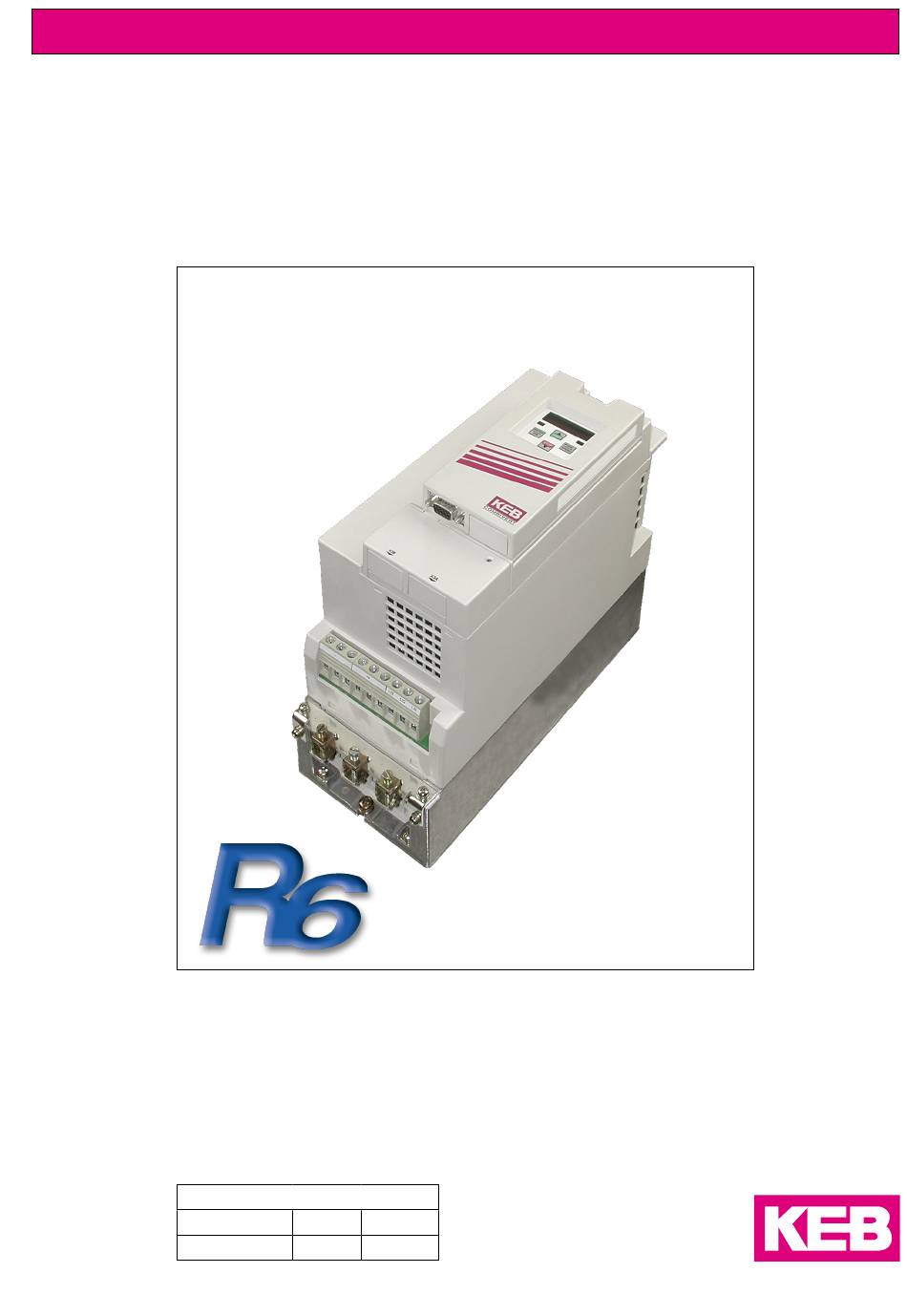

C O M B I V E R T
Programming Manual

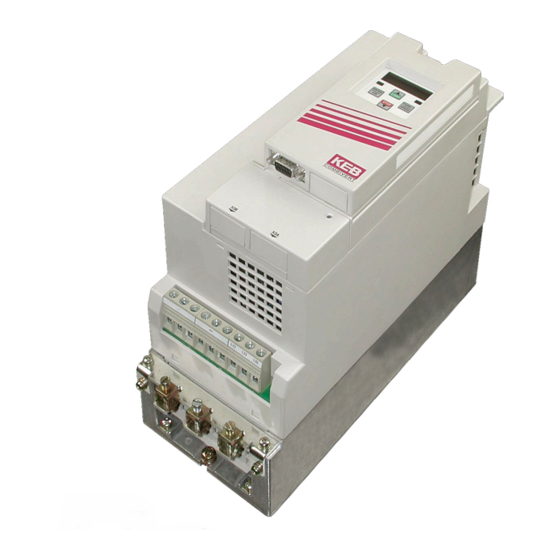

COMBIVERT R6-N
Version 1.3
Translation of the original manual
Document
Part
Version
20129189
GBR
00
