2.4.17

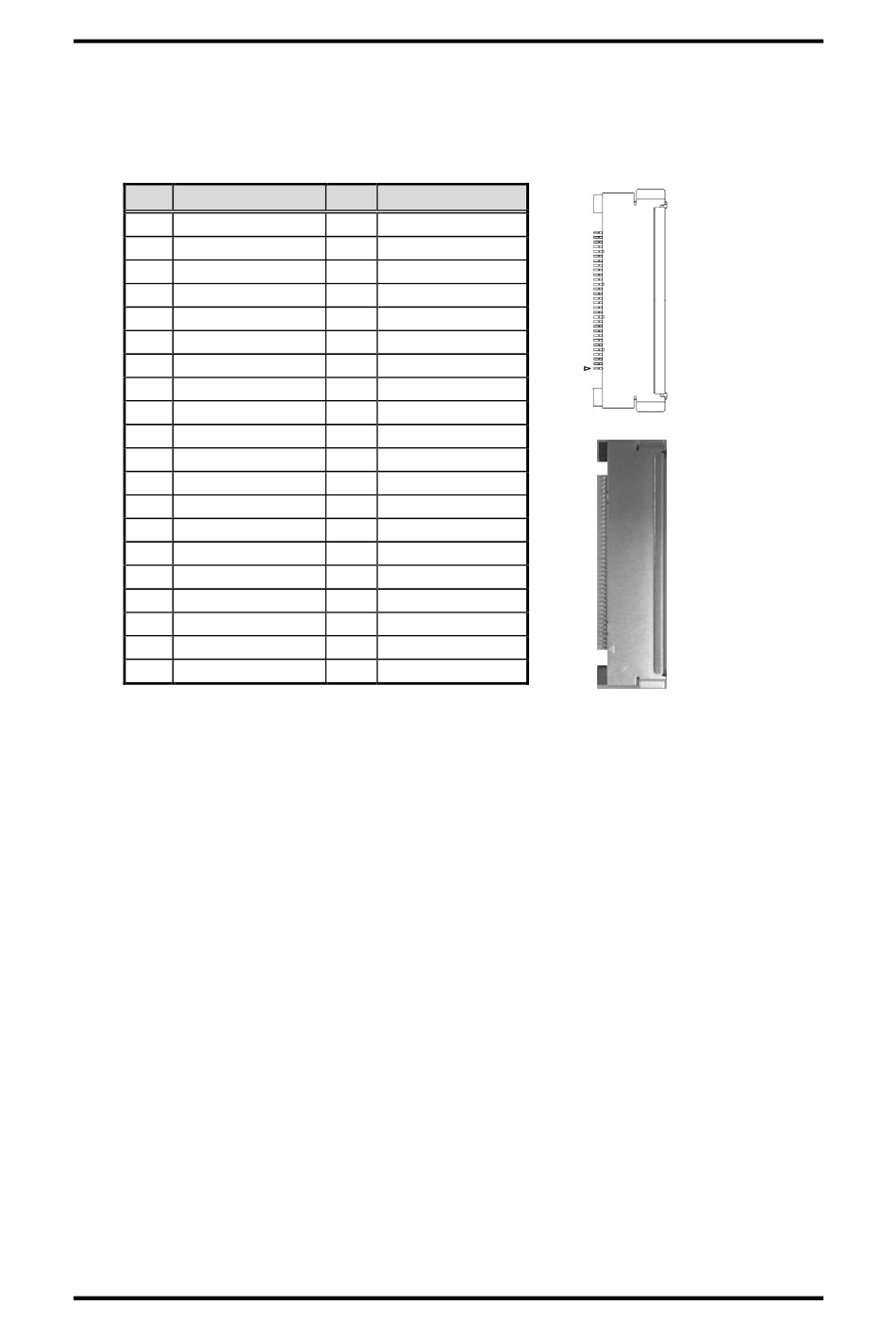

eDP Connector (SCN4)

The eDP interface is available through 40-pin connector (SCN4), which is compliant with
IPEX-20143. Pin 1~4 LCD_VCC can be set to +3.3V, +5V or +12V with JP1 (see section
2.3.1).
Pin Signal
1 LCD_VCC
2 LCD_VCC
3 LCD_VCC
4 LCD_VCC
5 NC
6 LCD_GND
7 LCD_GND
8 LCD_GND
9 LCD_GND
10 HPD
11 High Speed_GND
12 TXN3
13 TXP3
14 High Speed_GND
15 TXN2
16 TXP2
17 High Speed_GND
18 TXN1
19 TXP1
20 High Speed_GND
Board and Pin Assignments
Pin Signal
21 TXN0
22 TXP0
23 High Speed_GND
24 AUXP
25 AUXN
26 High Speed_GND
27 BKLT_GND
28 BKLT_GND
29 BKLT_GND
30 BKLT_GND
31 NC
32 BKLT_CTRL
33 BKLT_EN
34 NC
35 NC
36 BKLT_VCC_12V
37 BKLT_VCC_12V
38 BKLT_VCC_12V
39 BKLT_VCC_12V
40 NC
CAPA315 3.5" Board
40
1
19
