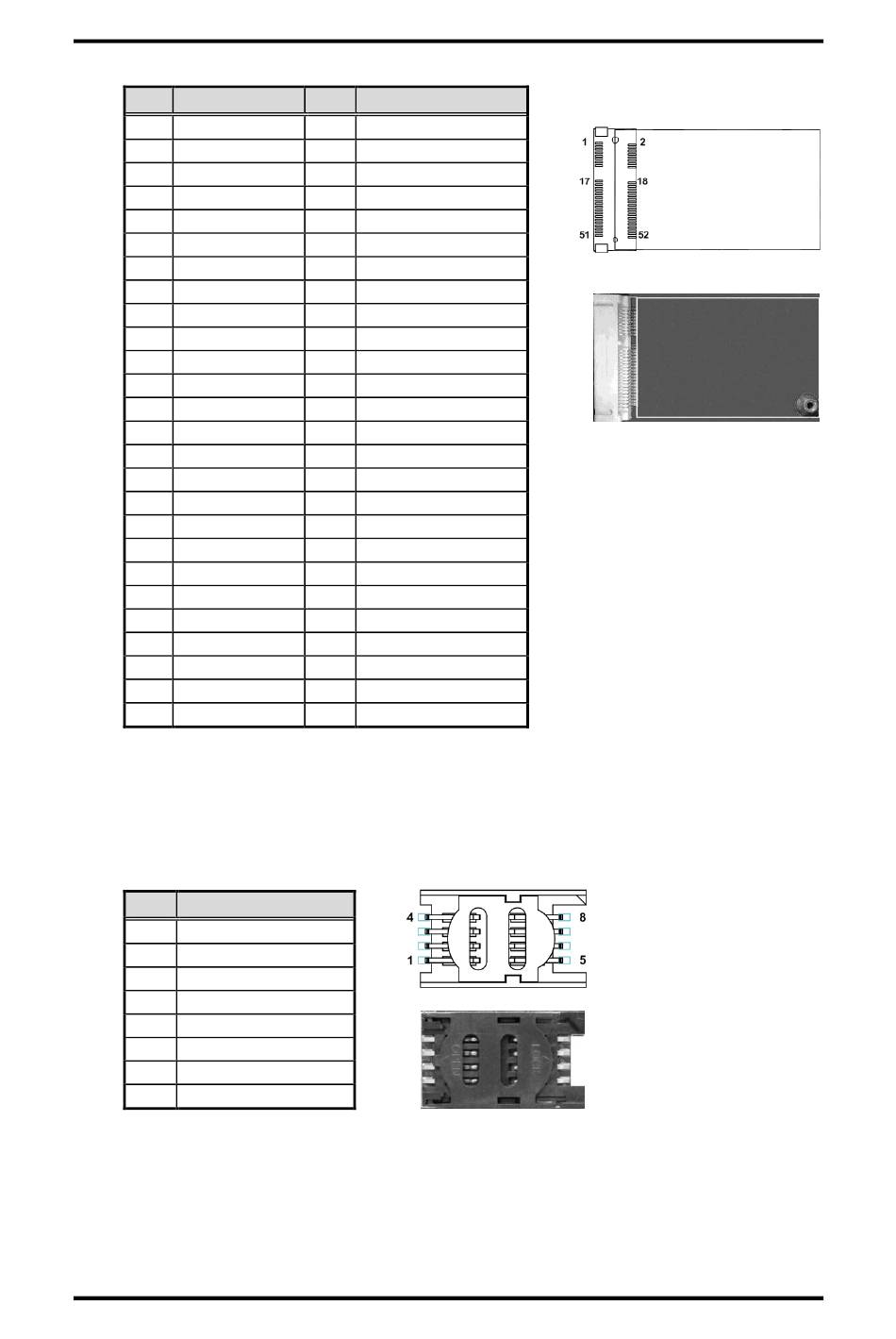

SCN3 (support mSATA and USB 2.0):
Pin Signal
1 N.C
3 N.C
5 N.C
7 N.C
9 GND
11 N.C
13 N.C
15 GND
17 N.C
19 N.C
21 GND
23 SATA1_RXP
25 SATA1_RXN
27 GND
29 GND
31 SATA1_TXN
33 SATA1_TXP
35 GND
37 GND
39 +3.3VSB
41 +3.3VSB
43 GND
45 N.C
47 N.C
49 N.C
51 N.C
2.4.16

SIM Card Socket (SCN2)

The board has SCN2 socket on the bottom side for inserting SIM Card. In order to work
properly, the SIM Card must be used together with 3G module which is inserted to SCN1
or SCN3. It is mainly used in 3G wireless network application.
Pin Signal
1 PWR
2 RST
3 CLK
4 NC
5 GND
6 VPP
7 I/O
8 NC
18
Pin Signal
2 +3.3VSB
4 GND
6 +1.5V
8 SIM_PWR
10 SIM_DATA
12 SIM_CLK
14 SIM_REST
16 SIM_VPP
18 GND
20 W_DISABLE#
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D0-
38 USB_D0+
40 GND
42 N.C
44 N.C
46 N.C
48 +1.5V
50 GND
52 +3.3VSB
Board and Pin Assignments
