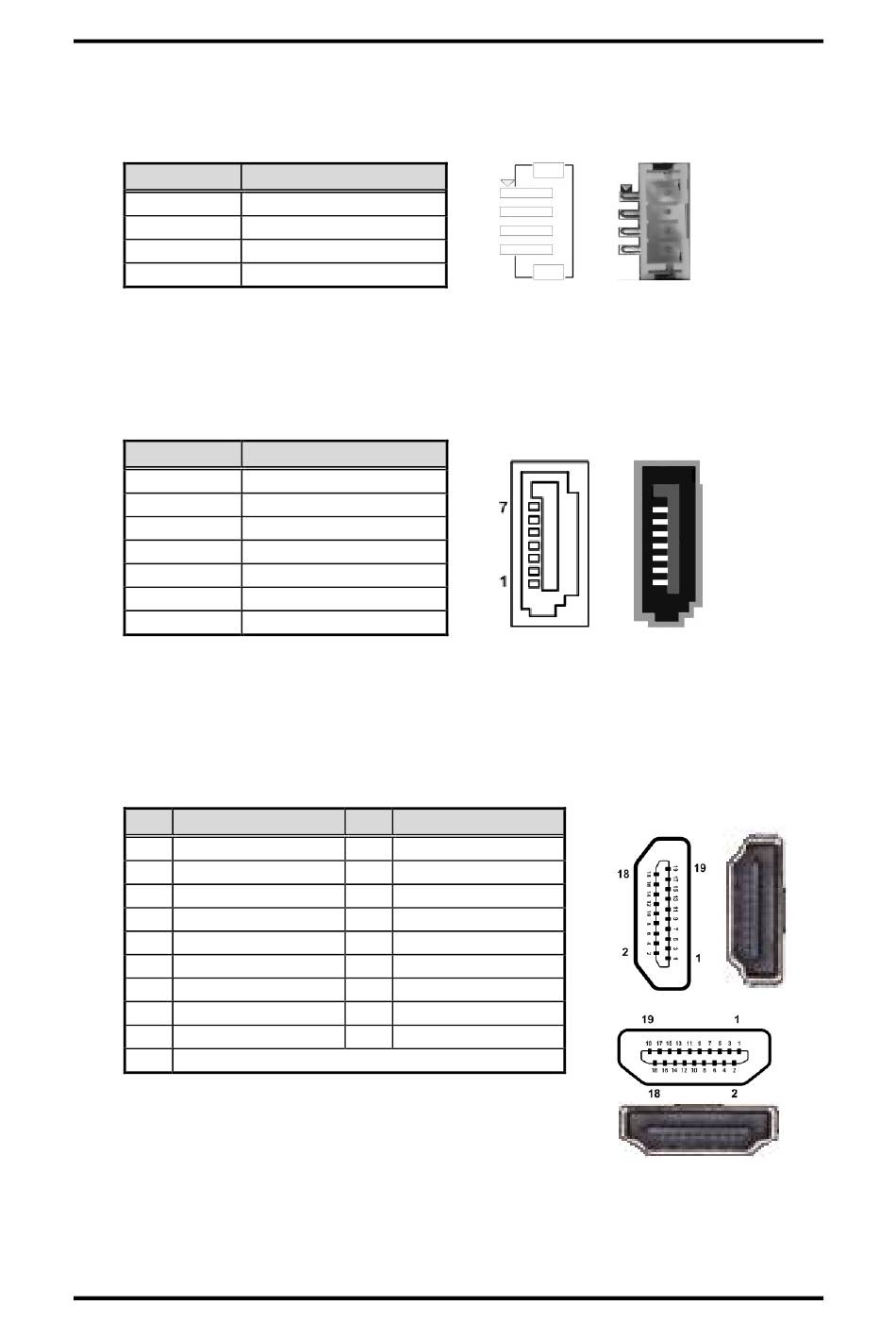

SATA Power Connector (CN12)

This is a 4-pin (pitch=2mm) wafer connector, which is compliant with JST B4B-PH-K-S,
for SATA power interface.
Pin
1
2
3
4
2.4.10

SATA Connector (CN14)

The CN14 is a high-speed Serial Advanced Technology Attachment (Serial ATA or SATA)
interface for connecting to devices such as hard disk drive.
Pin
1
2
3
4
5
6
7
2.4.11

HDMI Connectors (CN16 and CN19)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is
capable of transmitting high-definition video and high-resolution audio over a single
cable. The board comes with two HDMI connectors: CN16 and CN19.
Pin Signal
1 HDMI OUT_DATA2+
3 HDMI OUT_DATA2-
5 GND
7 HDMI OUT_DATA0+
9 HDMI OUT_DATA0-
11 GND
13 N.C.
15 HDMI OUT_SCL
17 GND
19 HDMI_HTPLG
Board and Pin Assignments
Signal
+12V
GND
GND
+5V
Signal
GND
SATA_TXP0
SATA_TXN0
GND
SATA_RXN0
SATA_RXP0
GND
Pin Signal
2 GND
4 HDMI OUT_DATA1+
6 HDMI OUT_DATA1-
8 GND
10 HDMI OUT_Clock+
12 HDMI OUT_Clock-
14 N.C.
16 HDMI OUT_SDA
18 +5V
CAPA315 3.5" Board
