CAPA315 3.5" Board
2.4.12

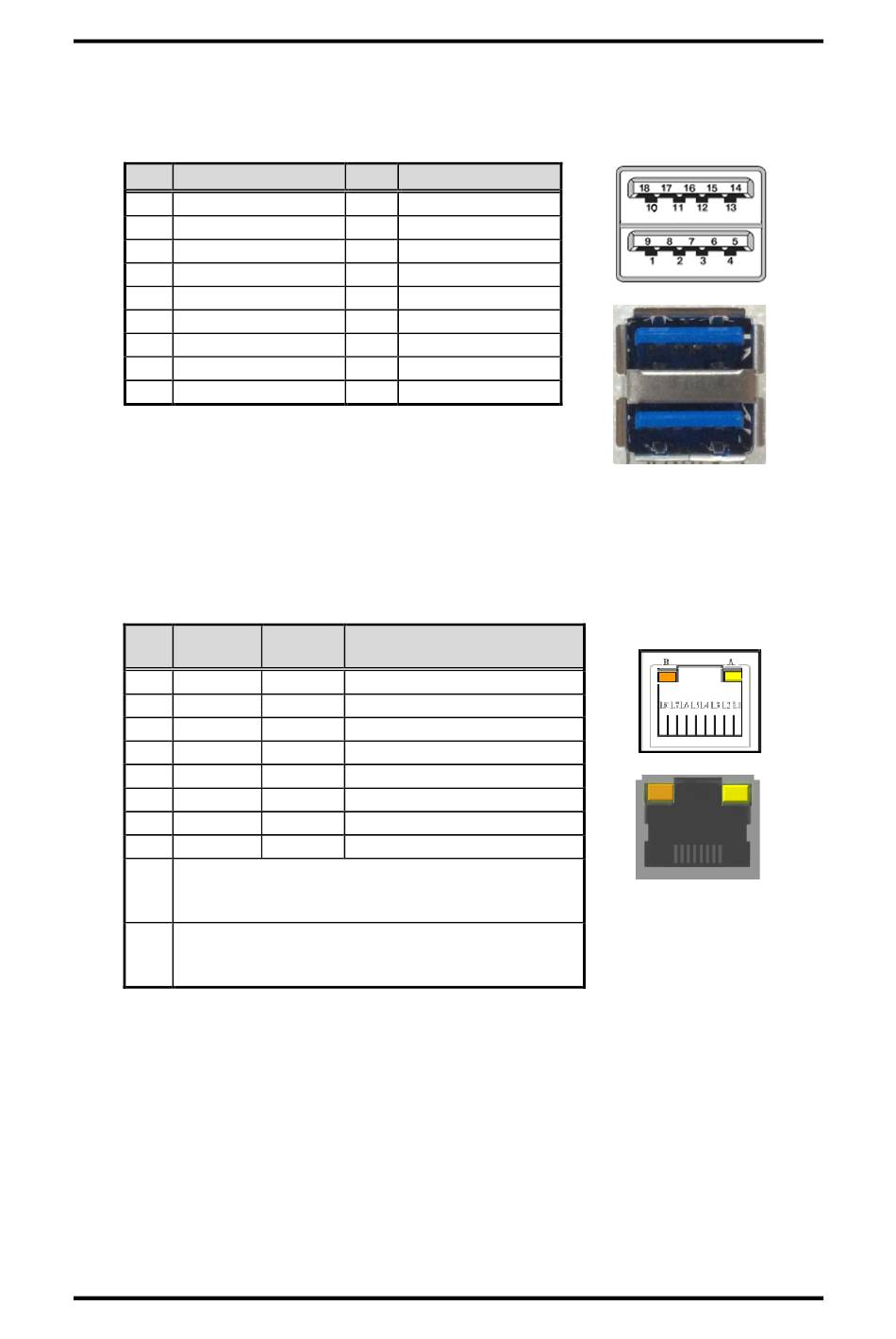

USB 3.0 Ports (CN17 and CN18)

The Universal Serial Bus (compliant with USB 3.0 (5Gb/s)) connector on the rear I/O is
for installing USB peripherals such as keyboard, mouse, scanner, etc.
Pin Signal
1 USB_VCC (+5V )
2 USB #0_D-
3 USB #0_D+
4 GND
5 SSRX0-
6 SSRX0+
7 GND
8 SSTX0-
9 SSTX0+
2.4.13

Ethernet Ports (LAN1 and LAN2)

The board has two RJ-45 Ethernet connectors: LAN1 and LAN2. Connection can be
established by plugging one end of the Ethernet cable into this RJ-45 connector and the
other end (phone jack) to a 1000/100/10-Base-T hub.
1000
Pin
Base-T
L1 BI_DA+
L2 BI_DA-
L3 BI_DB+
L4 BI_DC+
L5 BI_DC-
L6 BI_DB-
L7 BI_DD+
L8 BI_DD-
Active Link LED (Yellow)
A Off: No link
Blinking: Data activity detected
Speed LED
B 1000: Orange
100/10: Green/OFF
16
Pin Signal
10 USB_VCC (+5V )
11 USB #1_D-
12 USB #1_D+
13 GND
14 SSRX1-
15 SSRX1+
16 GND
17 SSTX1-
18 SSTX1+
100/10
Description
Base-T
TX+ Bidirectional or Transmit Data+
TX- Bidirectional or Transmit Data-
RX+ Bidirectional or Receive Data+
N.C. Bidirectional or Not Connected
N.C. Bidirectional or Not Connected
RX- Bidirectional or Receive Data-
N.C. Bidirectional or Not Connected
N.C. Bidirectional or Not Connected
Board and Pin Assignments
