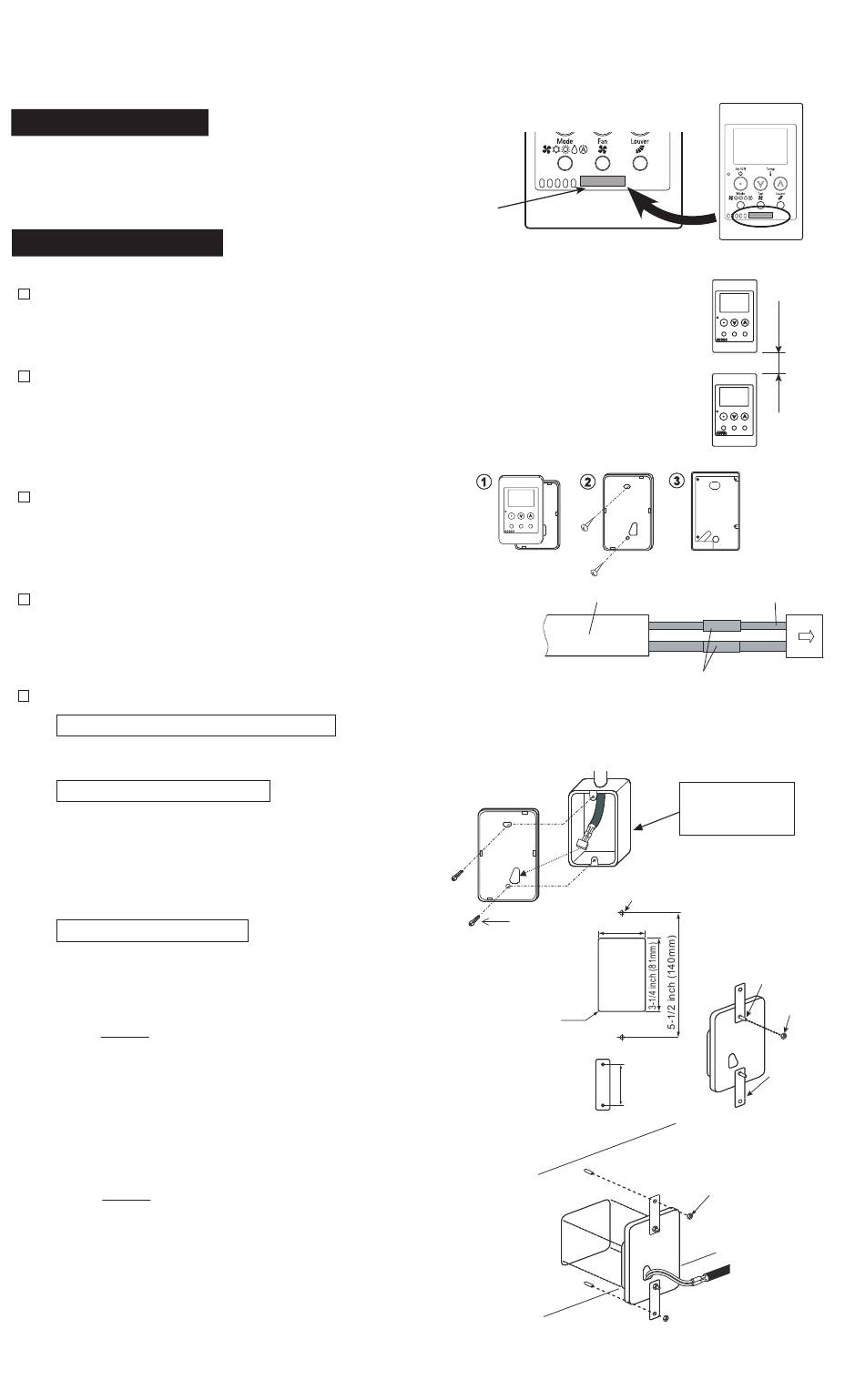

Check the boxes below as you complete each item.
2. Brand Label
Select the accessory brand label according to the
production order.
Attach the accessory brand logo label to "This Area".
3. Installation Work
[3.1 Selection of Installation Place]
1) Select a suitable place for handling and determine the installation place of the controller
with the customer's acceptance. Do not install the controller in locations such as:
● where children can touch ● where the air from the air conditioner is directly discharged
[3.2 Before Installation]
1) This packing contains the following parts.
- Simplifi ed Wired Controller
- Screw <M4x16L>
- Cable with Connector
[3.3 Installation Procedures]
1) Remove the controller from the holding bracket.
2) Connection of cable:
Connect the accessory cable to the fi eld-supplied cable by
soldering. Insulate the connecting part with tape.
3) Attach the controller to the holding bracket and connect the cable as follows.
A. When Exposing Controller Cable
Secure the holding bracket with the cable (accessory) onto the wall using 2-M4 screws (accessory).
B. When Using Steel Box
Prepare steel box (option).
Secure the holding bracket (accessory) on the wall
with 2-M4 screws (fi eld-supplied).
C. When Using a Table
1. Cut an installation hole to expose the controller as shown
in the fi gure at the right.
2. Prepare the bolts.
NOTE:
Determine the bolt layout depending on the
spacers (fi eld-supplied).
3. Place the bolts on the holding bracket and secure the
spacers with the nuts.
- Bolt (fi eld-supplied)
- Nut (fi eld-supplied)
- Spacer (fi eld-supplied)
NOTE:
Allow a distance of more than 2 inches (50mm)
between spacer holes.
4. Remove the front decorative cover and attach the
controller using the installation hole.
P5415520
This Area
Qty: 1 - for operation control
Qty: 2 - for securing the holding bracket onto the wall.
8 inches (20cm)
Field-Supplied Cable
Connection Part
Bolt
Screws
2-3/8 inch (61mm)
4-R2
1-1/4 inch
(30mm)
or more
Spacer
Nut (Field-Supplied)
More than
2 inch
(50mm)
Accessory Cable
Implanted Steel Box
(Option, S size)
Bolt
(Field-Supplied)
Nut
(Field-Supplied)
Spacer
(Field-Supplied)
5
