Operation
Manual
TIMER FILTER DEF
RUN
- C1IRK01 -
EMERGENCY
HEAT
COOL
IMPORTANT:
READ AND UNDERSTAND
THIS MANUAL BEFORE
USING THIS IR RECEIVER KIT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
P5415463

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hitachi C4IRK01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Controls Hitachi C4IRK01

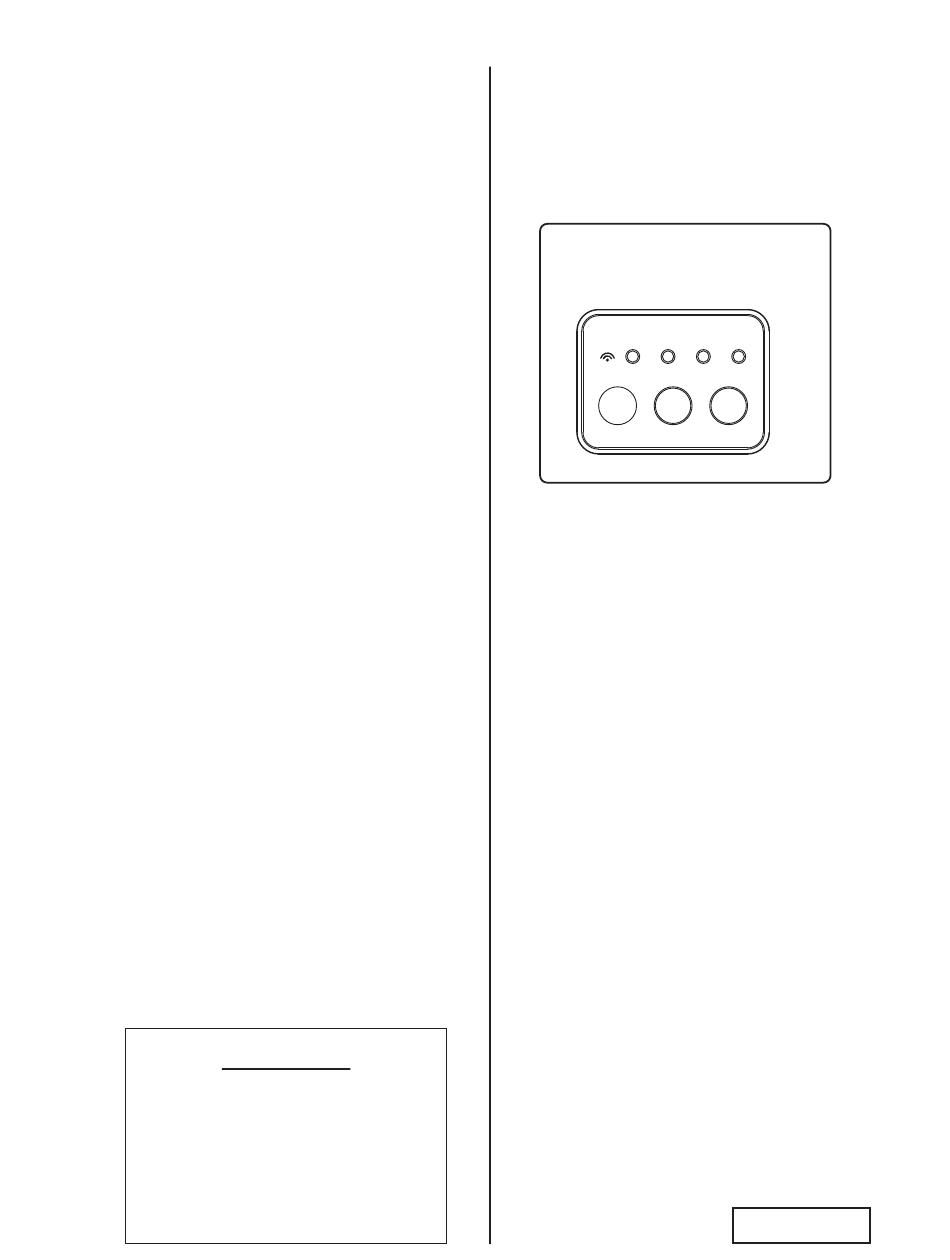

  • Page 1 Operation Manual TIMER FILTER DEF - C1IRK01 - EMERGENCY HEAT COOL IMPORTANT: READ AND UNDERSTAND THIS MANUAL BEFORE USING THIS IR RECEIVER KIT. KEEP THIS MANUAL FOR FUTURE REFERENCE. P5415463...
  • Page 3 TABLE OF CONTENTS 1. Safety Summary ..............................1 2. Before Operation ..............................4 ........................4 .......................4 ............5 .....................5 ........................6 ........................7 ................7 .................7 ..................8 3. Operation .................................9 ............................9 ....10 ............................10 ........................10 ........................... 11 ........................... 11 ....................12 ..........................13 ...........................14 ..................14 ..................14 ......................15 ..........................15 ..............................15 ........................15 ..........................15 .........................16 ..........................16...
  • Page 5 Safety Summary Signal Words General Precautions Refer back to these safety instructions as needed. P5415463-rev.1...
  • Page 6 Installation Precautions P5415463-rev.1...
  • Page 7 Electrical Precautions P5415463-rev.1...
  • Page 8 NOTICE Before Operation P5415463-rev.1...
  • Page 9 WARNING Label Indoor Unit Air Outlet Louver Decorative Panel Unit Data Tag Location Air Inlet Grille for Indoor Unit Model Indicator Light DIP Switch (Inside of IR Receiver Kit) TIMER FILTER DEF EMERGENCY HEAT COOL Buttons for Emergency IR Receiver Operation P5415463-rev.1...
  • Page 10 NOTE ● Reset Button ● Transmitter Point the transmitter towards the indoor unit receiver when sending commands. The transmitting indication on the liquid crystal display (LCD) flashes when sending commands. ● Transmitting Indication: It will turn ON when sending commands with infrared rays. ●...
  • Page 11 NOTE to operate. IR Receiver Kit (IR Receiver Component) Direct Line between Transmitter and IR Receiver Suitable Distance for Transmitting Max. 20ft (6m) ( Wireless Controller The distance for transmitting differs depending on the ceiling height. Refer to the table below for details. IR Receiver Kit (Model: C1IRK01) Ceiling...
  • Page 12 NOTE Beep Instantly Turns ON (yellow) TIMER FILTER DEF IR Receiver EMERGENCY HEAT COOL Wireless Controller P5415463-rev.1...
  • Page 13 Operation NOTE < Start Operation > Direction > < Stop Operation > P5415463-rev.1...
  • Page 14 NOTE <Function> unit. temperature. to 86 P5415463-rev.1...
  • Page 15 Step LCD Indication COOL, DRY HEAT, FAN Auto-Swing Recommended Angle Angle Range Angle Range Auto Recommended High Angle High 2 operation. P5415463-rev.1...
  • Page 16 < Start Operation > < Function > NOTE < Setting Temperature, Fan Speed, and P5415463-rev.1...
  • Page 17 < Stop Operation > NOTE < Function > Timer < Timer Setting > P5415463-rev.1...
  • Page 18 < Cancel Setting > "Identified" Indoor Unit Indoor Indoor Unit A Unit B IR Receiver IR Receiver Kit A Kit B NOTE "A" "B" "Identified" Wireless Controller < Function > Indoor Unit TIMER FILTER DEF EMERGENCY Control Cable Wireless Controller between Indoor Units HEAT...
  • Page 19 Maintenance Wired Controller (CIW01) Wireless Controller (CIR01) Slide the cover in and push the direction of the arrow. AAA Batteries P5415463-rev.1...
  • Page 20 Indications of IR Receiver Kit Operation FILTER P5415463-rev.1...
  • Page 21 Alarm "FILTER" (yellow light) "DEF" (green light) "DEF" flashes three times (0.5 second ON/0.5 second OFF) “FILTER" flashes five times (0.5 second ON/0.5 second OFF) These signals are repeated until the alarm is reset. P5415463-rev.1...
  • Page 22 Troubleshooting Phenomenon Cause and Action Stopped Operation Issue Checking Point Action Not Operating Not Cooling or Heating Well P5415463-rev.1...
  • Page 23 If an abnormality (burnt odor, for example) occurs, stop the operation and turn OFF the main power supply immediately. Otherwise, there may be damage to the product, an electric shock or Contact your distributor. Trouble Action before Contact Provide the following information to the distributor. 1) Model Name 2) Description of Problem 3) Alarm Code Number or Details of Flashing Indicator (Refer to Section 5.2.1 “Abnormality”...
  • Page 24 © 2015 Hitachi-Johnson Controls Air Conditioning, Inc. P5415463-rev.1 Code No. LIT-12012064 Revised January 2020...
