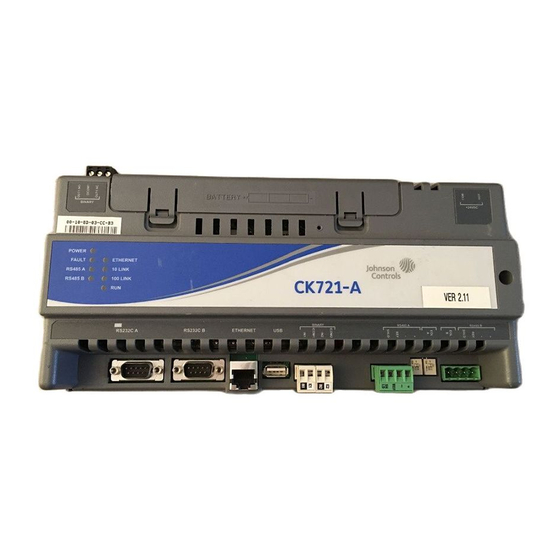

Johnson Controls CK721-A Factory Field Installation
Network controller
Hide thumbs
Also See for CK721-A:
- Installation and operation manual (234 pages) ,
- Factory field upgrade (22 pages) ,
- Upgrade manual (20 pages)
Related Manuals for Johnson Controls CK721-A
Summary of Contents for Johnson Controls CK721-A
- Page 1 CK721-A Network Controller factory field installation version 3.5 24-10025-199 Revision – December 2017...
- Page 2 If this document is translated from the original English version by Johnson Controls, all reasonable endeavors will be used to ensure the accuracy of translation. Johnson Controls shall not be liable for any translation errors contained herein or for incidental or consequential damages in connection with the furnishing or use of this translated material.
-
Page 3: Field Installation
This procedure can be used when a host upgrade cannot be used for installation, for example, when a P2000 host update fails and the controller constantly reboots, or fails to come back online with the host. For standard CK721-A controller firmware upgrade procedures, refer to the CK721-A Software Release Notes. - Page 4 The null modem cable provides an RS-232 serial connection from the CK721-A controller RS232C A port to the computer’s COM port. For CK721-A the connector style is 9-pin D-Sub female. Refer to your computer’s documentation for its connector style. Connector 1 Pinout...
- Page 5 2 RX- Ethernet Straight-through Cable The Ethernet straight-through cable provides a network connection from the CK721-A controller Ethernet port to the computer’s network port via a hub or switch, using RJ-45 modular plugs on each cable end. Connector 1 Pinout...
- Page 6 USB to Ethernet adapter. Connect the other end of the cable to the Ethernet port CK721-A controller. OMPUTER ONFIGURATION Once you have properly connected the computer to the CK721-A controller, you are ready to configure the computer as follows: • Enable file and printer sharing for Microsoft networks •...
- Page 7 Settings). This information enables you to re-configure the computer with the original settings once you have finished upgrading the CK721-A controller. Failure to revert to the original settings may result in computer network issues or other problems related to the configuration changes.
- Page 8 Firmware Version 3.5 Factory Field Installation 24-10025-199 Rev. – The following files are available in the ck721a subdirectories: ./FTP/CK721a/Step1: • 1image-721a-factory-field-ftpd001.bin • load.bat • load1.bat • load2.bat • sendnto.exe ./FTP/CK721a/Step2: • 2image.bin • fs.tar • step2b.sh • step2a.bat • step2a.ftp ONFIGURATION This section provides instructions on configuring Tera Term Pro.
- Page 9 Firmware Version 3.5 Factory Field Installation 24-10025-199 Rev. – To configure Tera Term Pro: 1. Open Windows Explorer. 2. Access the following directory: C:\Program Files\TTERMPRO 3. Delete the TERATERM.INI file. 4. Launch Tera Term Pro. 5. In the Tera Term: New connection dialog box, select Serial and COM1 or COM2 port, depending on the computer COM port you are using.
- Page 10 Firmware Version 3.5 Factory Field Installation 24-10025-199 Rev. – 8. From the menu bar, select Setup > Window. 9. On the Tera Term: Window setup dialog box, change the number of Scroll buffer lines to 10,000 and click OK. 10. From the menu bar, select Setup > Save setup. 11.
- Page 11 Once you set up the computer and Tera Term pro, you are ready to install the CK721-A firmware. : The CK721-A controller will not be operational until the firmware MPORTANT is successfully installed. This condition poses a high security risk to the building and its occupants.
- Page 12 5. Open a command prompt window. 6. Enter the following command and press <Enter>: cd c:\ftp\ck721a\step1 7. If the computer is connected to CK721-A via COM 1, enter the following command and press <Enter>: load1.bat Or, if the computer is connected to CK721-A via COM 2, enter the following command and press <Enter>:...
- Page 13 24-10025-199 Rev. – 8. When the load#.bat procedure is completed, launch Tera Term Pro soon after to establish a serial port session to the CK721-A controller. 9. Using the previously opened command prompt window, type the following command and press <Enter>: cd c:\ftp\ck721a\step2 10.
- Page 14 FTP transfer error messages or warning messages (step 10). See Troubleshooting on page 15 for further help if needed. Then, start over by rebooting the CK721-A controller and downloading the CK721-A firmware installer image files (see Firmware Version 3.5 Installation on page 9).
- Page 15 Firmware Version 3.5 Factory Field Installation 24-10025-199 Rev. – 13. Using the Tera Term Pro window, at the prompt, enter the following to invoke the CK721-A Controller Firmware Installer script: sh step2b.sh...
- Page 16 Firmware Version 3.5 Factory Field Installation 24-10025-199 Rev. – 14. The final logging of the CK721-A controller firmware installation actions appears in the Tera Term Pro window. When the firmware installation process is completed, the CK721-A controller reboots and a Login prompt appears on Tera Term Pro window.
-
Page 17: Troubleshooting
Figure 1: Connections between Computer and CK721-A Controller for reference. Does your computer have Firewall software installed? If so, you must disable it in order to successfully upgrade the CK721-A controller firmware. Did you correctly configure your computer? Review the required changes to your computer settings as listed in Table 1: Computer Settings. - Page 18 8. If needed, modify the network polling delay. Once each controller has been configured for operation, reconnect each controller to the P2000 host. For details on preparing a CK721-A controller for operation and connecting to the host, refer to the CK721-A Network Controller...
- Page 19 ERSION ATABASE OWNLOAD After you reconnect the CK721-A to the P2000 host (controller is online), download all databases to the controller. Refer to the P2000 Software User Manual and the CK721-A Software Release Notes for details. The controller is now ready for normal operation.
- Page 20 Firmware Version 3.5 Factory Field Installation 24-10025-199 Rev. – : Always wait at least 5 minutes after the host download has been completed (that is, after the download queue count goes down to 0), before performing a write to flash operation. CONFIGURING THE OMPUTER After the databases have been downloaded to the controller and the system...
- Page 21 Security Solutions (805) 522-5555 www.johnsoncontrols.com We welcome your comments at BE-techpubs-security@jci.com.
