EX245-SPN3A

①

M4, FE terminal screw (torque = 0.7 - 0.8 Nm)

②

7/8 inch 5 pins plug connector, Power connection (XD1)

③

7/8 inch 5 pins socket connector, Power connection (XD2)

④

M12 4 pins socket D-coded connector, PROFINET connection Port1 (XF1), Port type: MDI

⑤

M12 4 pins socket D-coded connector, PROFINET connection Port2 (XF2), Port type: MDI-X

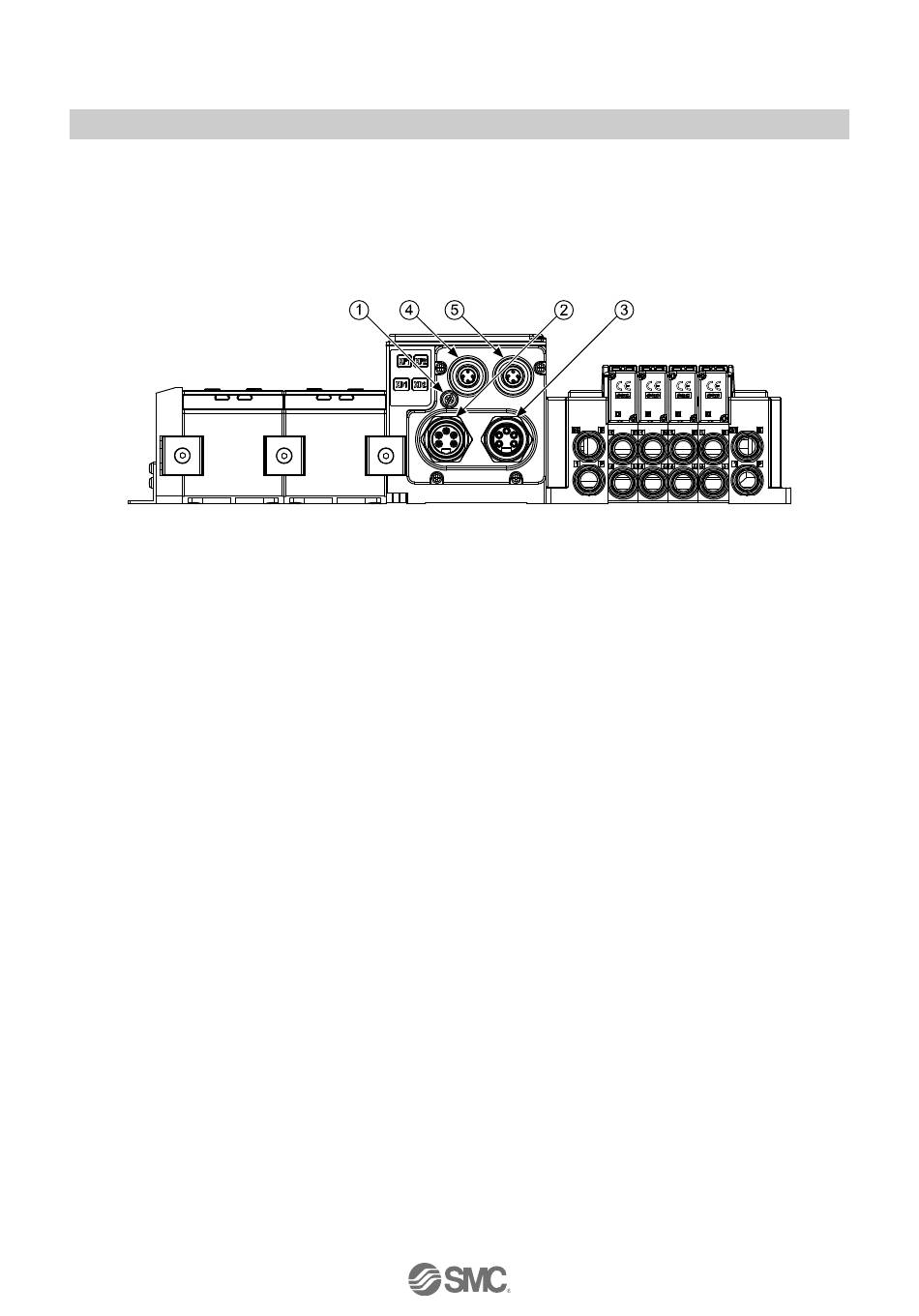

Fig. 3-5 Screw and connector allocation (EX245-SPN3A)

- 16 -

No.EX※※-OMW0011-A
