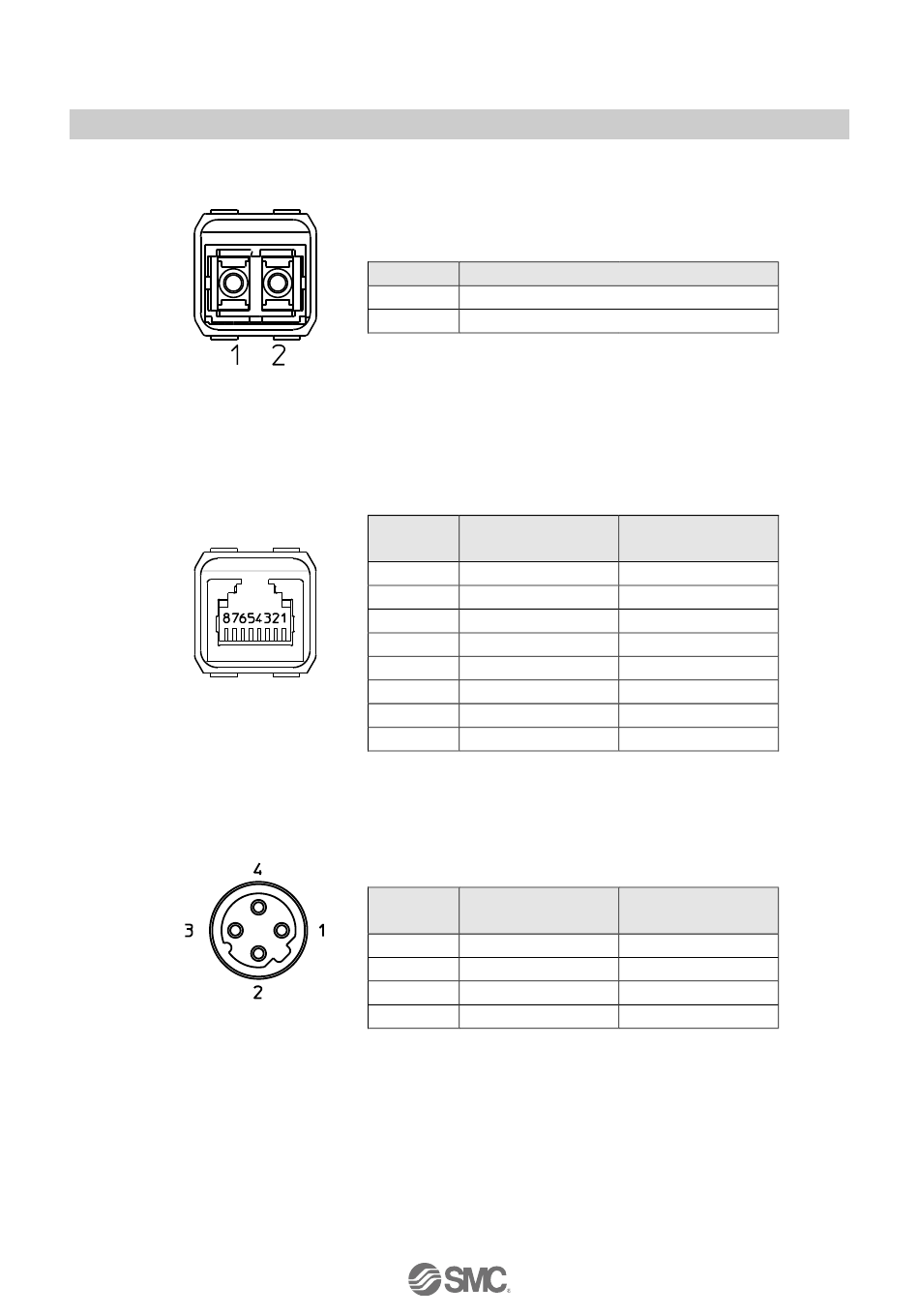

PROFINET communication connectors
View of Push Pull
connector (XF1/XF2)
Fig. 3-8 Pin allocation of Push Pull connector (SCRJ) for EX245-SPN1A
View of Push Pull
connector (XF1/XF2)
Fig. 3-9 Pin allocation of Push Pull connector (RJ45) for EX245-SPN2A
View of M12 4 pins socket
D-coded connector
(XF1/XF2)
Fig. 3-10 Pin allocation of M12 4 pins socket D-coded connector for EX245-SPN3A
Pin
1 TX Transmit Data
2 RX Receive Data
Port1 (XF1)
Pin
Port type: MDI
1
TD+ Transmit data+
2 TD- Transmit data-
3
RD+ Receive data+
4 -
5 -
6 RD- Receive data-
7 -
8 -
Port1 (XF1)
Pin
Port type: MDI
1 TD+ Transmit data+
2 RD+ Receive data+
3 TD- Transmit data-
4 RD- Receive data-
- 18 -
Port1/Port2
Port2 (XF2)
Port type: MDI-X
RD+ Receive data+
RD- Receive data-
TD+ Transmit data+
-
-
TD- Transmit data-
-
-
Port2 (XF2)
Port type: MDI-X
RD+ Receive data+
TD+ Transmit data+
RD- Receive data-
TD- Transmit data-
