3.1.1. Valve manifold connection
Connect the valve manifold with the 2 screws on the SI Unit. (hexagonal socket wrench size 2.5)
For torque value, refer to valve manifold catalogue.
Caution
For a protection rating of IP65 to be ensured, apply the recommended tightening torque and make
sure that the O-ring is positioned correctly on the screw.
3.1.2. Module connection
Connect the SI Unit, the Input/Output modules and the End plate with the 2 modular adaptor assemblies
and a joint assembly. These are grouped together in the Joint pack, refer to the
①
1 x Joint assembly
②
2 x Modular adaptor assembly (hexagonal socket wrench size 2.5, torque = 1.3 Nm)
Caution
・
For a protection rating of IP65 to be maintained, the End plate must be installed on the end of
module side correctly.
・
For a protection rating of IP65 to be ensured, modular adaptor assemblies and joint assembly
must be installed between each module correctly.
To prevent the modules and assemblies being damaged, apply the recommended tightening
・
torque.

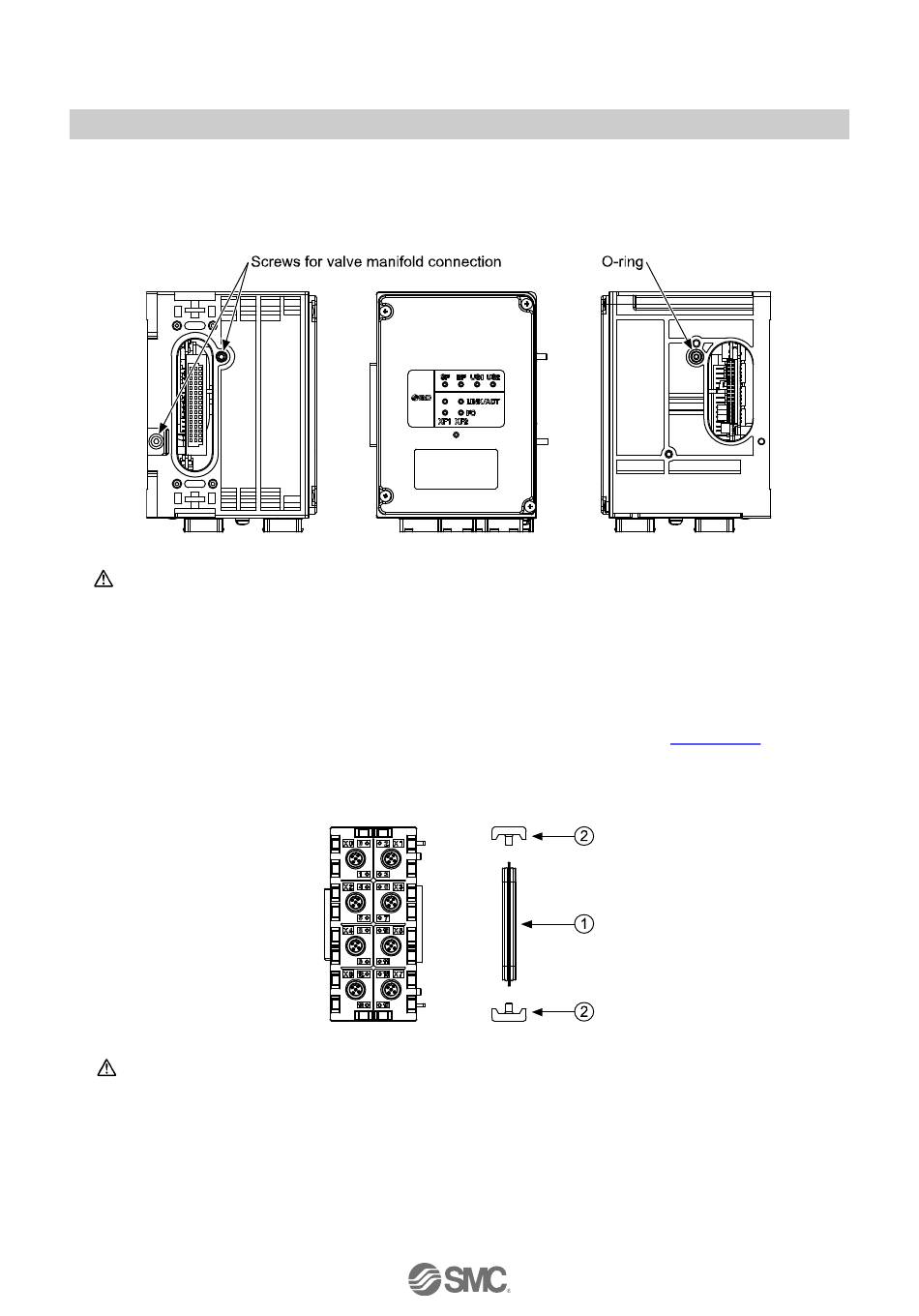

Fig. 3-2 Valve manifold connection
Fig. 3-3 Module connection
- 14 -
Section 10.4.
