3. Electrical Installation
Step 1: First, mount the earth cable.
Step 2: Connect wires to terminals either in
star or delta-connection. See motor name-
plate for further information.
3
For EMC correct installation, use optional de-
coupling plate, see chapter
Micro Drive FC 51

3.4. Control Terminals

3.4.1. Access to Control Terminals
All control cable terminals are located under-
neath the terminal cover in front of the fre-
quency converter. Remove the terminal cover
using a screwdriver.

3.4.2. Connecting to Control Terminals

This illustration shows all control terminals of the VLT Micro Drive. Applying Start (term. 18) and
an analog reference (term. 53 or 60) make the frequency converter run.
12
Options for VLT
.
NB!
See back of terminal cover for outlines of control terminals and switches.
MG.02.A2.02 - VLT
VLT Micro Drive FC 51 Operating Instructions

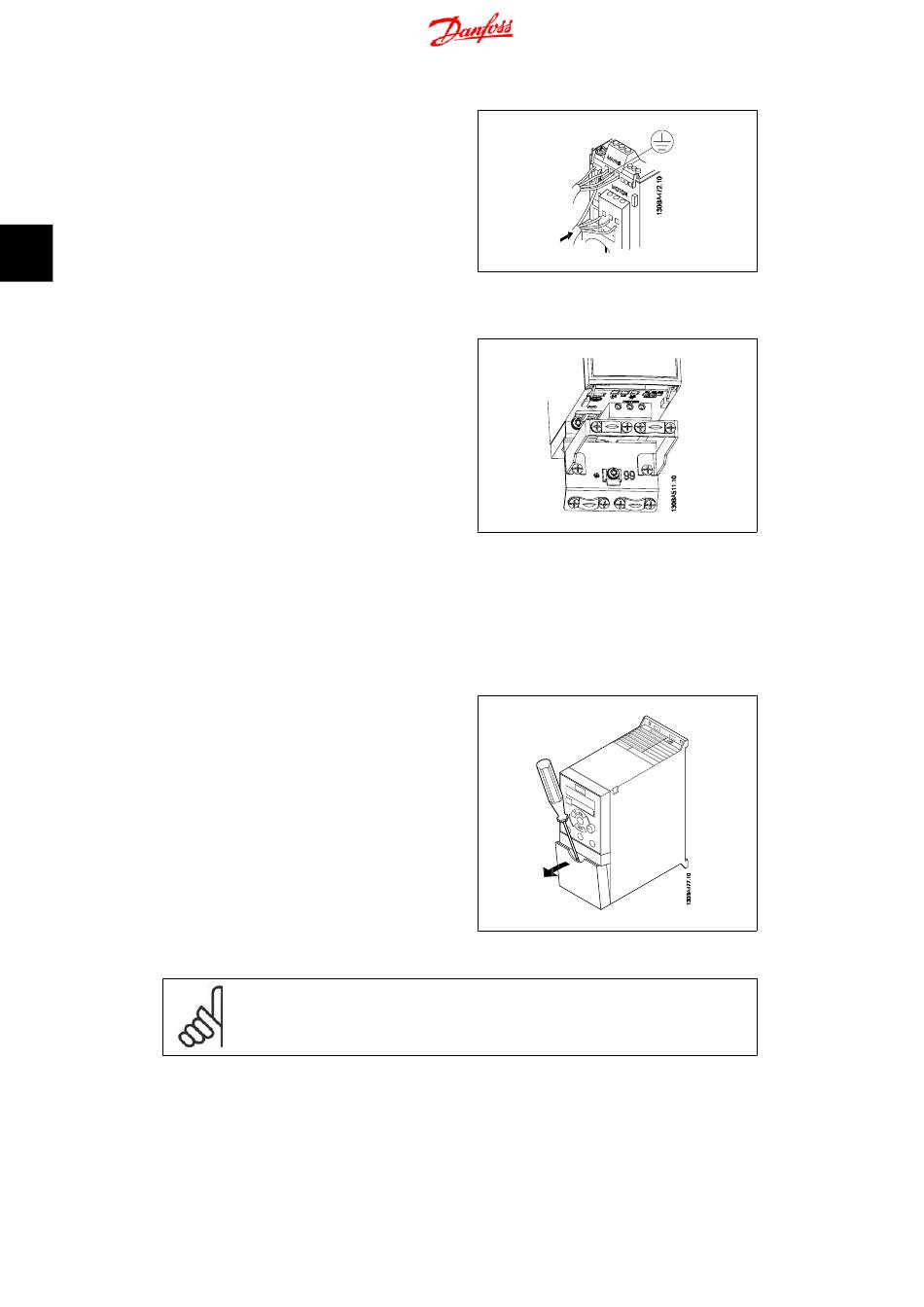

Illustration 3.4: Mounting of earth cable and motor
wires.
Illustration 3.5: VLT Micro Drive with de-coupling
plate
Illustration 3.6: Removing terminal cover.
