4. Programming
The small digits to the left are the selected
parameter number
The large digits in the middle of the display
4
show the
The right side of the display shows the
of the selected parameter. This can be either
Hz, A, V, kW, HP, %, s or RPM.
Motor direction
of the display - indicated by a small arrow
pointing either clockwise or counterclockwise.
Use the [MENU] key to select one of the following menus:
Status Menu:
The Status Menu is either in
currently selected readout parameter is shown in the display.
Hand on Mode
In
Quick Menu:
Displays Quick Menu parameters and their settings. Parameters in the Quick Menu can be accessed
and edited from here. Most applications can be run by setting the parameters in the Quick Menus.
Main Menu:
Displays Main Menu parameters and their settings. All parameters can be accessed and edited
here. A parameter overview is found later in this chapter. For detailed information on program-
ming, please see
16
.
value of the selected parameter.
is shown to the bottom left
Readout Mode
the local LCP reference is displayed.
Programming Guide , MG02CXYY.
MG.02.A2.02 - VLT
VLT Micro Drive FC 51 Operating Instructions

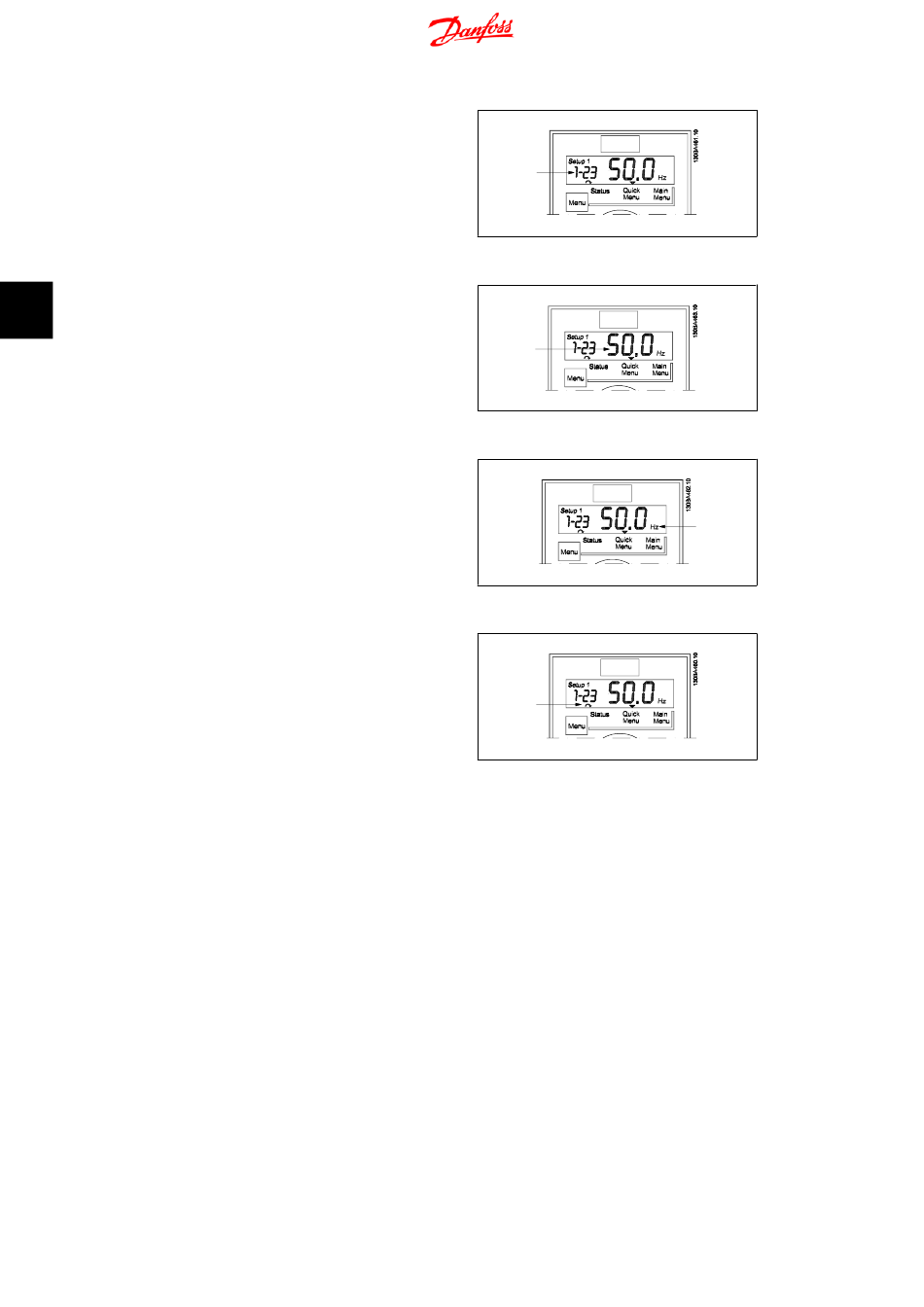

Illustration 4.4: Indicating selected par. no.
Illustration 4.5: Indicating value of selected par.
unit
Illustration 4.6: Indicating unit of selected par.
Illustration 4.7: Indicating motor direction
Hand on Mode Readout Mode
or . In
