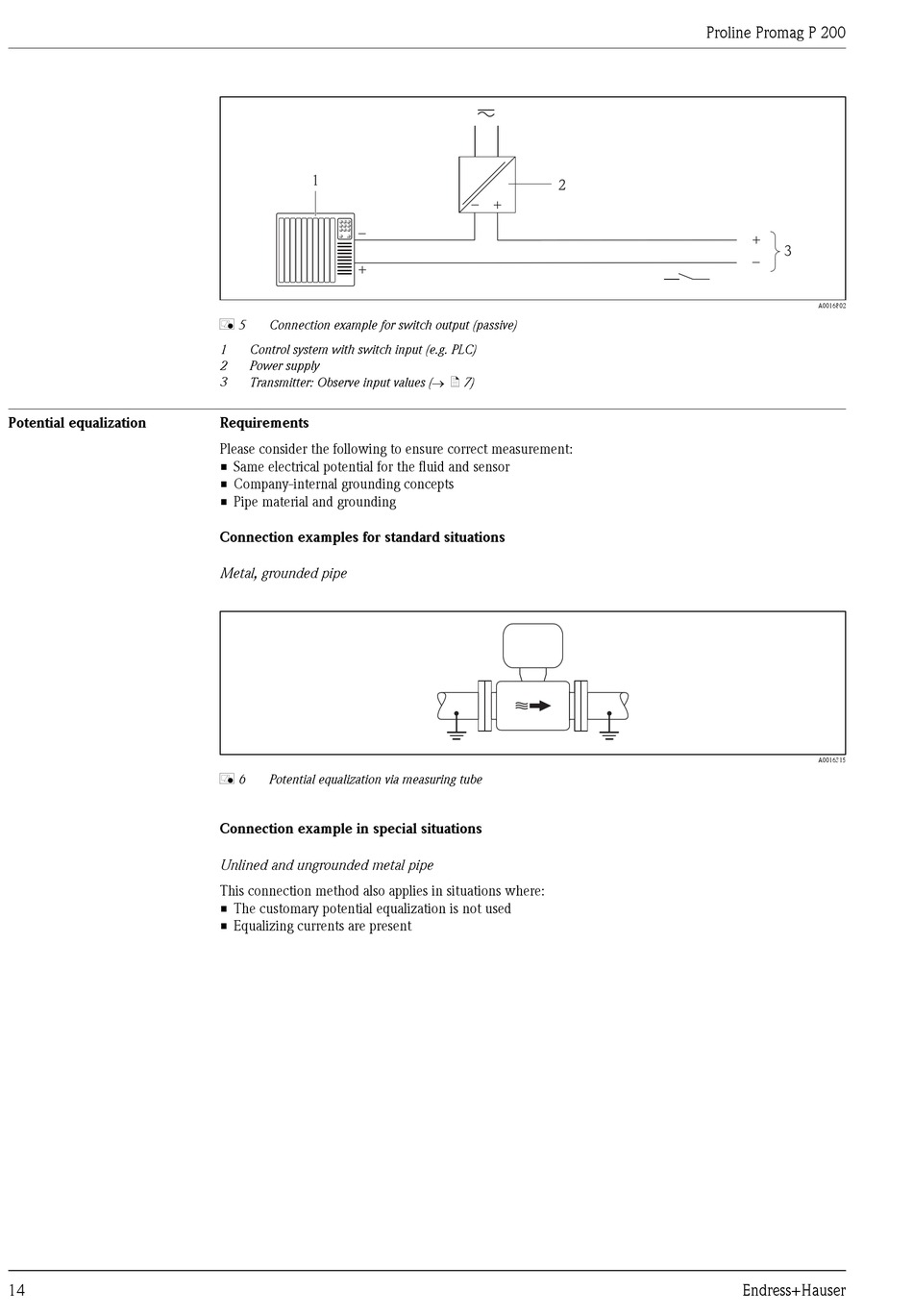

Potential equalization

14
1
_
+
å 5 Connection example for switch output (passive)
1 Control system with switch input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values (® ä 7)
Requirements
Please consider the following to ensure correct measurement:
• Same electrical potential for the fluid and sensor
• Company-internal grounding concepts
• Pipe material and grounding
Connection examples for standard situations
Metal, grounded pipe
å 6 Potential equalization via measuring tube
Connection example in special situations
Unlined and ungrounded metal pipe
This connection method also applies in situations where:
• The customary potential equalization is not used
• Equalizing currents are present
2
_
+
Proline Promag P 200
+
3
_
A0016802
A0016315
