Proline Promag P 200
Remote operation
Endress+Hauser
Via HART protocol
3
2
1
å 19

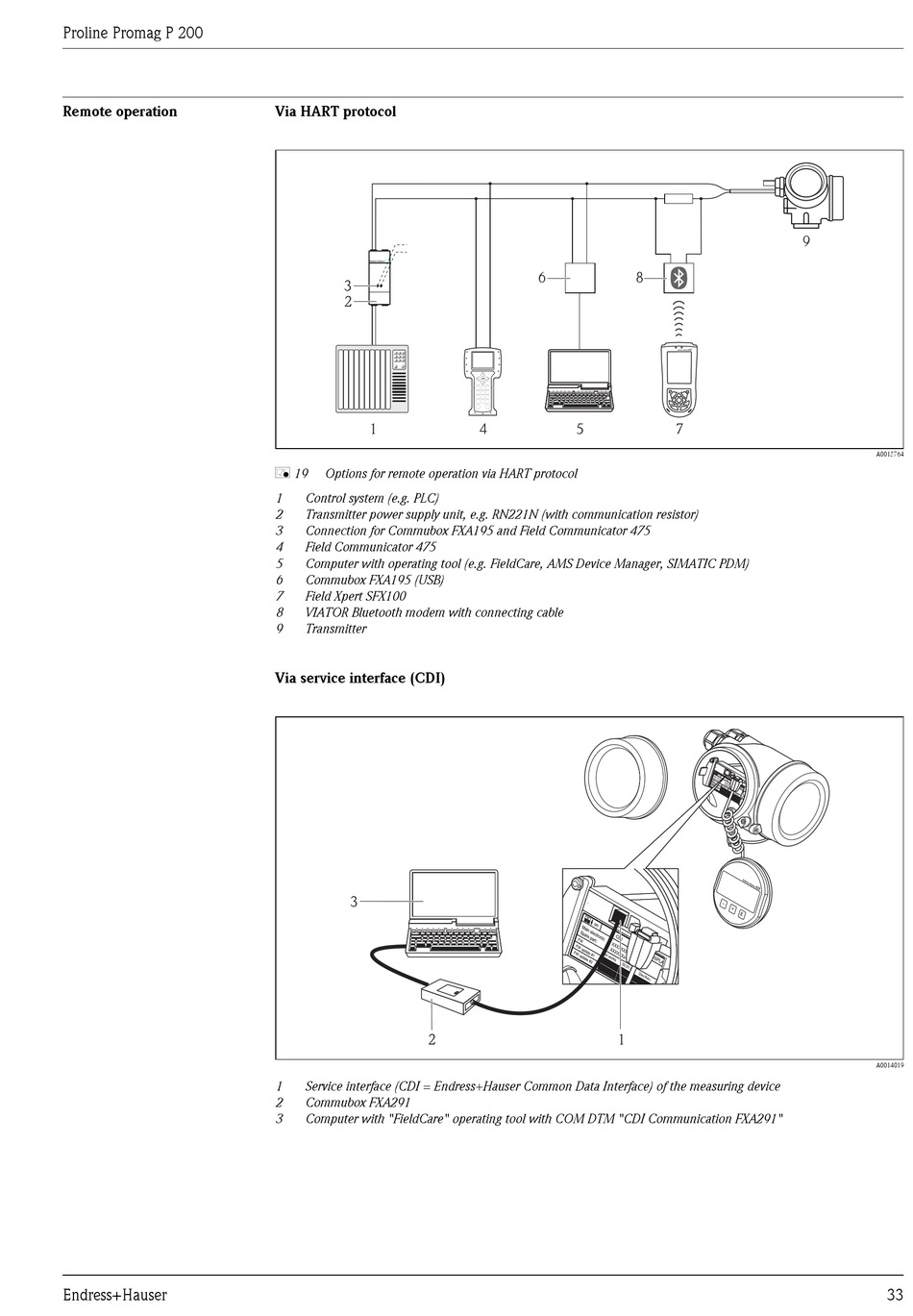

Options for remote operation via HART protocol
1
Control system (e.g. PLC)
2
Transmitter power supply unit, e.g. RN221N (with communication resistor)
3
Connection for Commubox FXA195 and Field Communicator 475
4
Field Communicator 475
5
Computer with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM)
6
Commubox FXA195 (USB)
7
Field Xpert SFX100
8
VIATOR Bluetooth modem with connecting cable
9
Transmitter
Via service interface (CDI)
3
2
1
Service interface (CDI = Endress+Hauser Common Data Interface) of the measuring device
2
Commubox FXA291
3
Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291"
6
8
4
5
1
9
7
A0013764
A0014019
