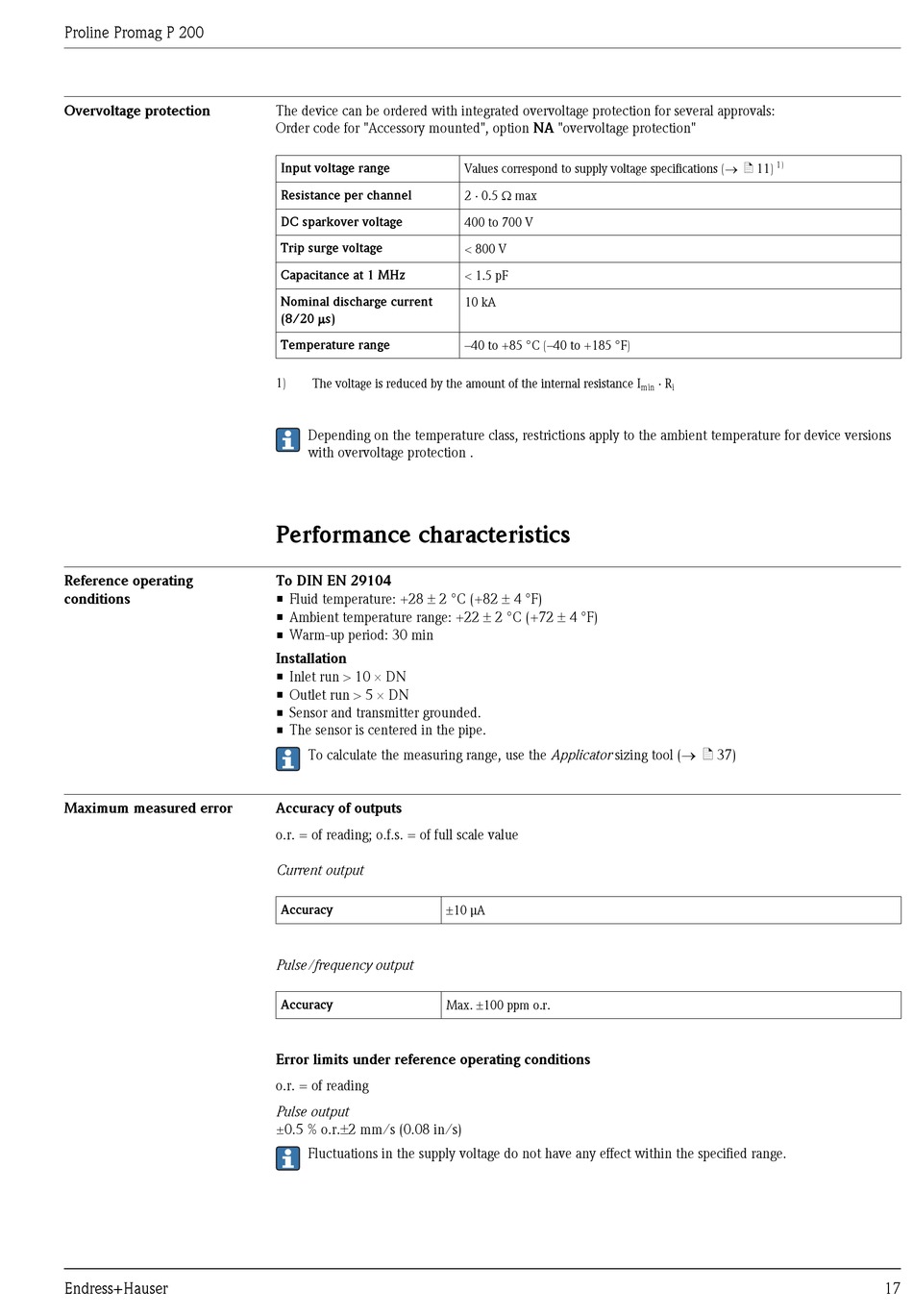

Proline Promag P 200

Overvoltage protection

Reference operating
conditions

Maximum measured error

Endress+Hauser
The device can be ordered with integrated overvoltage protection for several approvals:
Order code for "Accessory mounted", option NA "overvoltage protection"
Input voltage range
Resistance per channel
DC sparkover voltage
Trip surge voltage
Capacitance at 1 MHz
Nominal discharge current
(8/20 ms)
Temperature range
1)
The voltage is reduced by the amount of the internal resistance I
Depending on the temperature class, restrictions apply to the ambient temperature for device versions
with overvoltage protection .

Performance characteristics

To DIN EN 29104
• Fluid temperature: +28 ± 2 °C (+82 ± 4 °F)
• Ambient temperature range: +22 ± 2 °C (+72 ± 4 °F)
• Warm-up period: 30 min
Installation
• Inlet run > 10 ´ DN
• Outlet run > 5 ´ DN
• Sensor and transmitter grounded.
• The sensor is centered in the pipe.
To calculate the measuring range, use the Applicator sizing tool (® ä 37)
Accuracy of outputs
o.r. = of reading; o.f.s. = of full scale value
Current output
Accuracy ±10 µA
Pulse/frequency output
Accuracy Max. ±100 ppm o.r.
Error limits under reference operating conditions
o.r. = of reading
Pulse output
±0.5 % o.r.±2 mm/s (0.08 in/s)
Fluctuations in the supply voltage do not have any effect within the specified range.
Values correspond to supply voltage specifications (® ä 11)
2 × 0.5 W max
400 to 700 V
< 800 V
< 1.5 pF
10 kA
–40 to +85 °C (–40 to +185 °F)
1)
× R
min i
