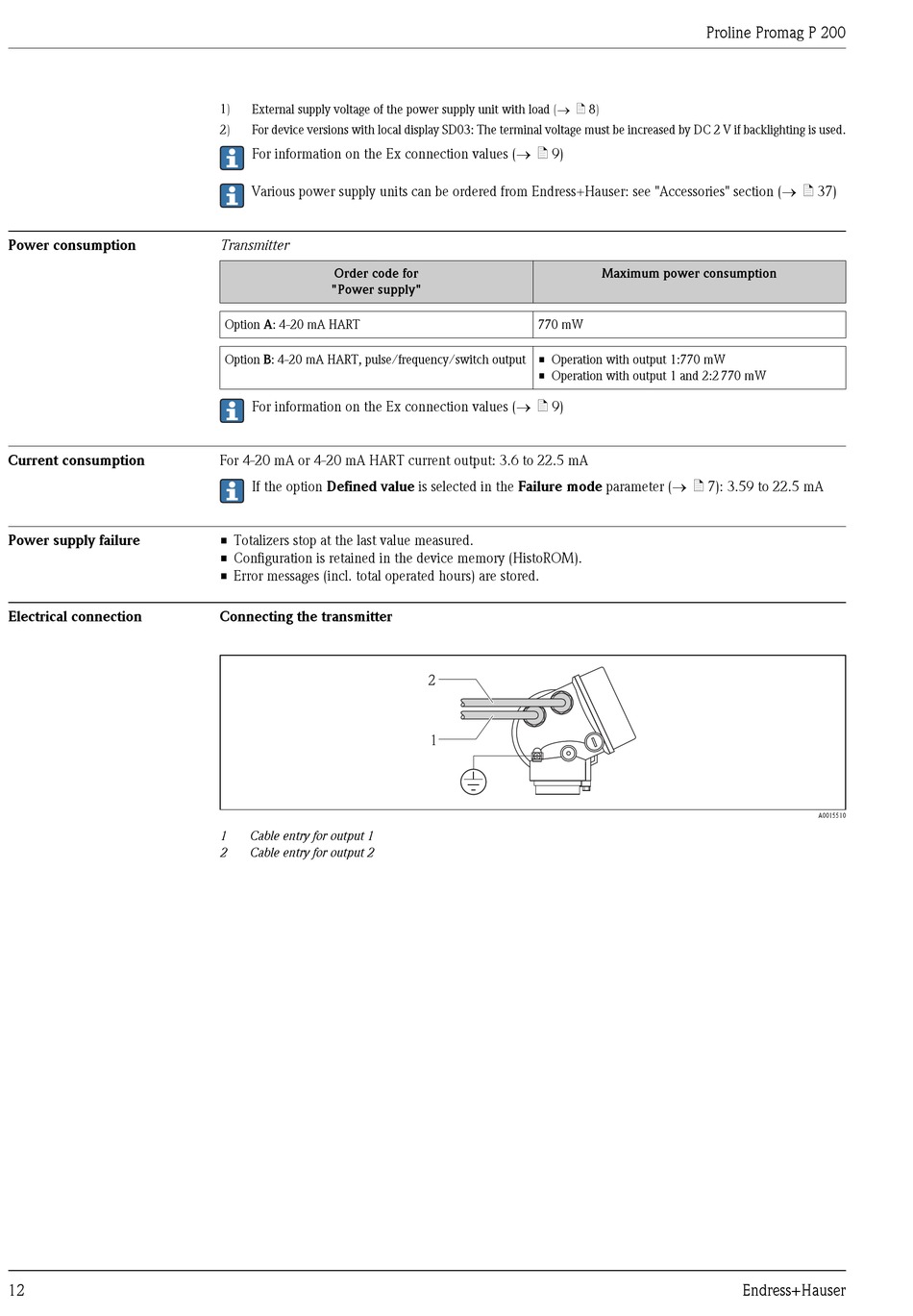

Power Consumption; Current Consumption; Power Supply Failure; Electrical Connection - Endress+Hauser Proline Promag P 200 Technical Information

Power consumption

Current consumption

Power supply failure

Electrical connection

12
1)
External supply voltage of the power supply unit with load (® ä 8)
2) For device versions with local display SD03: The terminal voltage must be increased by DC 2 V if backlighting is used.
For information on the Ex connection values (® ä 9)
Various power supply units can be ordered from Endress+Hauser: see "Accessories" section (® ä 37)
Transmitter
Order code for
"Power supply"
Option A: 4-20 mA HART
Option B: 4-20 mA HART, pulse/frequency/switch output • Operation with output 1:770 mW
For information on the Ex connection values (® ä 9)
For 4-20 mA or 4-20 mA HART current output: 3.6 to 22.5 mA
If the option Defined value is selected in the Failure mode parameter (® ä 7): 3.59 to 22.5 mA
• Totalizers stop at the last value measured.
• Configuration is retained in the device memory (HistoROM).
• Error messages (incl. total operated hours) are stored.
Connecting the transmitter
1 Cable entry for output 1
2 Cable entry for output 2
770 mW
• Operation with output 1 and 2:2 770 mW
2
1
Proline Promag P 200
Maximum power consumption
Endress+Hauser
A0015510
