3. How to Install

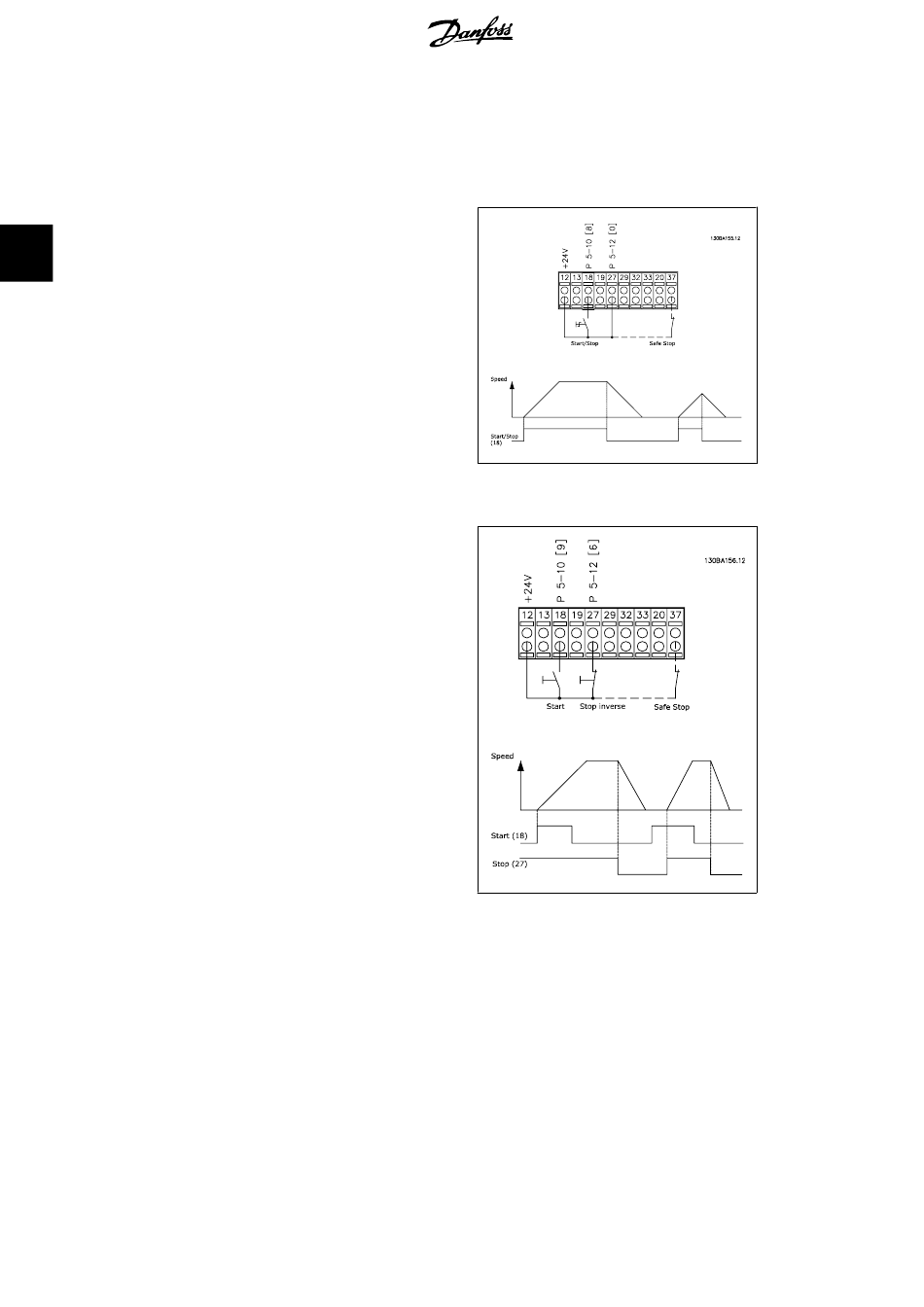

3.4. Connection Examples

3.4.1. Start/Stop

Terminal 18 = Par. 5-10 [8]
Terminal 27 = Par. 5-12 [0]
3
fault
Terminal 37 = Safe stop (where available!)

3.4.2. Pulse Start/Stop

Terminal 18 = Par. 5-10 [9]
Terminal 27= Par. 5-12 [6]
Terminal 37 = Safe stop (where available!)
30
Start
No operation
coast inverse )
Latched start
Stop inverse
