Using IntelliLINK to Locate Problems

Operation
Information
1011-550
The IntelliLINK software Operation and Product Information screens can help you
check the status of the control device and locate the causes for several types of prob-
lems.
The IntelliLINK software Operation screen (Figure 1) displays the present status of the
control device setpoint values and line-to-ground voltages.
To display the Operation screen:
Connect your computer to the control device, then double-click the IntelliLINK icon to
start the IntelliLINK software (for more details, see To Start the IntelliLINK Software
in the Setup Instruction Sheet 1011-530).
If the IntelliLINK software is already started, click the Operation button from any
screen.

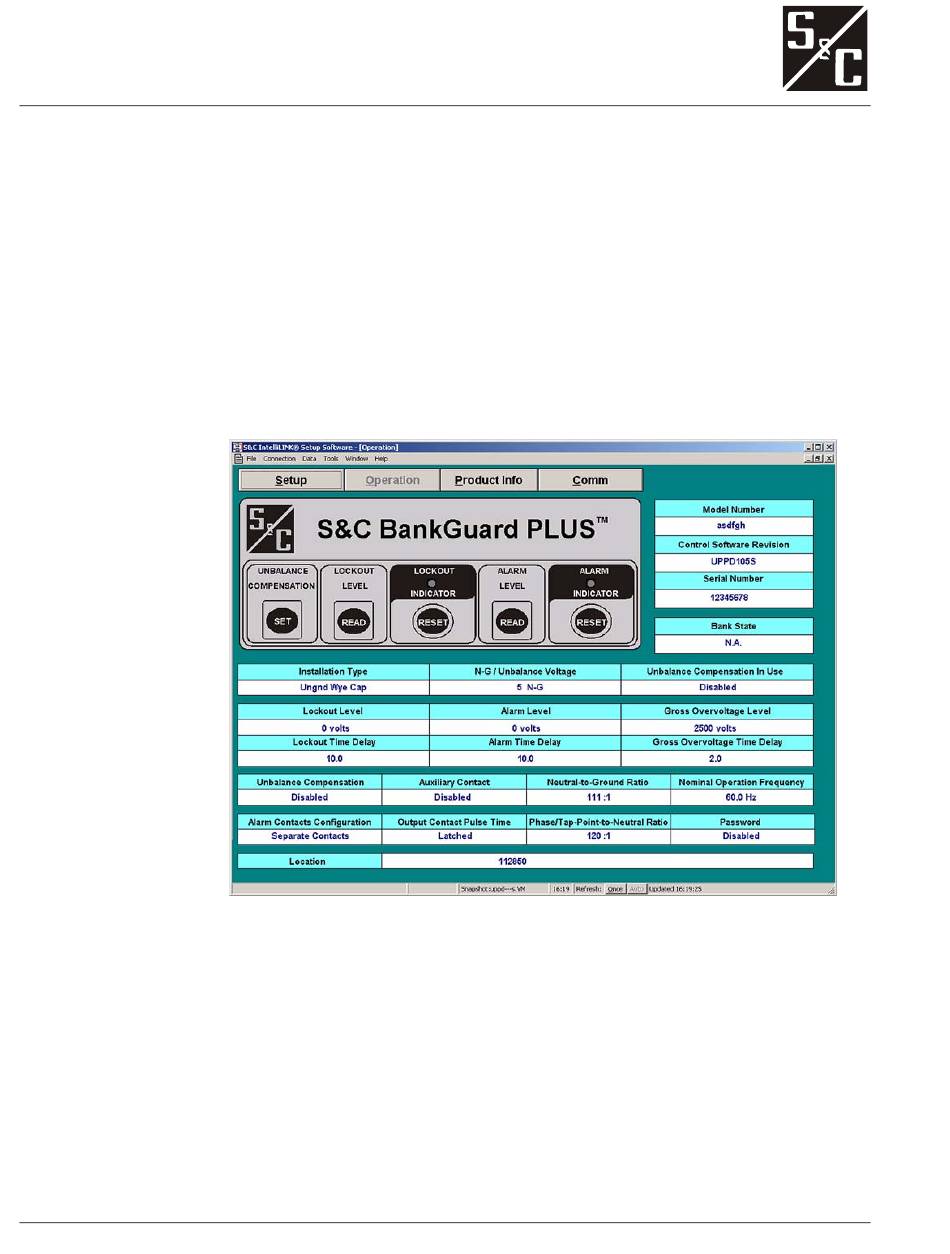

Figure 1. Operation Screen
This screen includes the following fields:
Lockout Indicator LED and button
If this "LED" is ON, the control device has locked out the bank/reactor (based on the
"Lockout Level" and "Lockout Time Delay" setpoints). To clear the LED and the lock-
out, click the LOCKOUT INDICATOR RESET button. Click OK.
NOTE: If the conditions that led to the lockout are still present, the control device will
lock out the bank/reactor again after the "Lockout Time Delay" has elapsed.
