S&C TripSaver® II Controller
TripSaver II Controller Module User Guide
Table of Contents
Section
Contents of Controller Module . . . . . . . . . . . . . . . . . . . . 3
July 21, 2014© S&C Electric Company
Page
Section
. . . . . . . . . . 2
Download Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Install Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Launch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Instruction Sheet 461-506
Page
. . . . . . 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TripSaver II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for S&C TripSaver II

Summary of Contents for S&C TripSaver II

  • Page 1 Launch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Connect to a TripSaver II Controller Module .

  • Page 2: Regulatory Information For Fcc And Ic

    Regulatory Information for FCC and IC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference This device complies with Industry Canada licence-exempt RSS standard(s).

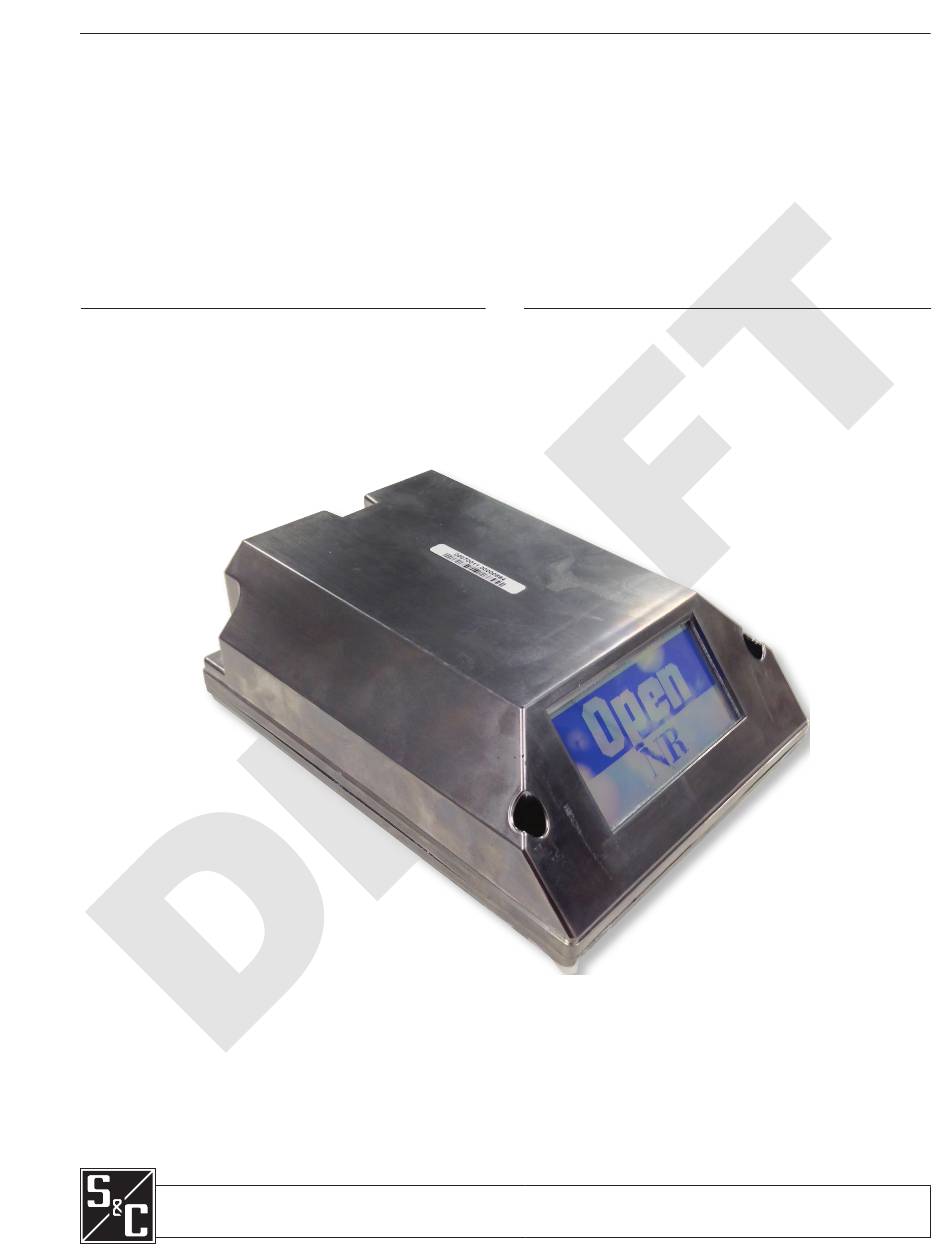

  • Page 3 Hardware Contents of TripSaver II Controller Module AC Adapter Power Outlet Plug Adapters USB Dongle Contoller Module This Manual S&C Instruction Sheet 461-506...
