Anybus Configuration Manager

5 Anybus Configuration Manager
5.1

Main Window

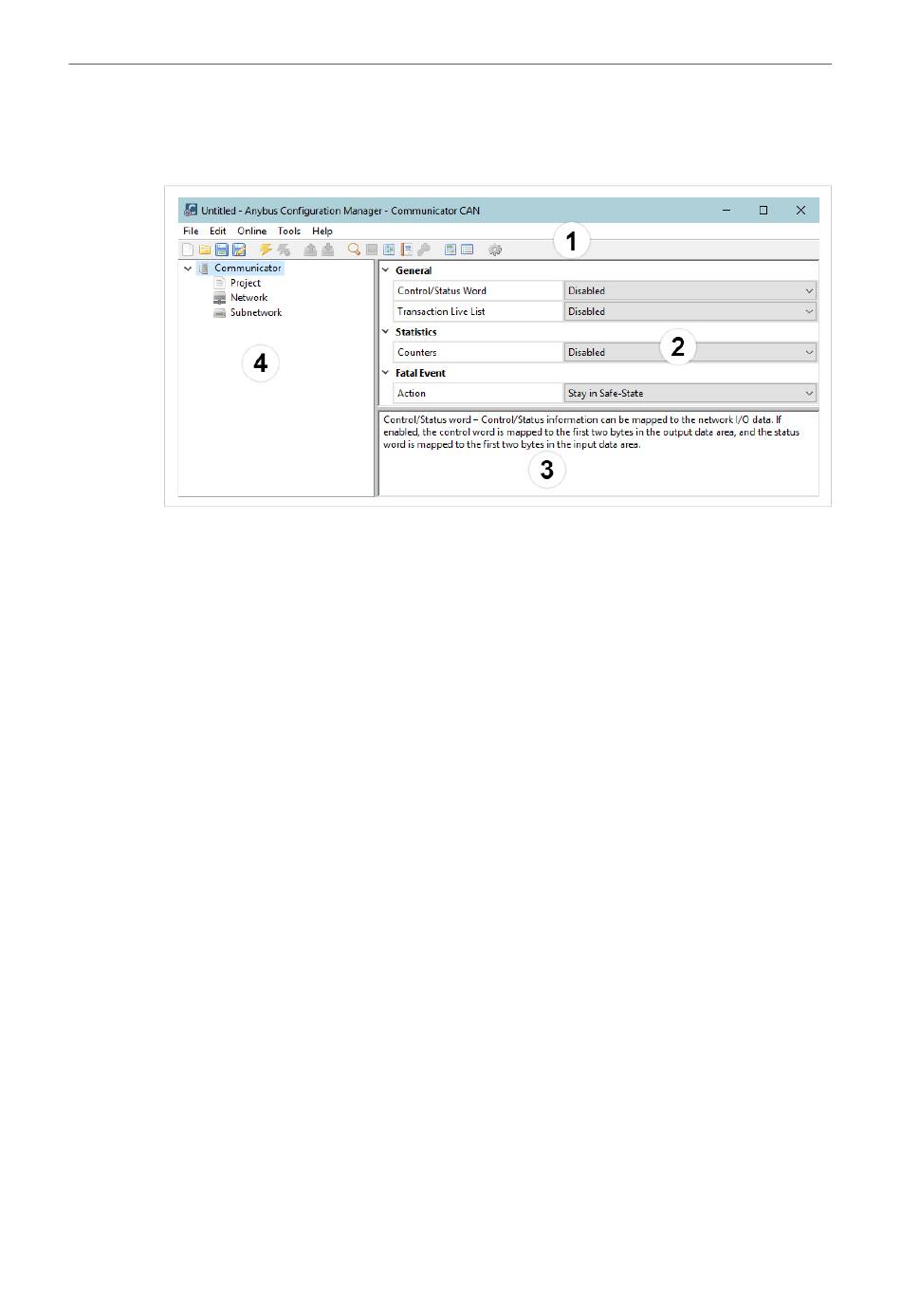

Fig. 19 Anybus Configuration Manager - Communicator CAN
1: Menus and Toolbar
The most common menu commands can also be carried out by clicking on a button in the toolbar.
Moving the mouse cursor over a toolbar button will display a tooltip explaining its function.
2: Parameter List
Lists the parameters or options related to the currently selected entry in the Navigation Tree.
Values can be selected from a dropdown menu or entered manually depending on the parameter.
Values can be specified in either decimal or hexadecimal format.
Example: The decimal value 42 can also be entered as 0x2A.
Moving the mouse cursor over a parameter in this window will show a help text in the
Information Window explaining how to use the parameter.
3: Information Window
Displays a help text describing the current parameter.
4: Navigation Tree
A hierarchic tree view of the configuration, divided into three main sections:
Project
Network
Subnetwork
Select an entry to display its available parameters in the Parameter List. Right-click on the entry
to show additional options.
Anybus ® Communicator ™ CAN PROFINET
Information about the current configuration project
Settings for the higher level network
Settings for the CAN subnetwork
