PROFINET Asset Management

6.6.5

Asset Management Binary File Example

The binary file structure example presented below can be used as a guide when creating the

asset management binary file.

Only instance 1 is supported.

For instance 1, only attribute 1 and 2 are defined.

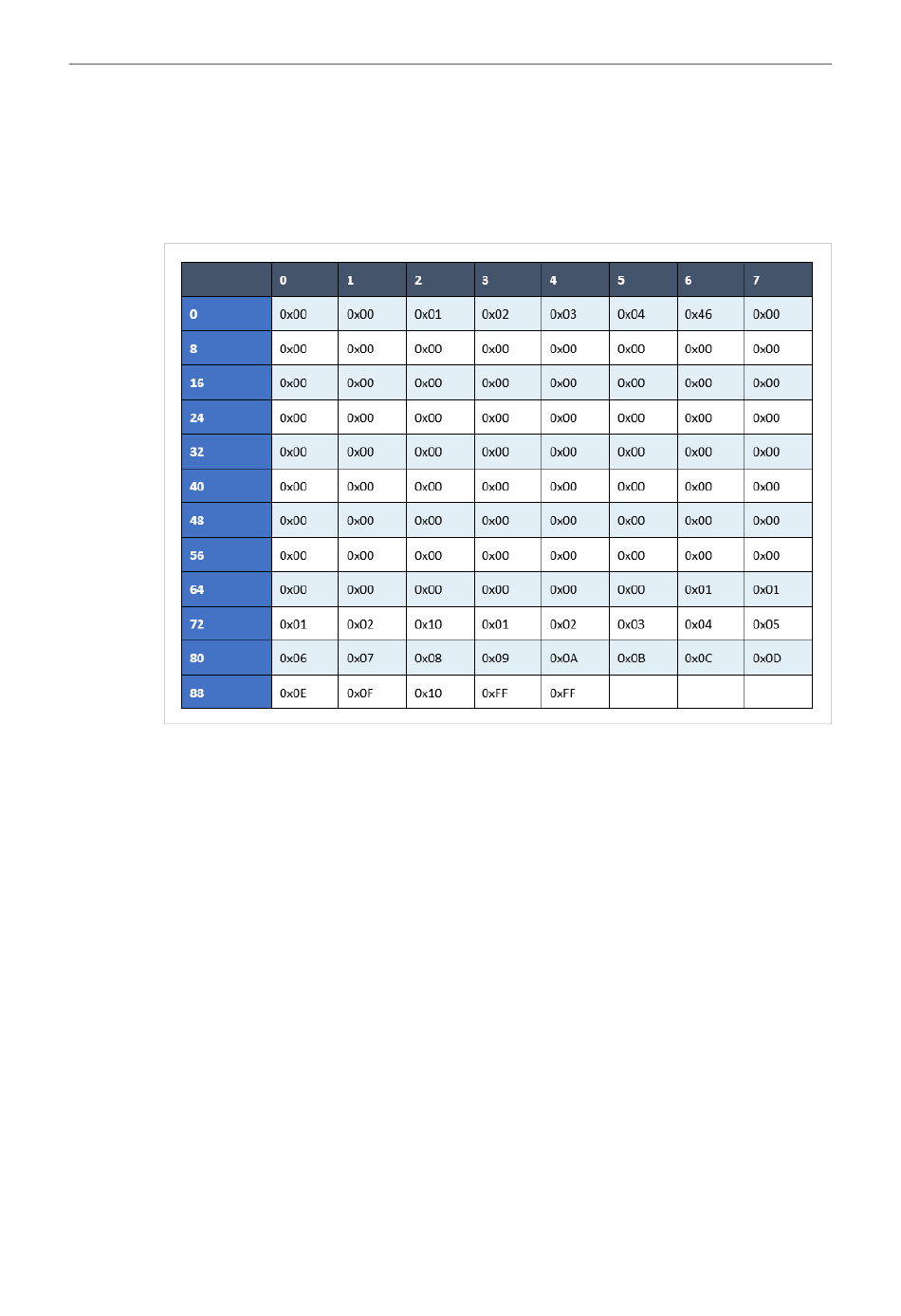

Fig. 22

Binary file example

Anybus

Communicator

™

CAN PROFINET

IRT (2.32) User Manual

35 (42)

SCM-1202-035 1.2 en-US
