Installation
3.2
Connectors and Indicators
3.2.1
External Parts

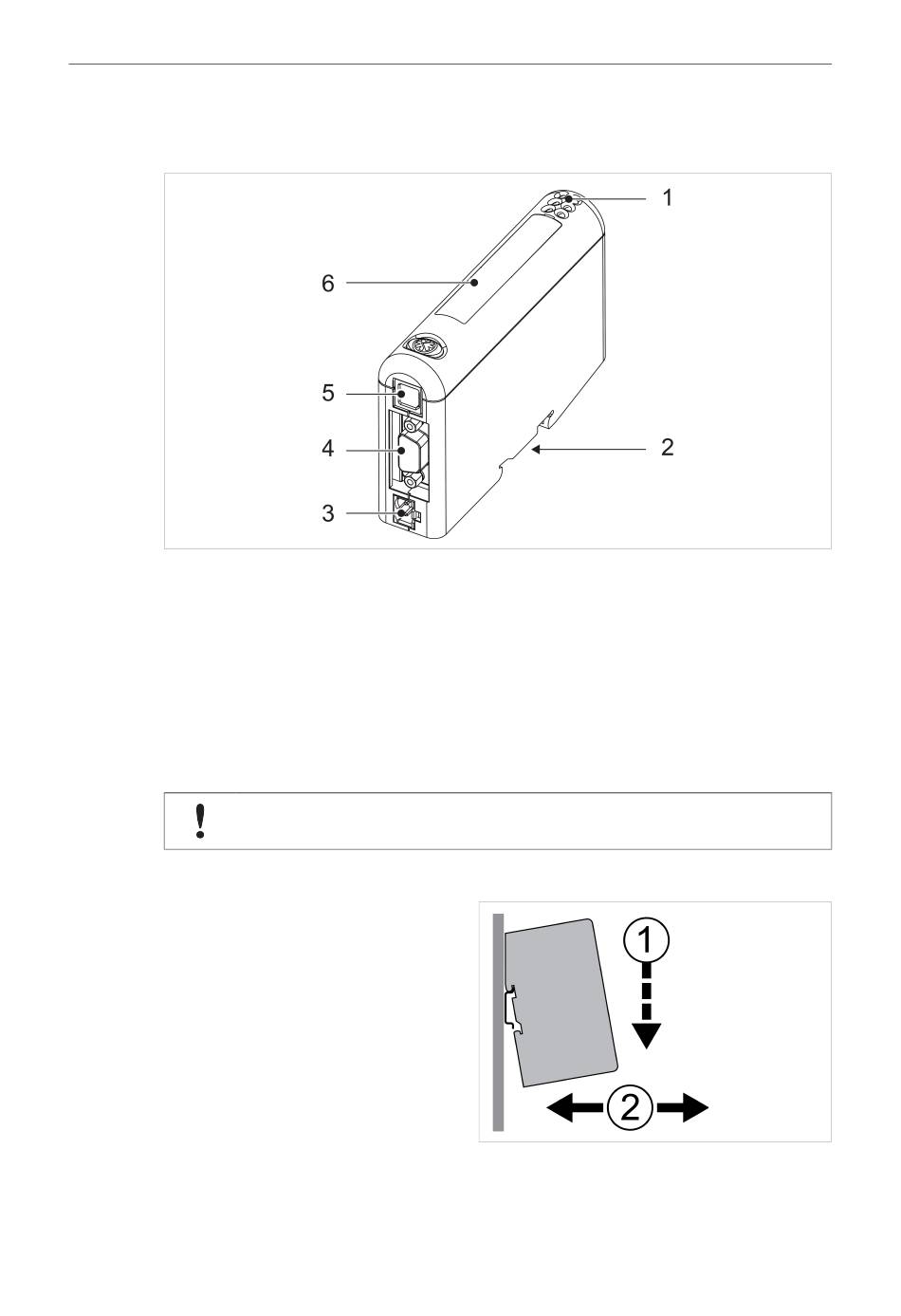

Fig. 7
Overview
1
LED indicators
2
DIN rail mount
3
Power connector
4
CAN connector
5
USB connector
6
PROFINET IRT network interface
3.3
DIN Rail Mounting
Mount on DIN rail
1.
Hook the unit onto the upper lip of
the rail and push gently downwards.
2.
Push the unit towards the rail until it
snaps into place.
Remove from DIN rail
1.
Push the unit gently downwards on the rail.
Anybus
®
Communicator
™
CAN PROFINET
The unit must be electrically grounded through the DIN rail for EMC compliance.
®
IRT (2.32) User Manual
Fig. 8
Push down to mount or remove
14 (42)
SCM-1202-035 1.2 en-US
