Connectors and Indicators

2.3.1 Overview

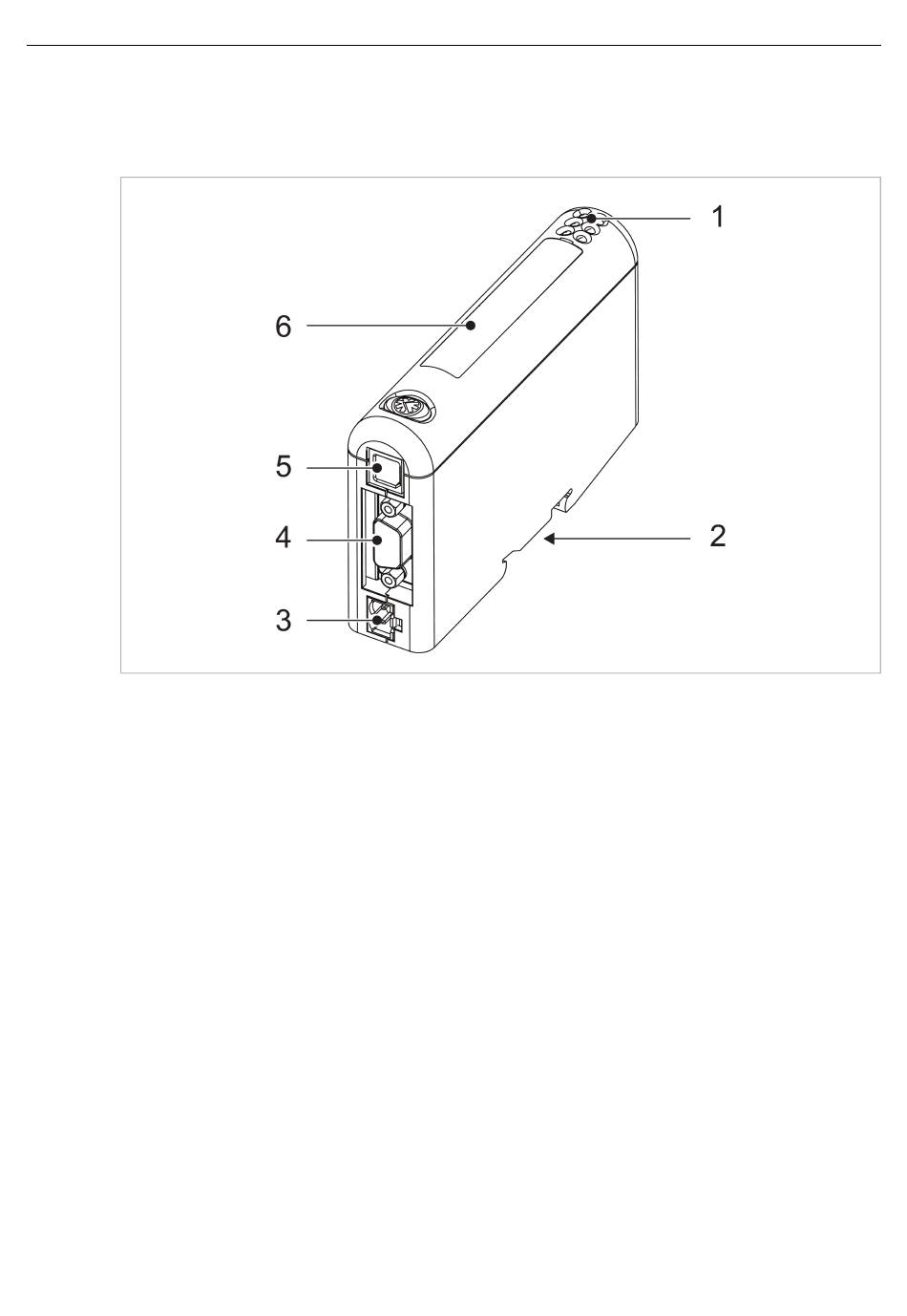

Fig. 2
1 LED indicators
2 DIN rail mount
3 Power connector
4 Serial subnetwork interface
5
PC connector
6 IIoT network interface
Anybus ® Communicator
Overview
