Figure 18. Hdc At 25 °C And Junction-Temperature-Dependent Dissipated Power For Stm32H7; Figure 19. Hdc At 85 °C And Junction-Temperature-Dependent Dissipated Power For Stm32H7 - ST STM32 Application Note

Figure 18.
Once the HDC of the design is defined (by measurement at 25 °C), and assuming that this HDC is constant at
25°C and 85 °C, the operating point of the design at 85 °C is given by translating the HDC at 85 °C as shown in
the figure and table below.
Figure 19.
AN5036 - Rev 3

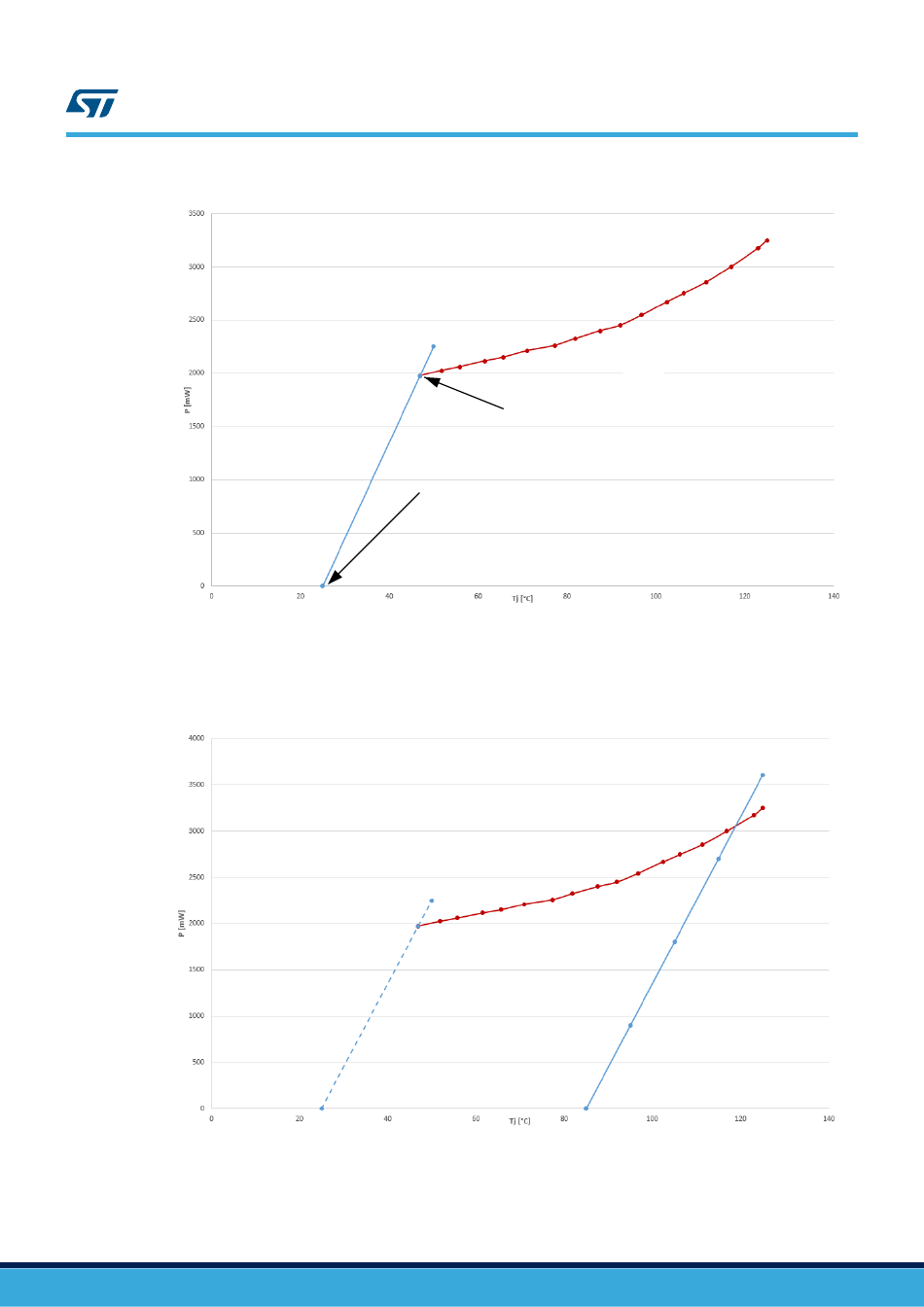

HDC at 25 °C and junction-temperature-dependent dissipated power for STM32H7
HDC
at Tamb = 25 °C
For P = 0 mW, Tj = Tamb = 25°C
HDC at 85 °C and junction-temperature-dependent dissipated power for STM32H7
HDC
at Tamb = 25 °C
Discovery kit with STM32H747XI MCU
Discovery kit
Operating point @Tamb = 25°C
(Ptot = 1975 mW, Tj = 46.9 °C)
(Ptot = 0 mw)
Discovery kit
AN5036
HDC
at Tamb = 85 °C
page 21/28
