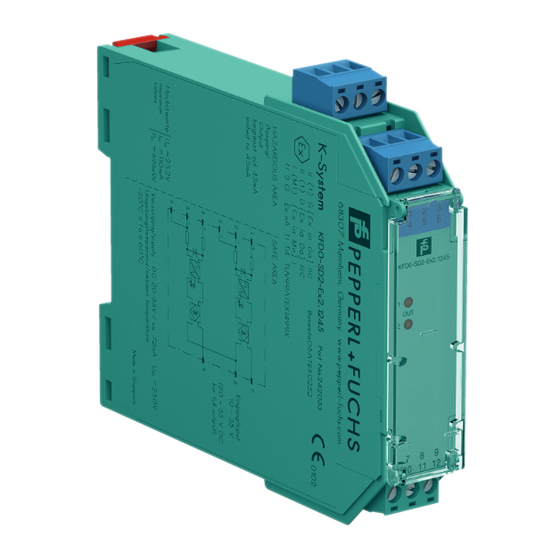

- Page 1 PROCESS AUTOMATION SAFETY MANUAL SIL SOLENOID DRIVER KFD0-SD2-(Ex)*.*****, KCD0-SD-(Ex)1.****(.SP), HiC2871 ISO9001...
- Page 2 SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...
-
Page 3: Table Of Contents
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Contents 1 Introduction................. 4 General Information ..................4 Intended Use ....................5 Manufacturer Information ................5 Relevant Standards and Directives ...............5 2 Planning ................6 System Structure...................6 2.1.1 Low Demand Mode ..................6 2.1.2 High Demand Mode .................6 2.1.3 Safe Failure Fraction.................6 Assumptions ....................7 Safety Function and Safe State ..............8 Characteristic Safety Values .................9... -
Page 4: Introduction
(causing disturbances or impairment of safety functions) may cause damage to property, environment or persons for which Pepperl+Fuchs GmbH will not be liable. The devices are developed, manufactured and tested according to the relevant safety standards. -
Page 5: Intended Use
".SP". The KFD0-SD2-(Ex)*.***** and KCD0-SD-(Ex)1.****(.SP) are single devices with DIN rail mounting while the HiC2871 is a plug-in device to be inserted into a specific Termination Board. Manufacturer Information Pepperl+Fuchs GmbH Lilienthalstrasse 200, 68307 Mannheim, Germany KFD0-SD2-(Ex)*.***** KCD0-SD-(Ex)1.****(.SP) HiC2871 Up to SIL3 The stars replace a combination of characters, depending on the product. -
Page 6: Planning
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Planning Planning System Structure 2.1.1 Low Demand Mode If there are two loops, one for the standard operation and another one for the functional safety, then usually the demand rate for the safety loop is assumed to be less than once per year. -
Page 7: Assumptions
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Planning Assumptions The following assumptions have been made during the FMEDA analysis: Failure rate based on the Siemens SN29500 data base. The stress levels are average for an industrial environment and can be compared to the Ground Fixed Classification of MIL-HNBK-217F. -
Page 8: Safety Function And Safe State
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Planning Safety Function and Safe State Safety Function The output is de-energized if the input is in low condition. Safe State The safety function is defined as the output is low/de-energized (safe state: 0 V, 0 mA). Reaction Time The reaction time (switch off delay) for all safety functions is <... -
Page 9: Characteristic Safety Values
Planning Characteristic Safety Values Parameters acc. to IEC 61508 Variables Assessment type and documentation Full assessment Pepperl+Fuchs FMEDA report P+F 05/07-10a R030 Device type Demand mode Low Demand Mode or High Demand Mode Safety function De-energized if the input is in low condition SIL (hardware) + λ... -
Page 10: Safety Recommendation
Experience has shown that the useful life time often lies within a range period of about 8 ... 12 years. Our experience has shown that the useful life time of a Pepperl+Fuchs product can be higher if there are no components with reduced life time in the safety path (like ... -
Page 11: Installation And Commissioning
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Safety Recommendation Installation and Commissioning Installation has to consider all aspects regarding the SIL level of the loop. During installation or replacement of the device the loop has to shut down. Devices have to be replaced by the same type of devices. -
Page 12: Proof Test
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Proof Test Proof Test Proof Test Procedure According to IEC 61508-2 a recurring proof test shall be undertaken to reveal potential dangerous failures that are otherwise not detected by diagnostic test. The functionality of the subsystem must be verified at periodic intervals depending on the applied PFD in accordance with the data provided in this manual. -
Page 13: Proof Test Procedure Kfd0-Sd2-(Ex)
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Proof Test 4.1.1 Proof Test Procedure KFD0-SD2-(Ex)*.***** Connect the module specific load resistor between the terminals 1+ and 2- (and terminals 4+ and 5- for 2-channel device). Connect the power supply set at nominal 20 V DC between terminals 7 and 8. ... -
Page 14: Proof Test Procedure Kcd0-Sd-(Ex)1.****(.Sp)
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Proof Test 4.1.2 Proof Test Procedure KCD0-SD-(Ex)1.****(.SP) Connect the module specific load resistor between the terminals 1+ and 2-. Connect the power supply set at nominal 20 V DC between terminals 5+ and 6-. Measure the output voltage via multimeter. -
Page 15: Proof Test Procedure Hic2871
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Proof Test 4.1.3 Proof Test Procedure HiC2871 Connect the module specific load resistor between the terminals 1+ and 4-. Connect the power supply set at nominal 20 V DC between terminals 11+ and 14-. Measure the output voltage via multimeter. -
Page 16: Abbreviations
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Abbreviations Abbreviations Failure In Time FMEDA Failure Mode, Effects and Diagnostics Analysis Probability of safe failure λ Probability of dangerous detected failure λ Probability of dangerous undetected failure λ Probability of failures of components in the safety path that have λ... - Page 17 SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Notes...
- Page 18 SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Notes...
- Page 19 SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871 Notes...
- Page 20 PROCESS AUTOMATION – PROTECTING YOUR PROCESS Worldwide Headquarters Pepperl+Fuchs GmbH 68307 Mannheim · Germany Tel. +49 621 776-0 E-mail: info@de.pepperl-fuchs.com For the Pepperl+Fuchs representative closest to you check www.pepperl-fuchs.com/pfcontact www.pepperl-fuchs.com 221278 TDOCT-1906AENG Subject to modifications 02/2012 Copyright PEPPERL+FUCHS • Printed in Germany...
